Request a Quote It's Fast. It's Friendly. It's Free.

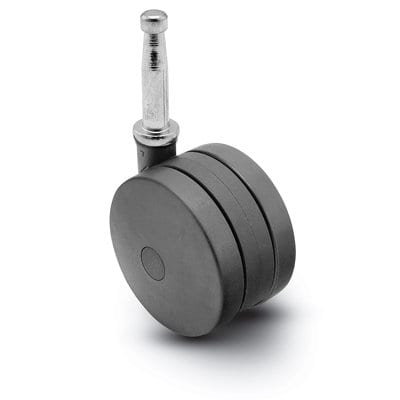

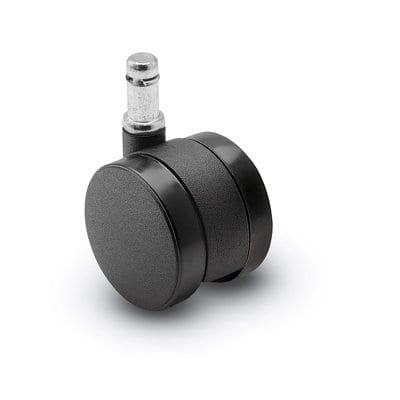

Unhooded Twin Wheel Grip Ring and Grip Neck Stem Models
- Choice of nylon or urethane wheel
- Riveted axle for positive wheel retention on all except for 50mm and 60mm nylon models
Features
- Medical Equipment
- Utility Carts
- Furniture
- Store Fixtures
- Office Equipment
Applications
- Fastenings: Threaded Stems, Grip Neck Stems, Grip Ring Stems and Top Plates

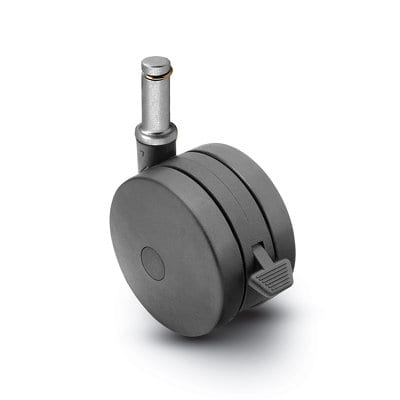

- Brakes: Available for all models
Options
| Wheel Diameter | Tread Material | Finish | Dynamic Load | Mounting Height | Swivel Radius | Part Number |
|---|---|---|---|---|---|---|
| 50mm | Nylon | Black | 75 | 2-1/4" | 1-13/16" | PUT50302BK PUT50223BK PUT50211BK PUT50273BK |
| 50mm | Urethane | Black | 75 | 2-1/4" | 1-13/16" | PUT50302BK-U PUT50223BK-U PUT50211BK-U PUT50273BK-U |
| 60mm | Nylon | Black | 100 | 2-5/8" | 2-1/16" | PUT60302BK PUT60223BK PUT60211BK PUT60273BK |
| 60mm | Urethane | Black | 100 | 2-5/8" | 2-1/16" | PUT60302BK-U PUT60223BK-U PUT60211BK-U PUT60273BK-U |
| 75mm | Nylon | Black | 165 | 3-1/4" | 2-1/2" | PUT75302BK PUT75223BK PUT75211BK PUT75291BK PUT75242BK |
| 75mm | Urethane | Black | 165 | 3-1/4" | 2-1/2" | PUT75302BK-U PUT75223BK-U PUT75211BK-U PUT75291BK-U PUT75242BK-U |
| 100mm | Nylon | Black | 175 | 4-3/8" | 3-5/8" | PUT100223BK PUT100291BK PUT100211BK |
| 100mm | Urethane | Black | 175 | 4-3/8" | 3-5/8" | PUT100223BK-U PUT100291BK-U PUT100211BK-U |
| 125mm | Nylon | Black | 180 | 5-7/16" | 4-1/2" | PUT125291BK PUT125211BK |
| 125mm | Urethane | Black | 180 | 5-7/16" | 4-1/2" | PUT125291BK-U PUT125211BK-U |
