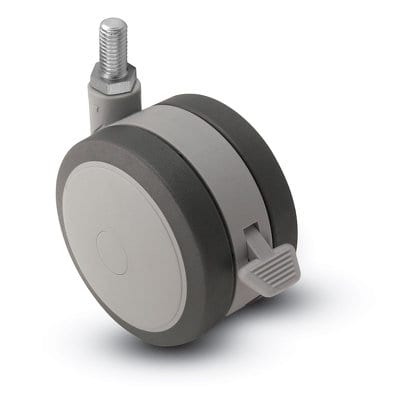

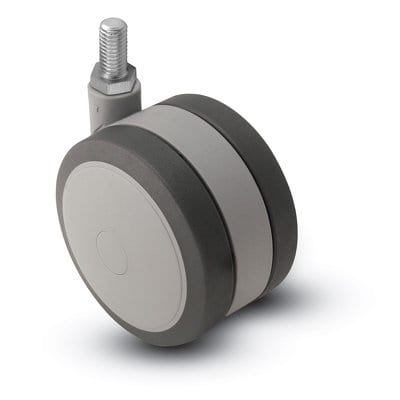

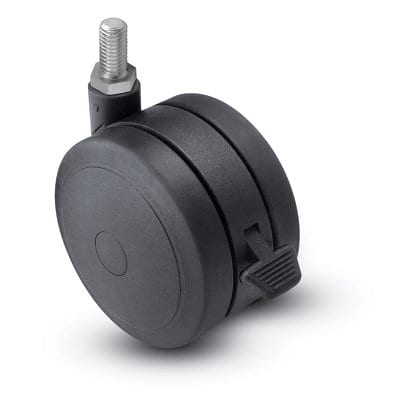

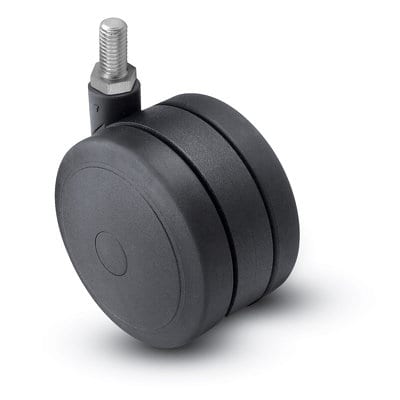

Softech Unhooded Soft Tread Twin Wheel Threaded Stem Models
- Soft 70-75/A durometer tread constructed of high-tech thermoplastic elastomer
- High load ratings
- Quiet mobility
- Riveted axle for positive wheel retention
- Floor protective and non-marking
Features
- Store Fixtures
- Electronic Equipment
- Audio/Visual Equipment
- Furniture
- Medical Equipment
Applications

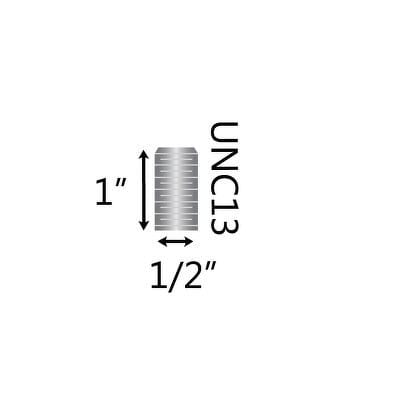

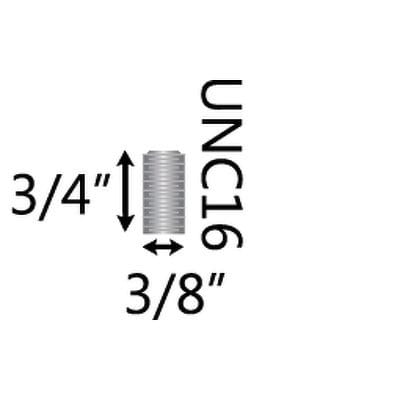

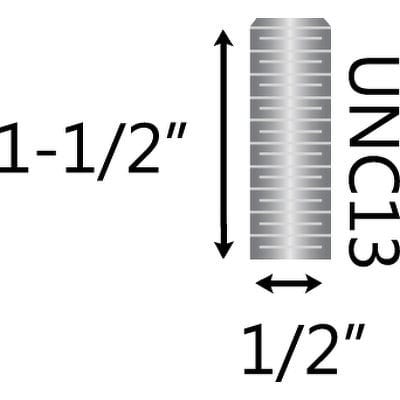

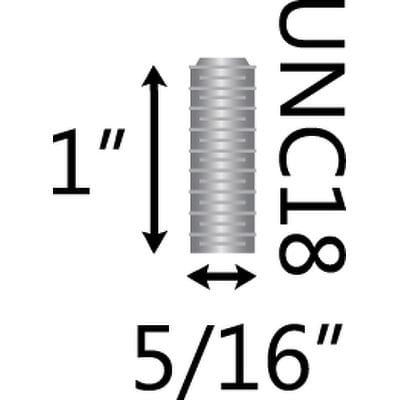

- Fastenings: Threaded Stems, Grip Neck Stems, Grip Ring Stems and Top Plates
- Brakes: Available for all models
- Finishes: Black, Grey
Options
| Wheel Diameter | Tread Material | Finish | Dynamic Load | Mounting Height | Swivel Radius | Part Number |
|---|---|---|---|---|---|---|
| 50mm | Thermoplastic Elastomer | Black | 75 | 2-1/4" | 1-13/16" | PUT50507BK PUT50637BK PUT50634BK |
| 50mm | Thermoplastic Elastomer | Grey on Grey | 75 | 2-1/4" | 1-13/16" | PUT50507GR PUT50637GR PUT50634GR |
| 60mm | Thermoplastic Elastomer | Black | 100 | 2-5/8" | 2-1/16" | PUT60507BK PUT60637BK PUT60634BK |
| 60mm | Thermoplastic Elastomer | Grey on Grey | 100 | 2-5/8" | 2-1/16" | PUT60507GR PUT60637GR PUT60634GR |
| 75mm | Thermoplastic Elastomer | Black | 165 | 3-1/4" | 2-1/2" | PUT75507BK PUT75637BK PUT75634BK PUT75741BK PUT75748BK |
| 75mm | Thermoplastic Elastomer | Grey on Grey | 165 | 3-1/4" | 2-1/2" | PUT75507GR PUT75637GR PUT75634GR PUT75741GR PUT75748GR |
| 100mm | Thermoplastic Elastomer | Black | 175 | 4-3/8" | 3-5/8" | PUT100637BK PUT100634BK PUT100741BK PUT100748BK |
| 100mm | Thermoplastic Elastomer | Grey on Grey | 175 | 4-3/8" | 3-5/8" | PUT100637GR PUT100634GR PUT100741GR PUT100748GR |
| 125mm | Thermoplastic Elastomer | Black | 180 | 5-7/16" | 4-1/2" | PUT125741BK PUT125748BK |
| 125mm | Thermoplastic Elastomer | Grey on Grey | 180 | 5-7/16" | 4-1/2" | PUT125741GR PUT125748GR |
