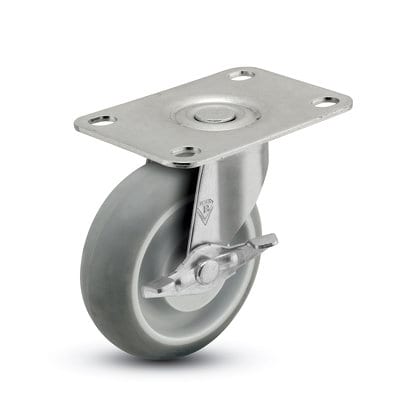

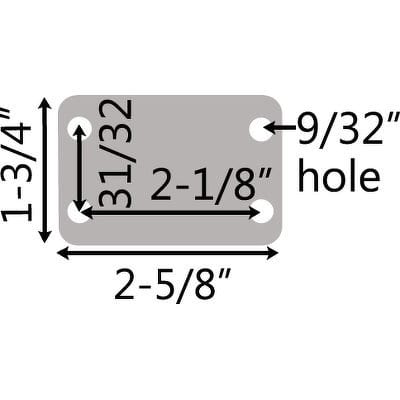

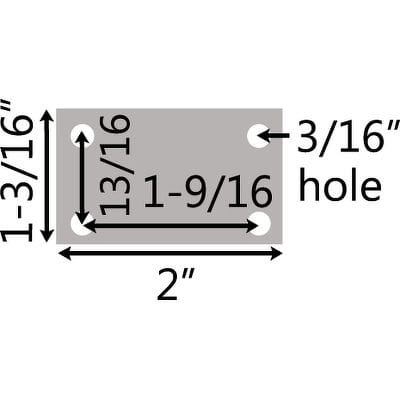

Regent Swivel Top Plate Models
- Zinc Finish
- Double ball Bearing Raceways
- Octagon Washer on Threaded Steam
- Heat Treated raceways for increased wear and resistance
- NSF Approved Less Thread Guards
- RoHS Compliant
Features
- Fixtures
- Carts
- Institutional Equipment
- Medical Equipment
- Furniture
Applications

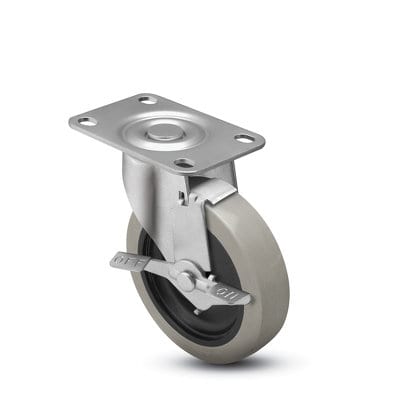

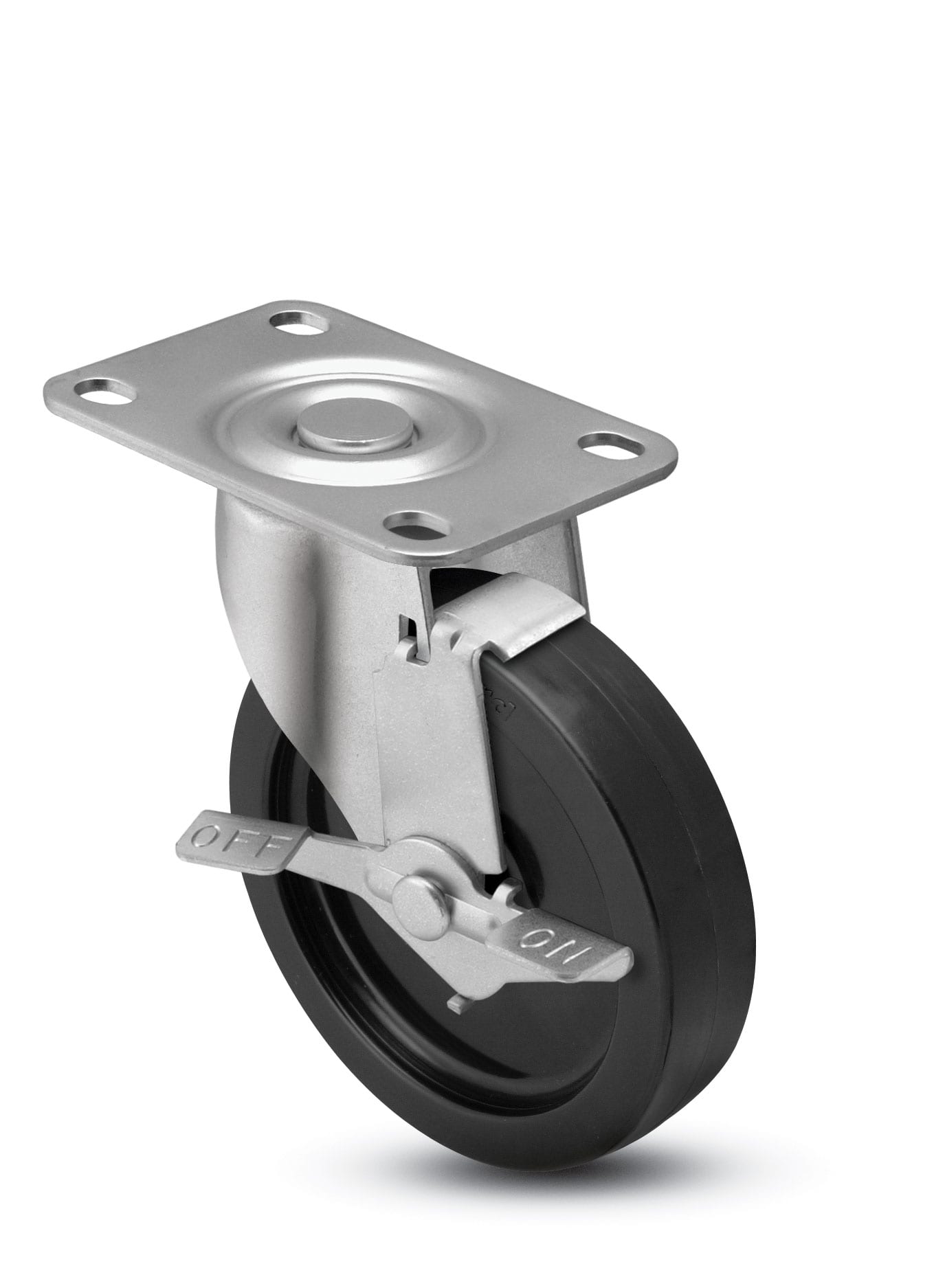

- Brakes: Friction brake, Tread Lock Brake
- Finishes: Zinc is standard, but other finishes are available
- Fastenings: Others available
Options
| Wheel Diameter | Thread With | Wheel Description | Dynamic Load | Mounting Height | Swivel Radius | Part Number |
|---|---|---|---|---|---|---|
| 1-5/8" | 11/16" | Polyolefin | 75 | 2-5/16" | 1-5/8" | PRE16113BO-3E |
| 1-5/8" | 11/16" | Polyolefin | 75 | 2-5/16" | 1-5/8" | PRE16113CO-3E |
| 2" | 13/16" | Soft Rubber | 80 | 2-5/8" | 1-15/16" | PRE20113TZ-3R PRE20108TZ-3R |

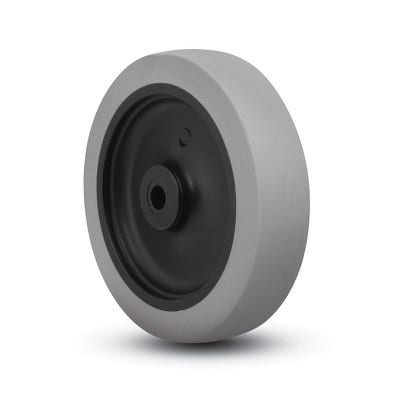

| 2" | 13/16" | TPR | 80 | 2-5/8" | 1-15/16" | PRE20113TZ-3E PRE20108TZ-3E |
| 2" | 13/16" | Hard Rubber | 90 | 2-5/8" | 1-15/16" | PRE20113TZ-3H PRE20108TZ-3H |

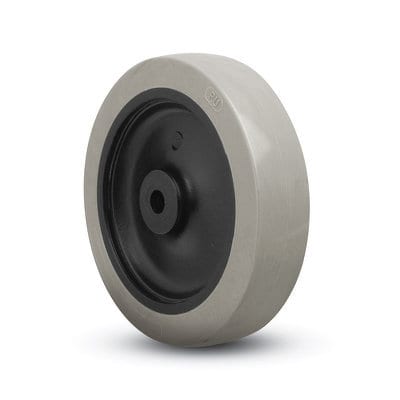

| 2" | 13/16" | Polyurethane | 90 | 2-5/8" | 1-15/16" | PRE20113TZ-TPU PRE20108TZ-TPU |

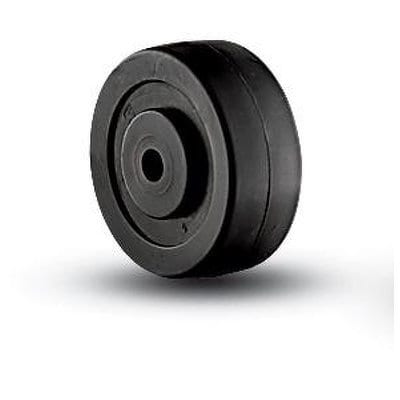

| 2" | 13/16" | Solid Polyolefin | 90 | 2-5/8" | 1-15/16" | PRE20113TZ-3ES PRE20108TZ-3ES |
| 2" | 3/4" | Polyolefin | 90 | 2-5/8" | 1-15/16" | PRE20113TZ-3E PRE20108TZ-3E |

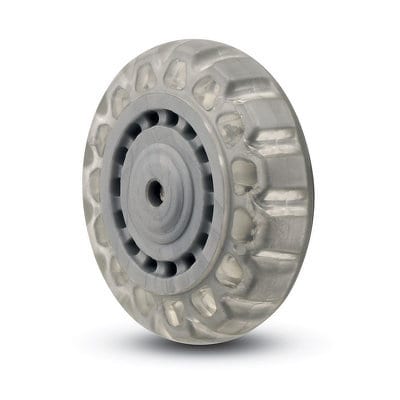

| 2" | 7/8" | Vipor | 90 | 2-5/8" | 1-15/16" | PRE20113TZ-VPR01(CG) PRE20108TZ-VPR01(CG) |
| 2-1/2" | 13/16" | Soft Rubber | 80 | 3-1/8" | 2-1/8" | PRE25113TZ-3R PRE25108TZ-3R |
| 2-1/2" | 13/16" | TPR | 80 | 3-1/8" | 2-1/8" | PRE25113TZ-TPR PRE25108TZ-TPR |
| 2-1/2" | 13/16" | Hard Rubber | 95 | 3-1/8" | 2-1/8" | PRE25113TZ-3H PRE25108TZ-3H |
| 2-1/2" | 13/16" | Polyurethane | 95 | 3-1/8" | 2-1/8" | PRE25113TZ-TPU PRE25108TZ-TPU |
| 2-1/2" | 13/16" | Polyolefin | 95 | 3-1/8" | 2-1/8" | PRE25113TZ-3E PRE25108TZ-3E PRE25120TZ-3E |
| 3" | 13/16" | Soft Rubber | 110 | 3-1/2" | 2-1/2" | PRE30113TZ-3R PRE30108TZ-3R PRE30120TZ-3R |
| 3" | 13/16" | TPR | 110 | 3-1/2" | 2-1/2" | PRE30113TZ-TPR PRE30108TZ-TPR PRE30120TZ-TPR |
| 3" | 13/16" | Hard Rubber | 120 | 3-1/2" | 2-1/2" | PRE30113TZ-3H PRE30108TZ-3H PRE30120TZ-3H |
| 3" | 13/16" | Polyurethane | 120 | 3-1/2" | 2-1/2" | PRE30113TZ-TPU PRE30108TZ-TPU PRE30120TZ-TPU |
| 3" | 13/16" | Polyolefin | 120 | 3-1/2" | 2-1/2" | PRE30113TZ-3E PRE30108TZ-3E PRE30120TZ-3E |

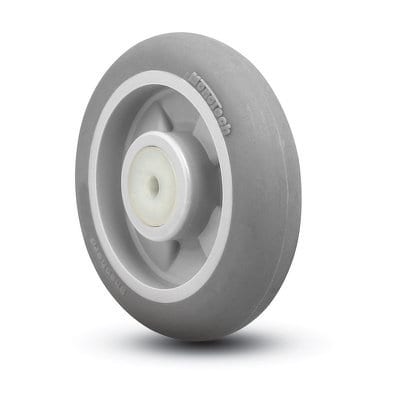

| 3" | 13/16" | Monotech | 120 | 3-1/2" | 2-1/2" | PRE30113TZ-MNT PRE30108TZ-MNT PRE30120TZ-MNT |
| 3" | 13/16" | Vipor | 120 | 3-1/2" | 2-1/2" | PRE30113TZ-VPR01(CG) PRE30108TZ-VPR01(CG) PRE30120TZ-VPR01(CG) |
| 4" | 15/16" | Soft Rubber | 125 | 4-3/4" | 3-7/16" | PRE40120TZ-3R |
| 4" | 15/16" | TPR | 125 | 4-3/4" | 3-7/16" | PRE40120TZ-TPR |
| 4" | 15/16" | Hard Rubber | 150 | 4-3/4" | 3-7/16" | PRE40120TZ-3H |
| 4" | 15/16" | Polyurethane | 150 | 4-3/4" | 3-7/16" | PRE40120TZ-TPU |
| 4" | 15/16" | Polyolefin | 150 | 4-3/4" | 3-7/16" | PRE40120TZ-3E |
| 4" | 15/16" | Monotech | 150 | 4-3/4" | 3-7/16" | PRE40120TZ-MNT |
| 5" | 15/16" | Soft Rubber | 130 | 5-3/4" | 4-1/8" | PRE50120TZ-3R |
| 5" | 15/16" | TPR | 130 | 5-3/4" | 4-1/8" | PRE50120TZ-TPR |
| 5" | 15/16" | Hard Rubber | 150 | 5-3/4" | 4-1/8" | PRE50120TZ-3H |
| 5" | 15/16" | Polyurethane | 150 | 5-3/4" | 4-1/8" | PRE50120TZ-TPU |
| 5" | 15/16" | Polyolefin | 150 | 5-3/4" | 4-1/8" | PRE50120TZ-3E |
| 5" | 15/16" | Monotech | 160 | 5-3/4" | 4-1/8" | PRE50120TZ-MNT |

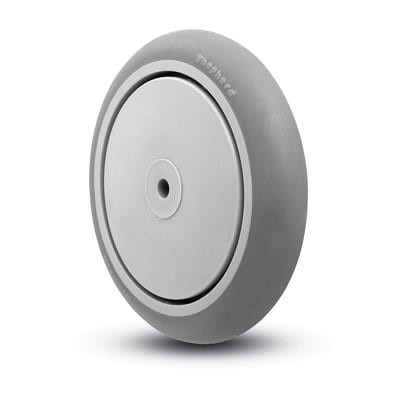

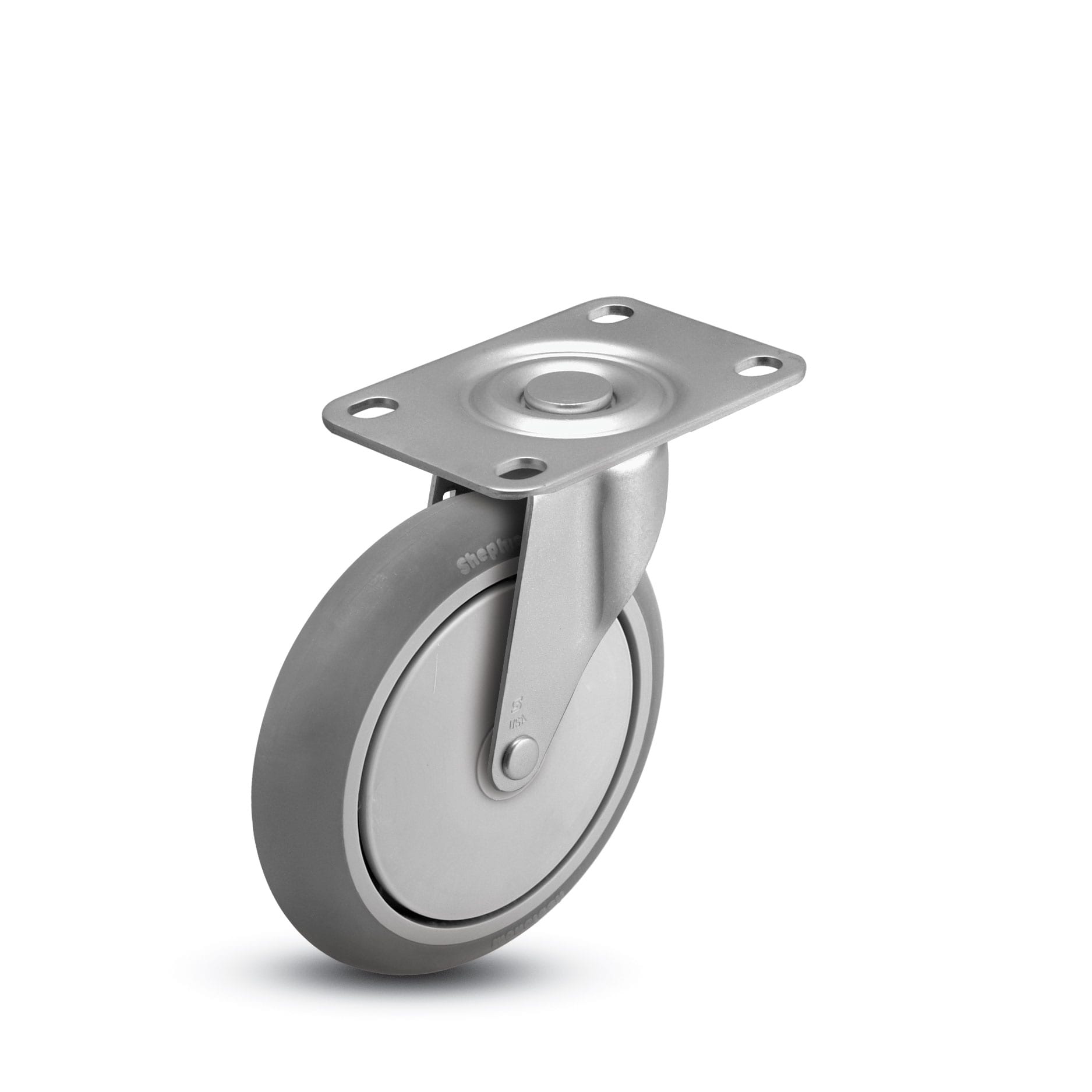

| 5" | 15/16" | Precision Brg Monotech | 160 | 5-3/4" | 4-1/8" | PRE50120TZ-MNT33(GG) |
