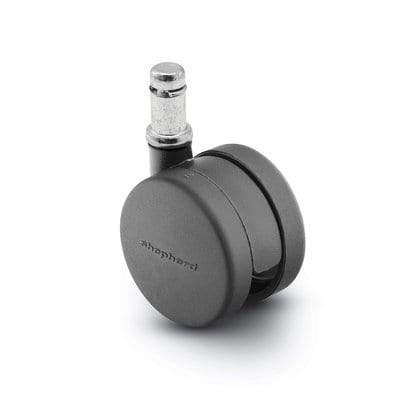

Pilot Unhooded Twin Wheel Grip Ring and Grip Neck Stem Models
- Zinc die-cast body
- Concealed axle
Features
- Seating
- Electronic Equipment
- Store Fixtures
Applications
- Fasteners Stemless, threaded stem, grip ring stem, grip neck stem, plate
- Urethane Wheel To order, insert [-U] at the end of the Part Number
Options
| Wheel Diameter | Tread Material | Finish | Dynamic Load | Mounting Height | Swivel Radius | Part Number |
|---|---|---|---|---|---|---|
| 50mm | Nylon | Flat Black | 75 | 2-1/2" | 1-11/16" | PPB50222FB PPB50223FB PPB50211FB PPB50302FB |
| 50mm | Urethane | Flat Black | 75 | 2-1/2" | 1-11/16" | PPB50222FB-U PPB50223FB-U PPB50211FB-U PPB50302FB-U |
| 60mm | Nylon | Flat Black | 100 | 2-7/8" | 2-1/16" | PPB60222FB PPB60223FB PPB60211FB PPB60302FB |
| 60mm | Urethane | Flat Black | 100 | 2-7/8" | 2-1/16" | PPB60222FB-U PPB60223FB-U PPB60211FB-U PPB60302FB-U |
