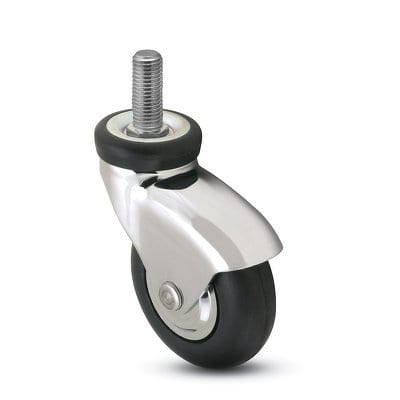

Omega Threaded Stem Models
- Fully heat treated
- Dual ball bearing raceways
- High luster chrome or black finish
- Matching thread guards
- Precision ball bearing for excellent rollability
- Choice of Vipor wheels (85-90A) or soft neoprene rubber (50-60A) durometer
Features
- Medical Equipment
- Electronic Equipment
- Seating
Applications

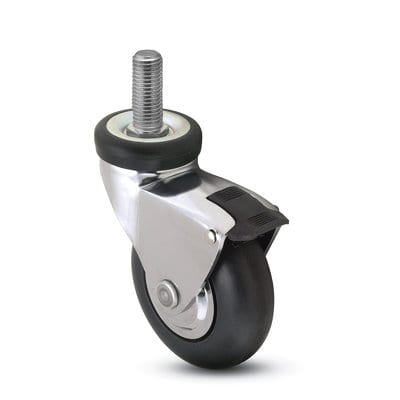

- BrakeTread brake uniformly integrated into body design for smooth lock and ease of activation. Swivel radius is 3-1/8". Add -B at end of model
- Bolt in Stems A variety of stems can be attached to the kingpinless fastening # 403 providing the ultimate in versatility. Contact us for bolt-in stem part numbers
- Black finish is available with the Vipor wheel for a minimum purchase
Options
| Wheel Diameter | Thread With | Finish | Wheel Description | Dynamic Load | Mounting Height | Swivel Radius | Part Number | Bearing Type |
|---|---|---|---|---|---|---|---|---|
| 2" | 15/16 | Bright Chrome | Neoprene | 75 | 2-3/4" | 2" | POM20507BC-NPR POM20637BC-NPR POM20605BC-NPR | Precision Ball |
| 3" | 15/16 | Bright Chrome | Neoprene | 110 | 3-7/8" | 2-7/8" | POM30507BC-NPR POM30605BC-NPR POM30637BC-NPR POM30748BC-NPR | Precision Ball |

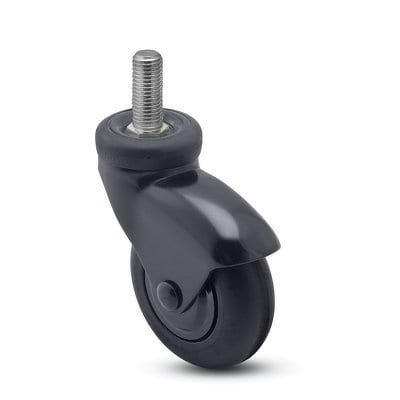

| 3" | 15/16 | Black | Neoprene | 110 | 3-7/8" | 2-7/8" | POM30507BZ-NPR POM30605BZ-NPR POM30637BZ-NPR POM30748BZ-NPR | Precision Ball |

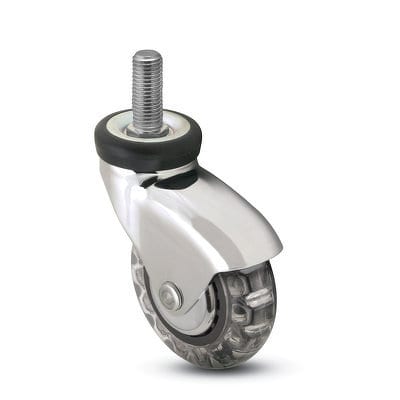

| 3" | 15/16 | Bright Chrome | Vipor | 120 | 3-7/8" | 2-7/8" | POM30507BC-VPR33(CK) POM30605BC-VPR33(CK) POM30637BC-VPR33(CK) POM30748BC-VPR33(CK) | Precision Ball |
