Monarch Swivel Top Plate Models

    Features

  • Zinc Finish
  • Double ball Bearing Raceways
  • Octagon Washer on Threaded Steam
  • Heat Treated raceways for increased wear and resistance

    Applications

  • Fixtures
  • Equipment Carts
  • Institutional Equipment
  • Medical Equipment
  • Furniture

    Options

  • Brakes: Friction brake available on 2" and 2-1/2" Minimum order quantities apply
  • Finishes: Polished nickel (PN) available as special order. Minimum order quantities apply
  • Fastenings: Others available
Wheel Diameter Thread With Wheel Description Dynamic Load Mounting Height Swivel Radius Part Number
2" 13/16" Soft Rubber 80 2-5/8" 1-15/16" PMN20113TZ-3R PMN20108TZ-3R
2" 13/16" TPR 80 2-5/8" 1-15/16" PMN20113TZ-3E PMN20108TZ-3E
2" 13/16" Hard Rubber 90 2-5/8" 1-15/16" PMN20113TZ-3H PMN20108TZ-3H
2" 13/16" Polyurethane 90 2-5/8" 1-15/16" PMN20113TZ-TPU PMN20108TZ-TPU
2" 13/16" Solid Polyolefin 90 2-5/8" 1-15/16" PMN20113TZ-3ES PMN20108TZ-3ES
2" 3/4" Polyolefin 90 2-5/8" 1-15/16" PMN20113TZ-3E PMN20108TZ-3E
2" 7/8" Vipor 90 2-5/8" 1-15/16" PMN20113TZ-VPR01(CG) PMN20108TZ-VPR01(CG)
2-1/2" 13/16" Soft Rubber 80 3-1/8" 2-1/8" PMN25113TZ-3R PMN25108TZ-3R
2-1/2" 13/16" TPR 80 3-1/8" 2-1/8" PMN25113TZ-TPR PMN25108TZ-TPR
2-1/2" 13/16" Hard Rubber 95 3-1/8" 2-1/8" PMN25113TZ-3H PMN25108TZ-3H
2-1/2" 13/16" Polyurethane 95 3-1/8" 2-1/8" PMN25113TZ-TPU PMN25108TZ-TPU
2-1/2" 13/16" Polyolefin 95 3-1/8" 2-1/8" PMN25113TZ-3E PMN25108TZ-3E
3" 13/16" Soft Rubber 110 3-1/2" 2-1/2" PMN30113TZ-3R PMN30108TZ-3R
3" 13/16" TPR 110 3-1/2" 2-1/2" PMN30113TZ-TPR PMN30108TZ-TPR
3" 13/16" Hard Rubber 120 3-1/2" 2-1/2" PMN30113TZ-3H PMN30108TZ-3H
3" 13/16" Polyurethane 120 3-1/2" 2-1/2" PMN30113TZ-TPU PMN30108TZ-TPU
3" 13/16" Polyolefin 120 3-1/2" 2-1/2" PMN30113TZ-3E PMN30108TZ-3E
3" 13/16" Monotech 120 3-1/2" 2-1/2" PMN30113TZ-MNT PMN30108TZ-MNT
3" 13/16" Vipor 120 3-1/2" 2-1/2" PMN30113TZ-VPR01(CG) PMN30108TZ-VPR01(CG)

Brake Options

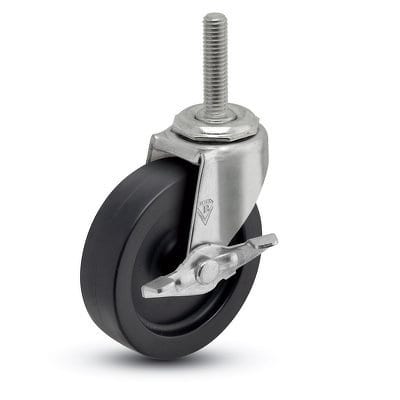

Friction Brake

2" 2-1/2" & 3" models. 2" and 2-1/2" dia. Model swivel radius changes to 2-1/8". Add -B at end of part number

Wheel Selection

Hard or Soft Rubber
Thermoplastic Rubber
Polyurethane Tread
2" Solid Polyolefin
Polyolefin
Monotech

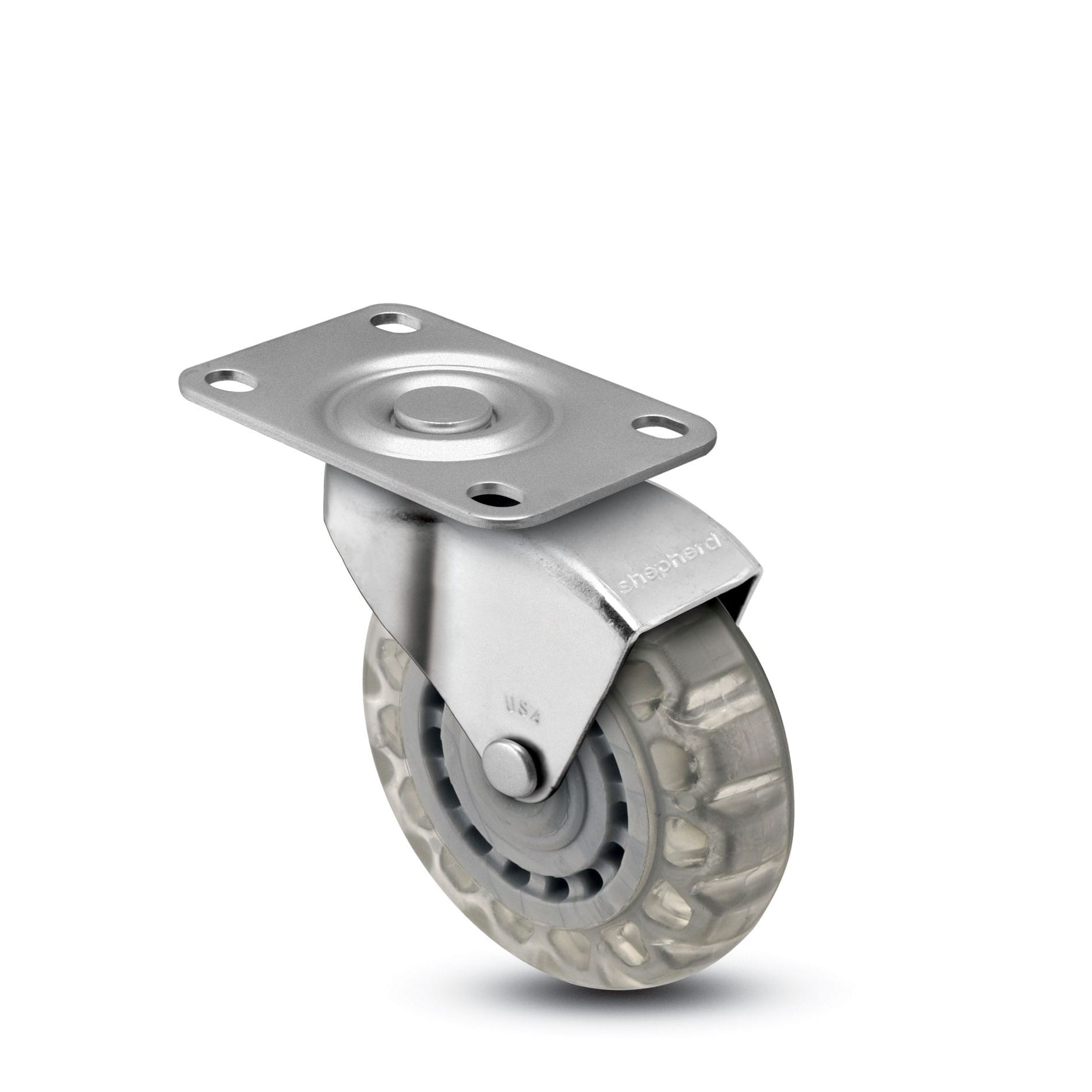

Vipor
