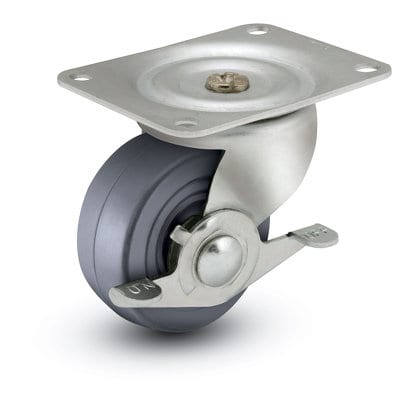

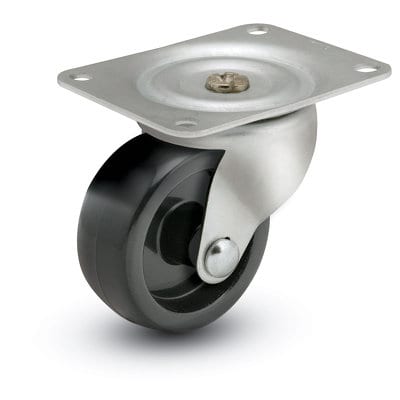

Shepherd Swivel Top Plate Models
| Wheel Diameter | Thread With | Wheel Description | Dynamic Load | Mounting Height | Swivel Radius | Part Number |
|---|---|---|---|---|---|---|
| 2" | 13/16" | Soft Rubber | 80 | 2-5/8" | 1-15/16" | PSQ20112TZ-3R |
| 2" | 13/16" | Polyolefin | 80 | 2-5/8" | 1-15/16" | PSQ20112TZ-3E |
| 2" | 13/16" | Hard Rubber | 90 | 2-5/8" | 1-15/16" | PSQ20112TZ-3H |
| 2" | 13/16" | Steel | 90 | 2-5/8" | 1-15/16" | PSQ20112TZ-STL01(GG) |
| 2-1/2" | 13/16" | Soft Rubber | 80 | 3-1/8" | 2-1/8" | PSQ25115TZ-3R |
| 2-1/2" | 13/16" | Polyolefin | 80 | 3-1/8" | 2-1/8" | PSQ25115TZ-3E |
| 2-1/2" | 13/16" | Hard Rubber | 95 | 3-1/8" | 2-1/8" | PSQ25115TZ-3H |
| 2-1/2" | 13/16" | Steel | 95 | 3-1/8" | 2-1/8" | PSQ25115TZ-STL01(GG) |
| 3" | 13/16" | Soft Rubber | 110 | 3-1/2" | 2-1/2" | PSQ30119TZ-3R |
| 3" | 13/16" | Polyolefin | 110 | 3-1/2" | 2-1/2" | PSQ30119TZ-3E |
| 3" | 13/16" | Hard Rubber | 120 | 3-1/2" | 2-1/2" | PSQ30119TZ-3H |
| 3" | 13/16" | Steel | 120 | 3-1/2" | 2-1/2" | PSQ30119TZ-STL01(GG) |
| 4" | 13/16" | Soft Rubber | 110 | 3-1/2" | 2-1/2" | PSQ40121TZ-3R |
| 4" | 13/16" | Polyolefin | 110 | 3-1/2" | 2-1/2" | PSQ40121TZ-3E |
| 4" | 13/16" | Hard Rubber | 120 | 3-1/2" | 2-1/2" | PSQ40121TZ-3H |
| 4" | 13/16" | Steel | 120 | 3-1/2" | 2-1/2" | PSQ40121TZ-STL01(GG) |
