Threaded Stem Models

    Features

  • Chrome Plated Finish
  • Dual Ball Swivel Raceways for added strength
  • Total Lock Brake models lock both swivel and wheel
  • Directional lock models lock swivel only (helps with steering)
  • Precision ball bearings in wheels for easier rollability
  • Wheels have full plastic thread guards for added protection

    Applications

  • Food Service
  • Case Carts
  • Hospital Carts
  • Institutional Equipment
  • Medical Equipment

    Options

  • Brakes: Total lock, Direction Lock
  • Fastenings: Hollow Kingpin, Threaded Stem, Grip Ring, Round or Square Stem, Expeending Adapter Stem, Swivel Top Plate, Rigid Top Plate
  • Finishes: Chrome Plate Finish
Wheel Diameter Thread With Wheel Description Dynamic Load Mounting Height Swivel Radius Part Number Bearing Type

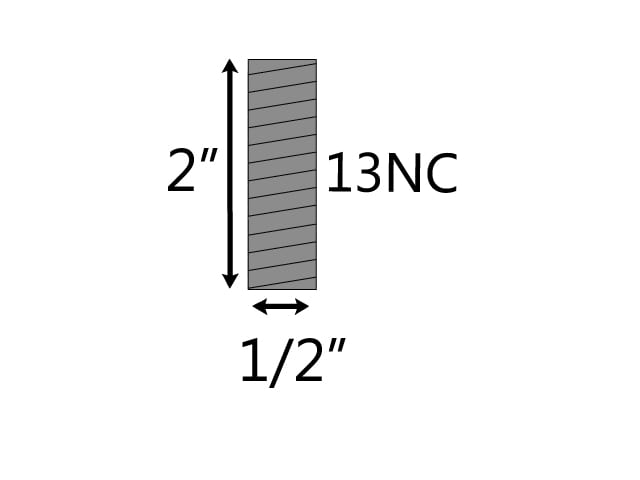

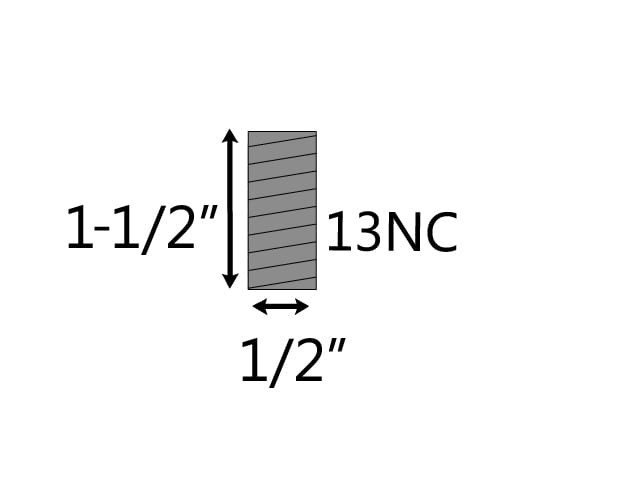

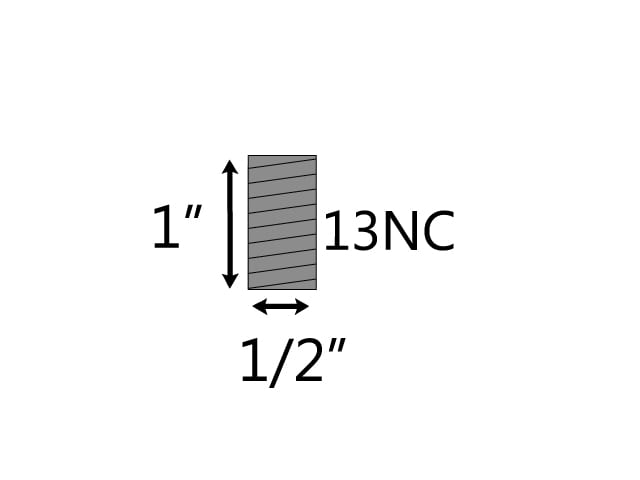

3" 1-1/4" Thermoplastic Rubber 190 4-5/16" 2-29/32" CH-03TPP-125-SW-TS02_ CH-03TPP-125-SW-TS03_ CH-03TPP-125-SW-TS04_ Precision Ball
3 1-1/4 Polyurethane TPU 190 4-5/16 2-29/32 CH-03PYP-125-SW-TS02_ CH-03PYP-125-SW-TS03_ CH-03PYP-125-SW-TS04_ Precision Ball
4" 1-1/4" Thermoplastic Rubber 240 5-5/16" 3-37/64" CH-04TPP-125-SW-TS02_ CH-04TPP-125-SW-TS03_ CH-04TPP-125-SW-TS04_ Precision Ball
4" 1-1/4" Polyurethane TPU 240 5-5/16" 3-37/64" CH-04PYP-125-SW-TS02_ CH-04PYP-125-SW-TS03_ CH-04PYP-125-SW-TS04_ Precision Ball
5" 1-1/4" Thermoplastic Rubber 260 6-5/16" 4-7/32" CH-05TPP-125-SW-TS02_ CH-05TPP-125-SW-TS03_ CH-05TPP-125-SW-TS04_ Precision Ball
5" 1-1/4" Polyurethane TPU 260 6-5/16" 4-7/32" CH-05PYP-125-SW-TS02_ CH-05PYP-125-SW-TS03_ CH-05PYP-125-SW-TS04_ Precision Ball
6" 1-1/4" Thermoplastic Rubber 260 7-9/32" 4-39/64" CH-06TPP-125-SW-TS02_ CH-06TPP-125-SW-TS03_ CH-06TPP-125-SW-TS04_ Precision Ball
6" 1-1/4" Polyurethane TPU 260 7-9/32" 4-39/64" CH-06PYP-125-SW-TS02_ CH-06PYP-125-SW-TS03_ CH-06PYP-125-SW-TS04_ Precision Ball

Brake Options

Total Lock
Direction Lock

Wheel Selection
