Swivel Top Plate Models

    Features

  • Heavy, stamped leg construction
  • Heat treated, dual ball bearing raceways
  • Wraparound welded legs are located directly under the main support swivel bearings for added strength
  • Sealed upper and lower ball races
  • Yellow dichromate finish for added corrosion resistance

    Applications

  • Power Towed Application
  • Terminal Trucks
  • High Abuse Applications

    Options

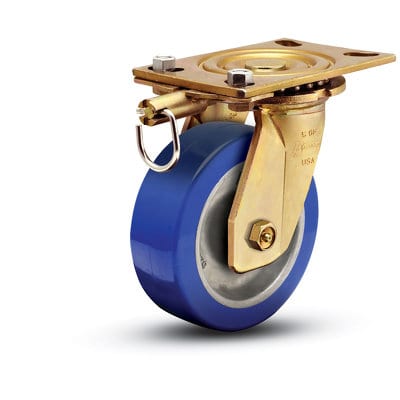

  • Swivel Lock 4 position swivel lock.
Wheel Diameter Thread With Wheel Description Dynamic Load Mounting Height Swivel Radius Part Number Bearing Type
5" 2" Urethane on Aluminum 1500 6-1/2" 4" COS50158YZ-UOA81(BG) Sealed Roller

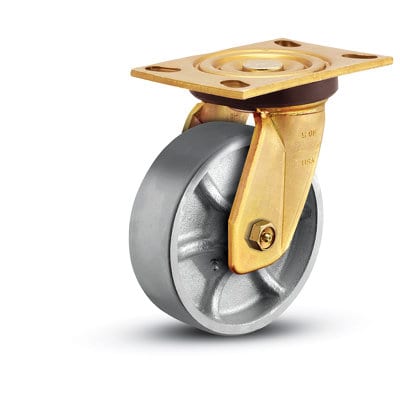

5" 2" Steel 1750 6-1/2" 4" COS50158YZ-STL51(GG) Roller

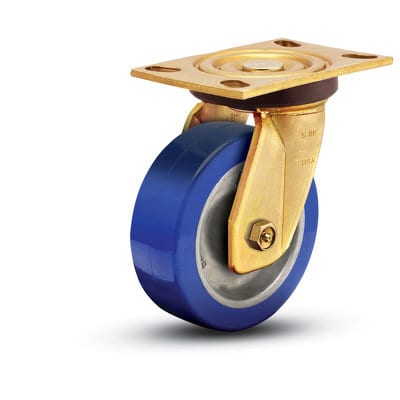

6" 2" Urethane on Aluminum 1500 7-1/2" 4-3/4" COS60158YZ-UOA81(BG) Sealed Roller
6" 2" Steel 1750 7-1/2" 4-3/4" COS60158YZ-STL51(GG) Roller
8" 2" Urethane on Aluminum 1500 9-1/2" 6" COS80158YZ-UOA81(BG) Sealed Roller
8" 2" Steel 1750 9-1/2" 6" COS80158YZ-STL51(GG) Roller

Brake Options

Swivel Lock Break

Wheel Selection

Urethane on Aluminum
Steel

Finishes

Yellow dichromate Finish
