Genesis
| Wheel Diameter | Stem | Kick Stop Brake | Thread With | Finish | Wheel Description | Dynamic Load | Mounting Height | Swivel Radius | Part Number |
|---|---|---|---|---|---|---|---|---|---|

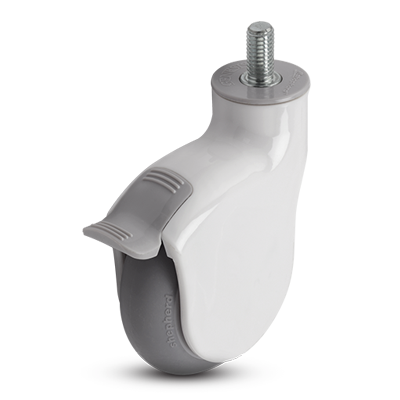

| 3 | 1/2-13UNC x 1-1/2 | No | 1 | White | Mounting: Threaded Stem | 110 Pounds | 4 INCH | 2 15/16 INCH | PGE30748WH-MNT33(GG) |
| 3 | 1/2-13UNC x 1-1/2 | Tread Brake | 1 | White | Mounting: Threaded Stem | 110 Pounds | 4 INCH | 3 3/4 INCH | PGE30748WH-MNT33(GG)B |
| 3 | 1/2-13UNC x 1-1/2 | No | 1 | Grey | Mounting: Threaded Stem | 110 Pounds | 4 INCH | 2 15/16 INCH | PGE30748GR-MNT33(GG) |
| 3 | 1/2-13UNC x 1-1/2 | Tread Brake | 1 | Grey | Mounting: Threaded Stem | 110 Pounds | 4 INCH | 3 3/4 INCH | PGE30748GR-MNT33(GG)B |
| 3 | 1/2-13UNC x 1-1/2 | No | 1 | Black | Mounting: Threaded Stem | 110 Pounds | 4 INCH | 2 15/16 INCH | PGE30748BK-MNT33(KK) |
| 3 | 1/2-13UNC x 1-1/2 | Tread Brake | 1 | Black | Mounting: Threaded Stem | 110 Pounds | 4 INCH | 3 3/4 INCH | PGE30748BK-MNT33(KK)B |
| 3 | 3/8 -16UNC x 3/4 | No | 1 | White | Mounting: Threaded Stem | 110 Pounds | 4 INCH | 2 15/16 INCH | PGE30637WH-MNT33(GG) |
| 3 | 3/8 -16UNC x 3/4 | Tread Brake | 1 | White | Mounting: Threaded Stem | 110 Pounds | 4 INCH | 3 3/4 INCH | PGE30637WH-MNT33(GG)B |
| 3 | 3/8 -16UNC x 3/4 | No | 1 | Grey | Mounting: Threaded Stem | 110 Pounds | 4 INCH | 2 15/16 INCH | PGE30637GR-MNT33(GG) |
| 3 | 3/8 -16UNC x 3/4 | Tread Brake | 1 | Grey | Mounting: Threaded Stem | 110 Pounds | 4 INCH | 3 3/4 INCH | PGE30637GR-MNT33(GG)B |
| 3 | 3/8 -16UNC x 3/4 | No | 1 | Black | Mounting: Threaded Stem | 110 Pounds | 4 INCH | 2 15/16 INCH | PGE30637BK-MNT33(KK) |
| 3 | 3/8 -16UNC x 3/4 | Tread Brake | 1 | Black | Mounting: Threaded Stem | 110 Pounds | 4 INCH | 3 3/4 INCH | PGE30637BK-MNT33(KK)B |
| 3 | 3/8 -16UNC x 1-1/2 | No | 1 | White | Mounting: Threaded Stem | 110 Pounds | 4 INCH | 2 15/16 INCH | PGE30605WH-MNT33(GG) |
| 3 | 3/8 -16UNC x 1-1/2 | Tread Brake | 1 | White | Mounting: Threaded Stem | 110 Pounds | 4 INCH | 3 3/4 INCH | PGE30605WH-MNT33(GG)B |
| 3 | 3/8 -16UNC x 1-1/2 | No | 1 | Grey | Mounting: Threaded Stem | 110 Pounds | 4 INCH | 2 15/16 INCH | PGE30605GR-MNT33(GG) |
| 3 | 3/8 -16UNC x 1-1/2 | Tread Brake | 1 | Grey | Mounting: Threaded Stem | 110 Pounds | 4 INCH | 3 3/4 INCH | PGE30605GR-MNT33(GG)B |
| 3 | 3/8 -16UNC x 1-1/2 | No | 1 | Black | Mounting: Threaded Stem | 110 Pounds | 4 INCH | 2 15/16 INCH | PGE30605BK-MNT33(KK) |
| 3 | 3/8 -16UNC x 1-1/2 | Tread Brake | 1 | Black | Mounting: Threaded Stem | 110 Pounds | 4 INCH | 3 3/4 INCH | PGE30605BK-MNT33(KK)B |
| 3 | 5/16-18UNC x 1 | No | 1 | White | Mounting: Threaded Stem | 110 Pounds | 4 INCH | 2 15/16 INCH | PGE30507WH-MNT33(GG) |
| 3 | 5/16-18UNC x 1 | Tread Brake | 1 | White | Mounting: Threaded Stem | 110 Pounds | 4 INCH | 3 3/4 INCH | PGE30507WH-MNT33(GG)B |
| 3 | 5/16-18UNC x 1 | No | 1 | Grey | Mounting: Threaded Stem | 110 Pounds | 4 INCH | 2 15/16 INCH | PGE30507GR-MNT33(GG) |
| 3 | 5/16-18UNC x 1 | Tread Brake | 1 | Grey | Mounting: Threaded Stem | 110 Pounds | 4 INCH | 3 3/4 INCH | PGE30507GR-MNT33(GG)B |
| 3 | 5/16-18UNC x 1 | No | 1 | Black | Mounting: Threaded Stem | 110 Pounds | 4 INCH | 2 15/16 INCH | PGE30507BK-MNT33(KK) |
| 3 | 5/16-18UNC x 1 | Tread Brake | 1 | Black | Mounting: Threaded Stem | 110 Pounds | 4 INCH | 3 3/4 INCH | PGE30507BK-MNT33(KK)B |

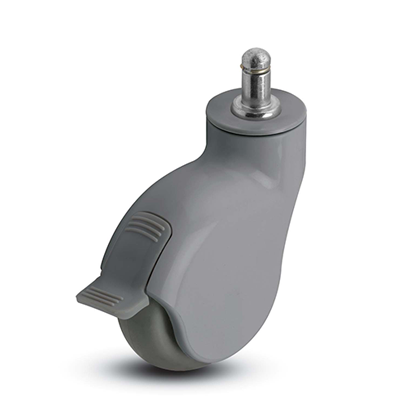

| 3 | 7/16 x 7/8 | No | 1 | White | Mounting: Grip Ring Stem | 110 Pounds | 4 INCH | 2 15/16 INCH | PGE30223WH-MNT33(GG) |
| 3 | 7/16 x 7/8 | Tread Brake | 1 | White | Mounting: Grip Ring Stem | 110 Pounds | 4 INCH | 3 3/4 INCH | PGE30223WH-MNT33(GG)B |
| 3 | 7/16 x 7/8 | No | 1 | Grey | Mounting: Grip Ring Stem | 110 Pounds | 4 INCH | 2 15/16 INCH | PGE30223GR-MNT33(GG) |
| 3 | 7/16 x 7/8 | Tread Brake | 1 | Grey | Mounting: Grip Ring Stem | 110 Pounds | 4 INCH | 3 3/4 INCH | PGE30223GR-MNT33(GG)B |
| 3 | 7/16 x 7/8 | No | 1 | Black | Mounting: Grip Ring Stem | 110 Pounds | 4 INCH | 2 15/16 INCH | PGE30223BK-MNT33(KK) |
| 3 | 7/16 x 7/8 | Tread Brake | 1 | Black | Mounting: Grip Ring Stem | 110 Pounds | 4 INCH | 3 3/4 INCH | PGE30223BK-MNT33(KK)B |
| 3 | 7/16 x 1-7/16 | No | 1 | White | Mounting: Grip Ring Stem | 110 Pounds | 4 INCH | 2 15/16 INCH | PGE30211WH-MNT33(GG) |
| 3 | 7/16 x 1-7/16 | Tread Brake | 1 | White | Mounting: Grip Ring Stem | 110 Pounds | 4 INCH | 3 3/4 INCH | PGE30211WH-MNT33(GG)B |
| 3 | 7/16 x 1-7/16 | No | 1 | Grey | Mounting: Grip Ring Stem | 110 Pounds | 4 INCH | 2 15/16 INCH | PGE30211GR-MNT33(GG) |
| 3 | 7/16 x 1-7/16 | Tread Brake | 1 | Grey | Mounting: Grip Ring Stem | 110 Pounds | 4 INCH | 3 3/4 INCH | PGE30211GR-MNT33(GG)B |
| 3 | 7/16 x 1-7/16 | No | 1 | Black | Mounting: Grip Ring Stem | 110 Pounds | 4 INCH | 2 15/16 INCH | PGE30211BK-MNT33(KK) |
| 3 | 7/16 x 1-7/16 | Tread Brake | 1 | Black | Mounting: Grip Ring Stem | 110 Pounds | 4 INCH | 3 3/4 INCH | PGE30211BK-MNT33(KK)B |
| 4 | 1/2 -13UNC x 1-1/2 | No | 1 1/4 | White | Mounting: Threaded Stem | 225 Pounds | 5 3/8 INCH | 3 3/4 INCH | PGE40748WH-MNT63(GG) |
| 4 | 1/2 -13UNC x 1-1/2 | Tread Brake | 1 1/4 | White | Mounting: Threaded Stem | 225 Pounds | 5 3/8 INCH | 4 1/8 INCH | PGE40748WH-MNT63(GG)B |
| 4 | 1/2 -13UNC x 1-1/2 | No | 1 1/4 | White | Mounting: Threaded Stem | 225 Pounds | 5 3/8 INCH | 3 3/4 INCH | PGE40748GR-MNT63(GG) |
| 4 | 1/2 -13UNC x 1-1/2 | Tread Brake | 1 1/4 | White | Mounting: Threaded Stem | 225 Pounds | 5 3/8 INCH | 4 1/8 INCH | PGE40748GR-MNT63(GG)B |
| 4 | 1/2 -13UNC x 1-1/2 | No | 1 1/4 | Black | Mounting: Threaded Stem | 225 Pounds | 5 3/8 INCH | 3 3/4 INCH | PGE40748BK-MNT63(KK) |
| 4 | 1/2 -13UNC x 1-1/2 | Tread Brake | 1 1/4 | Black | Mounting: Threaded Stem | 225 Pounds | 5 3/8 INCH | 4 1/8 INCH | PGE40748BK-MNT63(KK)B |
| 4 | 1/2 -13UNC x 1-1/2 | No | 1 1/4 | Grey | Mounting: Threaded Stem | 225 Pounds | 5 3/8 INCH | 3 3/4 INCH | PGE40748GR-MNT63(GG) |
| 4 | 1/2 -13UNC x 1-1/2 | Tread Brake | 1 1/4 | Grey | Mounting: Threaded Stem | 225 Pounds | 5 3/8 INCH | 4 1/8 INCH | PGE40748GR-MNT63(GG)B |
| 4 | 1/2-13UNC x 1 | No | 1 1/4 | Grey | Mounting: Threaded Stem | 225 Pounds | 5 3/8 INCH | 3 3/4 INCH | PGE40741WH-MNT63(GG) |
| 4 | 1/2-13UNC x 1 | Tread Brake | 1 1/4 | Grey | Mounting: Threaded Stem | 225 Pounds | 5 3/8 INCH | 4 1/8 INCH | PGE40741WH-MNT63(GG)B |
| 4 | 1/2-13UNC x 1 | No | 1 1/4 | Grey | Mounting: Threaded Stem | 225 Pounds | 5 3/8 INCH | 3 3/4 INCH | PGE40741GR-MNT63(GG) |
| 4 | 1/2-13UNC x 1 | Tread Brake | 1 1/4 | Grey | Mounting: Threaded Stem | 225 Pounds | 5 3/8 INCH | 4 1/8 INCH | PGE40741GR-MNT63(GG)B |
| 4 | 1/2-13UNC x 1 | Tread Brake | 1 1/4 | Black | Mounting: Threaded Stem | 225 Pounds | 5 3/8 INCH | 3 3/4 INCH | PGE40741BK-MNT63(KK) |
| 4 | 1/2-13UNC x 1 | Tread Brake | 1 1/4 | Black | Mounting: Threaded Stem | 225 Pounds | 5 3/8 INCH | 4 1/8 INCH | PGE40741BK-MNT63(KK)B |
| 4 | 7/16 x 1-1/4 | No | 1 1/4 | White | Mounting: Grip Ring Stem | 225 Pounds | 5 3/8 INCH | 3 3/4 INCH | PGE40291WH-MNT63(GG) |
| 4 | 7/16 x 1-1/4 | Tread Brake | 1 1/4 | White | Mounting: Grip Ring Stem | 225 Pounds | 5 3/8 INCH | 4 1/8 INCH | PGE40291WH-MNT63(GG)B |
| 4 | 7/16 x 1-1/4 | No | 1 1/4 | Grey | Mounting: Grip Ring Stem | 225 Pounds | 5 3/8 INCH | 3 3/4 INCH | PGE40291GR-MNT63(GG) |
| 4 | 7/16 x 1-1/4 | Tread Brake | 1 1/4 | Grey | Mounting: Grip Ring Stem | 225 Pounds | 5 3/8 INCH | 4 1/8 INCH | PGE40291GR-MNT63(GG)B |
| 4 | 7/16 x 1-1/4 | No | 1 1/4 | Black | Mounting: Grip Ring Stem | 225 Pounds | 5 3/8 INCH | 3 3/4 INCH | PGE40291BK-MNT63(KK) |
| 4 | 7/16 x 1-1/4 | Tread Brake | 1 1/4 | Black | Mounting: Grip Ring Stem | 225 Pounds | 5 3/8 INCH | 4 1/8 INCH | PGE40291BK-MNT63(KK)B |

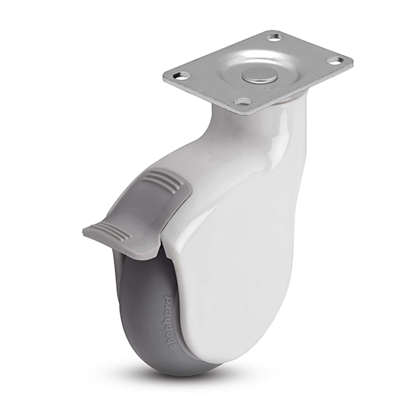

| 4 | 2-5/8 x 3-3/4 | No | 1 1/4 | White | Mounting: Top PLate | 225 Pounds | 5 3/8 INCH | 3 3/4 INCH | PGE40120WH-MNT63(GG) |
| 4 | 2-5/8 x 3-3/4 | Tread Brake | 1 1/4 | White | Mounting: Top PLate | 225 Pounds | 5 3/8 INCH | 4 1/8 INCH | PGE40120WH-MNT63(GG)B |
| 4 | 2-5/8 x 3-3/4 | No | 1 1/4 | Grey | Mounting: Top PLate | 225 Pounds | 5 3/8 INCH | 3 3/4 INCH | PGE40120GR-MNT63(GG) |
| 4 | 2-5/8 x 3-3/4 | Tread Brake | 1 1/4 | Grey | Mounting: Top PLate | 225 Pounds | 5 3/8 INCH | 4 1/8 INCH | PGE40120GR-MNT63(GG)B. |
| 4 | 2-5/8 x 3-3/4 | No | 1 1/4 | Black | Mounting: Top PLate | 225 Pounds | 5 3/8 INCH | 3 3/4 INCH | PGE40120BK-MNT63(KK) |
| 4 | 2-5/8 x 3-3/4 | Tread Break | 1 1/4 | Black | Mounting: Top PLate | 225 Pounds | 5 3/8 INCH | 4 1/8 INCH | PGE40120BK-MNT63(KK)B |
