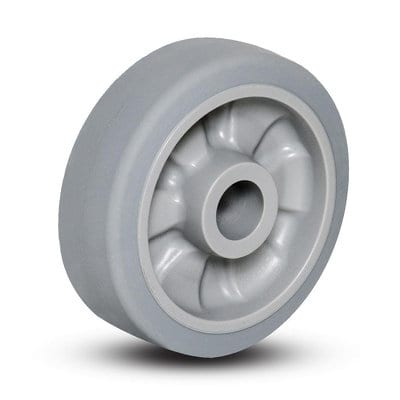

Trans-forma LT Wheels Flat Black Tread
| Wheel Diameter | Wheel Model | Wheel Bearing Bore | Wheel Bore Less Bearing | Wheel Hub Length | Spanner Bore | Spanner Length | Thread With | Thread Guard | Capacity | Wheel Description | Weight | Swivel Top Plate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4" | AB-44E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | TG1:B1-2587E | 400 | Delrin | 1 | 5.00004.4B1 |
| 4" | EB-44E | 1/2" | 1-3/16" | 2-3/16" | -- | -- | 2" | 400 | PPBB | 1 | 5.00004.4B5 | |
| 4" | IB-44E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | 400 | Roller | 1 | 5.00004.4B9 | |
| 4" | FB-44E | 3/4" | 1-3/16" | 2-3/16" | -- | -- | 2" | 400 | Less Bearing | 1 | 5.00004.4B6 | |
| 5" | AB-45E | 3/4" | 1-3/16" | 2-3/16" | 3/8" | 1-7/8" | 2" | TG1:D9-7002E | 450 | Delrin | 1-1/4 | 5.00005.4B1 |
| 5" | EB-45E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 1-7/8 or 2-7/16" | 2" | 450 | PPBB | 1-1/4 | 5.00005.4B5 | |
| 5" | IB-45E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | 450 | Roller | 1-1/2 | 5.00005.4B9 | |
| 5" | FB-45E | 1/2" | 1-3/16" | 2-3/16" | -- | -- | 2" | 450 | Less Bearing | 1-1/2 | 5.00005.4B6 | |
| 6" | AB-46E | 3/4" | 1-3/16" | 2-3/16" | 3/8" | 1-7/8" | 2" | TG1:E4-2587E | 500 | Delrin | 1-3/8 | 5.00006.4B1 |
| 6" | EB-46E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 1-7/8 or 2-7/16" | 2" | 500 | PPBB | 1-3/8 | 5.00006.4B5 | |
| 6" | IB-46E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | 500 | Roller | 1-3/8 | 5.00006.4B9 | |
| 6" | FB-46E | 1/2" | 1-3/16" | 2-3/16" | -- | -- | 2" | 500 | Less Bearing | 1-3/8 | 5.00006.4B6 |
