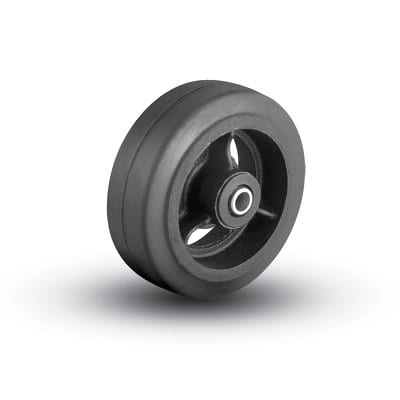

Moldon Rubber Ironcore Wheels
| Wheel Diameter | Wheel Model | Wheel Bearing Bore | Wheel Bore Less Bearing | Wheel Hub Length | Spanner Bore | Spanner Length | Thread With | Thread Guard | Capacity | Wheel Description | Weight | Swivel Top Plate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4" | 7A4-64E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | -- | 320 | Delrin | 4-3/8 | 5.00004.641.7 |
| 4" | 7I4-64E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | -- | 320 | Roller | 4-3/8 | 5.00004.649.7 |
| 5" | 7A4-65E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | -- | 320 | Delrin | 5 | 5.00005.641.7 |
| 5" | 7I4-65E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | -- | 320 | Roller | 5 | 5.00005.649.7 |
| 6" | 7A4-66E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | -- | 360 | Delrin | 5-5/8 | 5.00006.641.7 |
| 6" | 7I4-66E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | -- | 360 | Roller | 5-5/8 | 5.00006.649.7 |
| 8" | 7A4-68E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | -- | 400 | Delrin | 9-1/4 | 5.00008.641.7 |
| 8" | 7I4-68E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | -- | 400 | Roller | 9-1/4 | 5.00008.649.7 |
