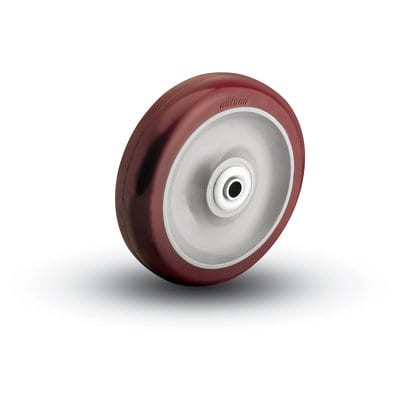

Moldon Polyurethane HI-TECH Wheels 1 - 2 Series

Wheel Diameter Wheel Model Wheel Bearing Bore Wheel Bore Less Bearing Wheel Hub Length Spanner Bore Spanner Length Thread With Thread Guard Capacity Wheel Description Weight Swivel Top Plate
2/1/02 A9-2B 1/2" 29/32" 1-7/16" 3/8" 1-1/2" 1-1/4" TG1:B587E 250 Delrin 1/4 2.00002.91
2-1/2" E9-2B 3/8" -- 1-1/2" -- -- 1-1/4" 250 Ball 1/4 2.00002.95
3" A9-3A 7/16" 5/8" 1-1/32" 5/16" 1-7/64" 7/8" TG1: CO-2587E 100 Delrin 5 1.00003.91
3" B9-3B -- 1/2" 1-7/16" 3/8" 1-1/2" 1-1/4" -- 200 Plain 1/3 2.00003.92
3-1/2" A9-3B 1/2" 29/32" 1-7/16" 3/8" 1-1/2" 1-1/4" TG1: A0-4587E 250 Delrin 3/8 2.00003.91
3-1/2" E9-3B 3/8" -- 1-1/2" -- -- 1-1/4" 250 Ball 3/8 2.00003.95
4" A9-4A 7/16" 5/8" 1-1/32" 5/16" 1-7/64" 7/8" -- 125 Delrin 3/8 1.00004.91
4" A9-4B 1/2" 29/32" 1-7/16" 3/8" 1-1/2" 1-1/4" TG1: A0-4587E 275 Delrin 1/2 2.00004.91
4" E9-4B 3/8" -- 1-1/2" -- -- 1-1/4" 275 Ball 1/2 2.00004.95
5" A9-4A 7/16" 5/8" 1-1/32" 5/16" 1-7/164" 7/8" -- 140 Delrin 1/2 1.00004.91
5" A9-5B 1/2" 29/32" 1-7/16" 3/8" 1-1/2" 1-1/4" TG1: CO-6687E TG2: C4-2587E 300 Delrin 3/4 2.00005.91
5" E9-5B 3/8" -- 1-1/2" -- -- 1-1/4" 300 Ball 3/4 2.00005.95
