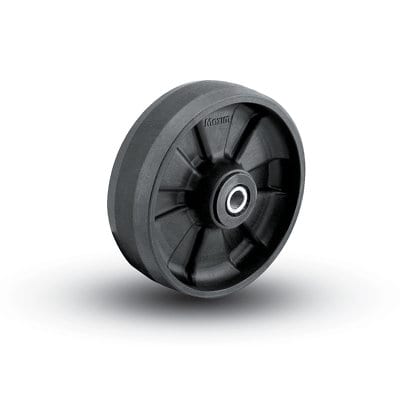

Maxim Wheels 3 - 5 Series
| Wheel Diameter | Wheel Model | Wheel Bearing Bore | Wheel Bore Less Bearing | Wheel Hub Length | Spanner Bore | Spanner Length | Thread With | Thread Guard | Capacity | Wheel Description | Weight | Swivel Top Plate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4" | A3-94E | 3/4" | 1-3/16" | 1-5/8" | 1/2" | 2-7/16" | 2" | -- | 700 | Delrin | 2-3/8 | 5.00004.531 |
| 4" | I3-94E | 3/4" | 1-3/16" | 1-5/8" | 1/2" | 2-7/16" | 2" | -- | 700 | Roller | 2-3/8 | 5.00004.539 |
| 5" | A3-95E | 3/4" | 1-3/16" | 1-5/8" | 1/2" | 2-7/16" | 2" | TG1: A0-6687E | 1000 | Delrin | 2-3/8 | 5.00005.531 |
| 5" | I3-95E | 3/4" | 1-3/16" | 1-5/8" | 1/2" | 2-7/16" | 2" | 1000 | Roller | 2-3/8 | 5.00005.539 | |
| 6" | A3-96E | 3/4" | 1-3/16" | 1-5/8" | 1/2" | 2-7/16" | 2" | TG1: F8-1002E | 1200 | Delrin | 2-5/8 | 5.00006.531 |
| 6" | I3-96E | 3/4" | 1-3/16" | 1-5/8" | 1/2" | 2-7/16" | 2" | 1200 | Roller | 2-5/8 | 5.00006.539 | |
| 8" | A3-98E | 3/4" | 1-3/16" | 1-5/8" | 1/2" | 2-7/16" | 2" | TG1:J2-2587E | 1500 | Delrin | 4-1/4 | 5.00008.531 |
| 8" | I3-98E | 3/4" | 1-3/16" | 1-5/8" | 1/2" | 2-7/16" | 2" | 1500 | Roller | 4-1/4 | 5.00008.539 |
