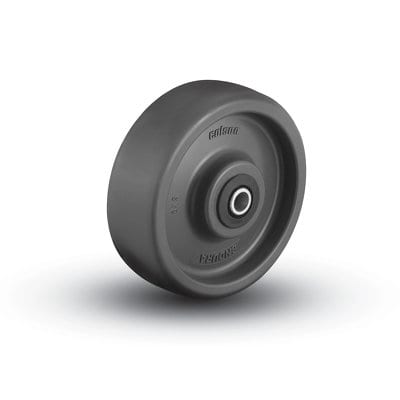

Endura Solid Elastomer Wheels 5 Series
| Wheel Diameter | Wheel Model | Wheel Bearing Bore | Wheel Bore Less Bearing | Wheel Hub Length | Spanner Bore | Spanner Length | Thread With | Thread Guard | Capacity | Wheel Description | Weight | Swivel Top Plate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4" | NEA3-84E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | TG1:A1-2587E | 1000 | Delrin | 1-3/8 | 5.00004.835.EN |
| 4" | NEI3-84E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | 1000 | Roller | 1-3/8 | 5.00004.835.EN | |
| 4" | NEEP-84E | -- | -- | 2-3/16" | 1/2" | 2-7/16" | 2" | 1000 | Prec Ball | 1-3/8 | 5.00004.8P5.EN | |
| 5" | NEA3-85E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | TG1: D9-7002E | 1000 | Delrin | 1-3/4 | 5.00005.835.EN |
| 5" | NEI3-85E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | 1000 | Roller | 1-3/4 | 5.00005.835.EN | |
| 5" | NEEP-85E | -- | -- | 2-3/16" | 1/2" | 2-7/16" | 2" | 1000 | Prec Ball | 1-3/4 | 5.00005.8P5.EN | |
| 6" | NEA3-86E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | TG1: E0-1557E | 1100 | Delrin | 2 | 5.00006.835.EN |
| 6" | NEI3-86E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | 1100 | Roller | 2 | 5.00006.835.EN | |
| 6" | NEEP-86E | -- | -- | 2-3/16" | 1/2" | 2-7/16" | 2" | 1100 | Prec Ball | 2 | 5.00006.8P5.EN | |
| 8" | NEA3-88E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | TG1: E0-1557E | 1200 | Delrin | 3-1/4 | 5.00008.835.EN |
| 8" | NEI3-88E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | 1200 | Roller | 3-1/4 | 5.00008.835.EN | |
| 8" | NEEP-88E | -- | -- | 2-3/16" | 1/2" | 2-7/16" | 2" | 1200 | Prec Ball | 3-1/4 | 5.00008.8P5.EN |
