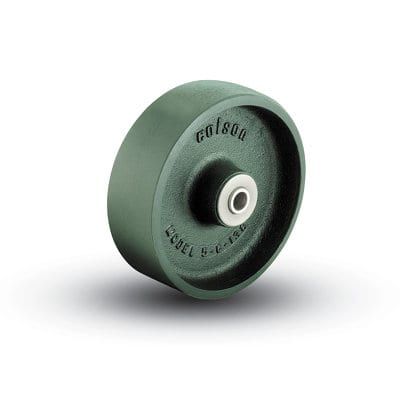

Colson Series 5-8 Cast Iron Wheels
| Wheel Diameter | Wheel Model | Wheel Bearing Bore | Wheel Bore Less Bearing | Wheel Hub Length | Spanner Bore | Spanner Length | Thread With | Thread Guard | Capacity | Wheel Description | Weight | Swivel Top Plate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4" | A3-14E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | TG1: D9-7002E | 1000 | Delrin | 3-5/8 | 5.00004.131 |
| 4" | I3-14E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | 1000 | Roller | 3-5/8 | 5.00004.139 | |
| 5" | A3-15E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | TG1: E0-1557E | 1000 | Delrin | 5-1/8 | 5.00005.131 |
| 5" | I3-15E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | 1000 | Roller | 5-1/8 | 5.00005.139 | |
| 5" | A6-15G | 1" | 1-15/16" | 3-1/4" | 3/4" | 3-1/2" | 2-1/2" | 2000 | Delrin | 8-1/2 | 7.00005.161 | |
| 5" | I6-15G | 1" | 1-15/16" | 3-1/4" | 3/4" | 3-1/2" | 2-1/2" | 2000 | Roller | 8-1/2 | 7.00005.169 | |
| 5" | I6-15H | 1-1/4" | 1-15/16" | 3-1/4" | 3/4" | 3-9/16" | 2-1/2" | 2000 | Roller | 8-1/2 | 8.00005.169 | |
| 6" | A3-16E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | -- | 1500 | Delrin | 5-3/4 | 5.00006.131 |
| 6" | I3-16E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | 1500 | Roller | 5-3/4 | 5.00006.139 | |
| 6" | I6-16F | 3/4" | 1-3/16" | 2-3/4" | 1/2" | 3" | 2-1/2" | -- | 1600 | Roller | 9 | 6.00006.169 |
| 6" | A6-16G | 1" | 1-15/16" | 3-1/4" | 3/4" | 3-1/2" | 2-1/2" | -- | 2500 | Delrin | 10-3/4 | 7.00006.161 |
| 6" | I6-16G | 1" | 1-15/16" | 3-1/4" | 3/4" | 3-1/2" | 2-1/2" | -- | 2500 | Roller | 10-3/4 | 7.00006.169 |
| 6" | I6-16H | 1-1/4" | 1-15/16" | 3-1/4" | 3/4" | 3-9/16" | 2-1/2" | -- | 2500 | Roller | 10-3/4 | 8.00006.169 |
| 8" | A3-18E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | -- | 1500 | Delrin | 8-1/2 | 5.00008.131 |
| 8" | I3-18E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | -- | 1500 | Roller | 8-1/2 | 5.00008.139 |
| 8" | I6-18F | 3/4" | 1-3/16" | 2-3/4" | 1/2" | 3" | 2-1/2" | -- | 1600 | Roller | 13 | 6.00008.169 |
| 8" | A7-18G | 1" | 1-15/16" | 3-1/4" | 3/4" | 3-1/2" | 3" | -- | 2500 | Delrin | 17-1/4 | 7.00008.171 |
| 8" | I7-18G | 1" | 1-15/16" | 3-1/4" | 3/4" | 3-1/2" | 3" | -- | 2000 | Roller | 17-1/4 | 7.00008.179 |
| 8" | I7-18H | 1-1/4" | 1-15/16" | 3-1/4" | 3/4" | 3-9/16" | 3" | -- | 2000 | Roller | 17-1/2 | 8.00008.179 |
| 10" | I6-101F | 3/4" | 1-3/16" | 2-3/4" | 1/2" | 3" | 2-1/2" | -- | 1600 | Roller | 18 | 6.00010.169 |
| 10" | A7-101G | 1" | 1-15/16" | 3-1/4" | 3/4" | 3-1/2" | 3" | -- | 2900 | Delrin | 20-1/2 | 7.00010.171 |
| 10" | I7-101G | 1" | 1-15/16" | 3-1/4" | 3/4" | 3-1/2" | 3" | -- | 2900 | Roller | 20-1/2 | 7.00010.179 |
| 10" | I7-101H | 1-1/4" | 1-15/16" | 3-1/4" | 3/4" | 3-1/2" | 3" | -- | 2900 | Roller | 20-1/2 | 8.00010.179 |
| 12" | A7-121G | 1" | 1-15/16" | 3-1/4" | 3/4" | 3-1/2" | 3" | -- | 3500 | Delrin | 23-1/2 | 7.00012.171 |
| 12" | I7-121G | 1" | 1-15/16" | 3-1/4" | 3/4" | 3-1/2" | 3" | -- | 3500 | Roller | 23-1/2 | 7.00012.179 |
| 12" | I7-121H | 1-1/4" | 1-15/16" | 3-1/4" | 3/4" | 3-9/16" | 3" | -- | 3500 | Roller | 23-1/2 | 8.00012.179 |
