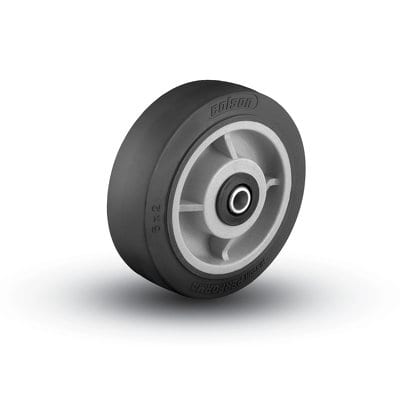

Colson 5-7 Series Performa Rubber Flat Black Tread Wheels
| Wheel Diameter | Wheel Model | Wheel Bearing Bore | Wheel Bore Less Bearing | Wheel Hub Length | Spanner Bore | Spanner Length | Thread With | Thread Guard | Capacity | Wheel Description | Weight | Swivel Top Plate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4" | 2E54-4E | 1/2" | 1-3/16" | 2-3/16" | -- | -- | 2" | -- | 400 | PPBB | 1-1/4 | 5.00004.455.2 |
| 4" | 2A5-44E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | -- | 400 | Delrin | 1-1/2 | 5.00004.451.2 |
| 4" | 2E5-44E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | -- | 400 | Roller | 1-1/2 | 5.00004.455.2 |
| 5" | 2E54-5E | 1/2" | 1-3/16" | 2-3/16" | -- | -- | 2" | TG1: E3-2587E TG2: B3-2587E | 500 | PPBB | 1-1/2 | 5.00005.455.2 |
| 5" | 2A5-45E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | 500 | Delrin | 1-1/2 | 5.00005.451.2 | |
| 5" | 2I5-45E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | 500 | Roller | 1-1/2 | 5.00005.459.2 | |
| 6" | 2E54-6E | 1/2" | 1-3/16" | 2-3/16" | -- | -- | 2" | TG1: G0-2409E TG2: I2-2587E | 500 | PPBB | 1-3/4 | 5.00006.455.2 |
| 6" | 2A5-46E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | 600 | Delrin | 1-3/4 | 5.00006.451.2 | |
| 6" | 2I5-46E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | 600 | Roller | 1-3/4 | 5.00006.459.2 | |
| 8" | 2E54-8E | 1/2" | 1-3/16" | 2-3/16" | -- | -- | 2" | TG1:DO-2587E TG2: C0-2587E | 500 | PPBB | 2-1/2 | 5.00008.455.2 |
| 8" | 2A5-48E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | 675 | Delrin | 2-1/2 | 5.00008.451.2 | |
| 8" | 2I5-48E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | 675 | Roller | 2-1/2 | 5.00008.459.2 | |
| 10" | 2A5-01G | 1" | 1-15/16" | 3-1/4" | 3/4" | 3-1/2 | 2-1/2" | -- | 1000 | Delrin | 6 | 7.00010.451.2 |
| 10" | 2I5-01G | 1" | 1-15/16" | 3-1/4" | 3/4" | 3-1/2" | 2-1/2" | -- | 1000 | Roller | 6-1/4 | 7.00010.459.2 |
| 12" | 2A5-21G | 1" | 1-15/16" | 3-1/4" | 3/4" | 3-1/2 | 3" | -- | 1700 | Delrin | 7 | 7.00012.451.2 |
| 12" | 2I5-21G | 1" | 1-15/16" | 3-1/4" | 3/4" | 3-1/2" | 3" | -- | 1700 | Roller | 7-1/2 | 7.00012.459.2 |
