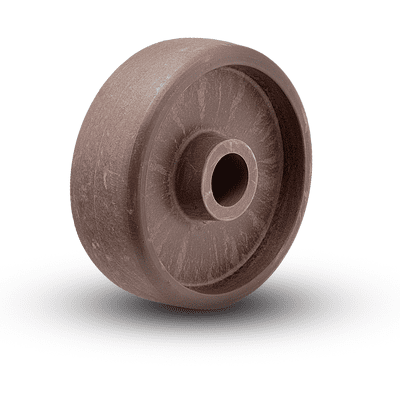

Colson Series 2-5 Thermo High Temp Wheels
| Wheel Diameter | Wheel Model | Wheel Bearing Bore | Wheel Bore Less Bearing | Wheel Hub Length | Spanner Bore | Spanner Length | Thread With | Thread Guard | Capacity | Wheel Description | Weight | Swivel Top Plate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3" | THB1-83D | -- | 3/4" | 1-3/4" | 3/8" | 1-7/8 or 2-7/16" | 1-1/2" | -- | 600 | Plain | 1/2 | 4.00003.812(HT) |
| 3" | THI1-83D | 3/4" | 1-3/16" | 1-5/8" | 3/8" | 1-7/8 or 2-7/16" | 1-1/2" | -- | 600 | Roller | 1/2 | 4.00003.819(HT) |
| 3-1/2" | THB5-3B | -- | 1/2" | 1-7/16" | 3/8" | 1-1/2" | 1-1/4" | -- | 300 | Plain | 3/8 | 2.0000B.352(HT) |
| 4" | THB5-4B | -- | 1/2" | 1-7/16" | 3/8" | 1-1/2" | 1-1/4" | -- | 300 | Plain | 3/4 | 2.0000B.452(HT) |
| 4" | THB1-84D | -- | 3/4" | 1-3/4" | 3/8" | 1-7/8 or 2-7/16" | 1-1/2" | -- | 700 | Plain | 3/4 | 4.00004.812(HT) |
| 4" | THI1-84D | 3/4" | 1-3/16" | 1-5/8" | 3/8" | 1-7/8 or 2-7/16" | 1-1/2" | -- | 700 | Roller | 3/4 | 4.00004.819(HT) |
| 4" | THB3-84E | -- | 3/4" | 2-3/8" | 3/8" | 2-7/16" | 2" | -- | 800 | Plain | 3/4 | 5.00004.832(HT) |
| 4" | THI3-84E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | -- | 800 | Roller | 3/4 | 5.00004.839(HT) |
| 5" | THB5-5B | -- | 1/2" | 1-7/16" | 1/2" | 1-1/2" | 1-1/4" | -- | 800 | Plain | 1 | 2.0000B.552(HT) |
| 5" | THB1-85D | -- | 3/4" | 1-3/4" | 1/2" | 1-7/8 or 2-7/16" | 1-1/2" | -- | 800 | Plain | 3/4 | 4.00005.812(HT) |
| 5" | THI1-85D | 3/4" | 1-3/16" | 1-5/8" | 1/2" | 1-7/8 or 2-7/16" | 1-1/2" | -- | 800 | Roller | 3/4 | 4.00005.819(HT) |
| 5" | THB3-85E | -- | 3/4" | 2-3/8" | 1/2" | 2-7/16" | 2" | -- | 1000 | Plain | 1 | 5.00005.832(HT) |
| 5" | THI3-85E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | - | 1000 | Roller | 1 | 5.00005.839(HT) |
| 6" | THB3-86E | -- | 3/4" | 2-3/8" | 3/8" | 2-7/16" | 2" | -- | 1100 | Plain | 1-2/3 | 5.00006.832(HT) |
| 6" | THI3-86E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | -- | 1100 | Roller | 1-2/3 | 5.00006.839(HT) |
