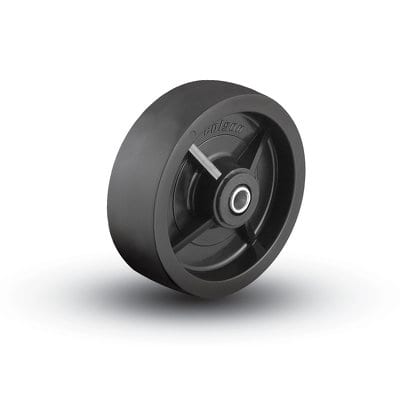

Colson 3-7 Series Polyolefin Wheels
| Wheel Diameter | Wheel Model | Wheel Bearing Bore | Wheel Bore Less Bearing | Wheel Hub Length | Spanner Bore | Spanner Length | Thread With | Thread Guard | Capacity | Wheel Description | Weight | Swivel Top Plate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3" | A0-83C | 3/4" | 1-3/16" | 1-5/8" | 3/8" | 1-7/8" | 1-1/2" | TG1: B6-0522E | 300 | Delrin | 1/2 | 3.00003.801 |
| 3" | B0-83C | -- | 3/4" | 1-5/8" | 3/8" | 1-7/8" | 1-1/2" | 300 | Plain | 1/2 | 3.00003.802 | |
| 3" | I0-83C | 3/4" | 1-3/16" | 1-5/8" | 3/8" | 1-7/8" | 1-1/2" | 300 | Roller | 1/2 | 3.00003.809 | |
| 3" | A1-83D | 3/4" | 1-3/16" | 1-5/8" | 1/2" | 1-7/8 or 2-7/16" | 1-1/2" | TG1: B1-2587E | 300 | Delrin | 1/2 | 4.00003.811 |
| 3" | B1-83D | -- | 3/4" | 1-5/8" | 1/2" | 1-7/8 or 2-7/16" | 1-1/2" | 300 | Plain | 1/2 | 4.00003.812 | |
| 3" | I1-83D | 3/4" | 1-3/16" | 1-5/8" | 1/2" | 1-7/8 or 2-7/16" | 1-1/2" | 300 | Roller | 1/2 | 4.00003.819 | |
| 4" | A0-84C | 3/4" | 1-3/16" | 1-5/8" | 3/8" | 1-7/8" | 1-1/2" | TG1: F0-2587E | 375 | Delrin | 3/4 | 3.00004.801 |
| 4" | B0-84C | -- | 3/4" | 1-5/8" | 3/8" | 1-7/8" | 1-1/2" | 375 | Plain | 3/4 | 3.00004.802 | |
| 4" | I0-84C | 3/4" | 1-3/16" | 1-5/8" | 3/8" | 1-7/8" | 1-1/2" | 375 | Roller | 3/4 | 3.00004.809 | |
| 4" | A0-84D | 3/4" | 1-3/16" | 1-5/8" | 1/2" | 1-7/8 or 2-7/16" | 1-1/2" | TG1: G0-2587E | 375 | Delrin | 3/4 | 4.00004.801 |
| 4" | B1-84D | -- | 3/4" | 1-5/8" | 1/2" | 1-7/8 or 2-7/16" | 1-1/2" | 375 | Plain | 3/4 | 4.00004.812 | |
| 4" | I1-84D | 3/4" | 1-3/16" | 1-5/8" | 1/2" | 1-7/8 or 2-7/16" | 1-1/2" | 375 | Roller | 3/4 | 4.00004.819 | |
| 4" | A3-84E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | 500 | Delrin | 3/4 | 5.00004.831 | |
| 4" | B3-84E | -- | 3/4" | 2-3/16" | 1/2" | 2-7/16" | 2" | 500 | Plain | 3/4 | 5.00004.832 | |
| 4" | I3-84E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | 500 | Roller | 3/4 | 5.00004.839 | |
| 5" | A0-85C | 3/4" | 1-3/16" | 1-5/8" | 3/8" | 1-7/8" | 1-1/2" | TG1 F687E | 450 | Delrin | 3/4 | 3.00005.801 |
| 5" | B0-85C | -- | 3/4" | 1-5/8" | 3/8" | 1-7/8" | 1-1/2" | 450 | Plain | 3/4 | 3.00005.802 | |
| 5" | I0-85C | 3/4" | 1-3/16" | 1-5/8" | 3/8" | 1-7/8" | 1-1/2" | 450 | Roller | 3/4 | 3.00005.809 | |
| 5" | A0-85D | 3/4" | 1-3/16" | 1-5/8" | 1/2" | 1-7/8 or 2-7/16" | 1-1/2" | TG1:A0-6687E | 450 | Delrin | 3/4 | 4.00005.801 |
| 5" | B0-85D | -- | 3/4" | 1-5/8" | 1/2" | 1-7/8 or 2-7/16" | 1-1/2" | 450 | Plain | 3/4 | 4.00005.802 | |
| 5" | I1-85D | 3/4" | 1-3/16" | 1-5/8" | 1/2" | 1-7/8 or 2-7/16" | 1-1/2" | 650 | Roller | 3/4 | 4.00005.819 | |
| 5" | A3-85E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | 650 | Delrin | 1 | 5.00005.831 | |
| 5" | B3-85E | -- | 3/4" | 2-3/16" | 1/2" | 2-7/16" | 2" | 650 | Plain | 1 | 5.00005.832 | |
| 5" | I3-85E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | 650 | Roller | 1 | 5.00005.839 | |
| 6" | A0-86C | 3/4" | 1-3/16" | 1-5/8" | 3/8" | 1-7/8" | 1-1/2" | TG1: F5-0522E | 500 | Delrin | F5 | 3.00006.801 |
| 6" | B0-86C | 3/4" | 1-3/16" | 1-5/8" | 3/8" | 1-7/8" | 1-1/2" | 500 | Plain | 1 | 3.00006.802 | |
| 6" | I0-86C | 3/4" | 1-3/16" | 1-5/8" | 3/8" | 1-7/8" | 1-1/2" | 500 | Roller | 1 | 3.00006.809 | |
| 6" | B0-86D | 3/4" | 1-3/16" | 1-5/8" | 1/2" | 1-7/8 or 2-7/16" | 1-1/2" | TG1:E0-1557E | 500 | Plain | 1 | 4.00006.802 |
| 6" | A0-86D | 3/4" | 1-3/16" | 1-5/8" | 1/2" | 1-7/8 or 2-7/16" | 1-1/2" | 500 | Delrin | 1 | 4.00006.801 | |
| 6" | I1-86D | 3/4" | 1-3/16" | 1-5/8" | 1/2" | 1-7/8 or 2-7/16" | 1-1/2" | 500 | Roller | 1 | 4.00006.819 | |
| 6" | A3-86E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | 700 | Delrin | 1-1/4 | 5.00006.831 | |
| 6" | B3-86E | -- | 3/4" | 2-3/16" | 1/2" | 2-7/16" | 2" | 700 | Plain | 1-1/4 | 5.00006.832 | |
| 6" | I3-86E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | 700 | Roller | 1-1/4 | 5.00006.839 | |
| 8" | A0-88C | 3/4" | 1-3/16" | 1-5/8" | 3/8" | 1-7/8" | 1-1/2" | -- | 800 | Delrin | 1 | 3.00008.801 |
| 8" | A0-88C | 3/4" | 1-3/16" | 1-5/8" | 3/8" | 1-7/8" | 1-1/2" | 800 | Plain | 1 | 3.00008.801 | |
| 8" | I0-88C | 3/4" | 1-3/16" | 1-5/8" | 3/8" | 1-7/8" | 1-1/2" | 800 | Roller | 1 | 3.00008.809 | |
| 8" | A0-88D | 3/4" | 1-3/16" | 1-5/8" | 1/2" | 1-7/8 or 2-7/16" | 1-1/2" | TG1: J2-2587E | 800 | Delrin | 1 | 4.00008.801 |
| 8" | B0-88D | -- | 3/4" | 1-5/8" | 1/2" | 1-7/8 or 2-7/16" | 1-1/2" | 800 | Plain | 1 | 4.00008.802 | |
| 8" | I1-88D | 3/4" | 1-3/16" | 1-5/8" | 1/2" | 1-7/8 or 2-7/16" | 1-1/2" | 800 | Roller | 1 | 4.00008.819 | |
| 8" | A3-88E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | 1000 | Delrin | 1-1/2 | 5.00008.831 | |
| 8" | A3-88E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | 1000 | Delrin | 1-1/2 | 5.00008.831 | |
| 8" | I3-88E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | 1000 | Roller | 1-1/2 | 5.00008.839 |
