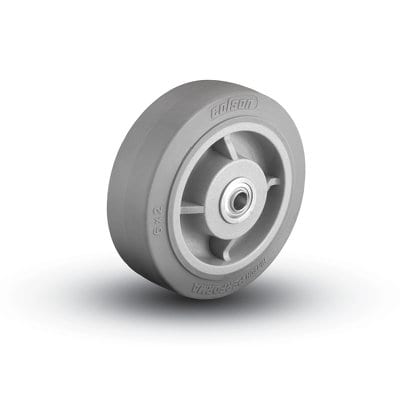

Colson 3-5 Series Performa Rubber Flat Grey Tread Wheels
| Wheel Diameter | Wheel Model | Wheel Bearing Bore | Wheel Bore Less Bearing | Wheel Hub Length | Spanner Bore | Spanner Length | Thread With | Thread Guard | Capacity | Wheel Description | Weight | Swivel Top Plate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3" | A44-3C | 3/4" | 1-3/16" | 1-5/8" | 3/8" | 1-7/8" | 1-1/2" | -- | 250 | Delrin | 3/4 | 3.00003.441 |
| 3" | I44-3C | 3/4" | 1-3/16" | 1-5/8" | 3/8" | 1-7/8" | 1-1/2" | -- | 250 | Roller | 1 | 3.00003.449 |
| 3" | A44-3D | 3/4" | 1-3/16" | 1-5/8" | 1/2" | 1-7/8 or 2-7/16" | 1-1/2" | -- | 250 | Delrin | 3/4 | 4.00003.441 |
| 3" | I44-3D | 3/4" | 1-3/16" | 1-5/8" | 1/2" | 1-7/8 or 2-7/16" | 1-1/2" | -- | 250 | Roller | 1 | 4.00003.449 |
| 4" | A44-4C | 3/4" | 1-3/16" | 1-5/8" | 3/8" | 1-7/8" | 1-1/2" | -- | 325 | Delrin | 1 | 3.00004.441 |
| 4" | I44-4C | 3/4" | 1-3/16" | 1-5/8" | 3/8" | 1-7/8" | 1-1/2" | -- | 325 | Roller | 1-1/4 | 3.00004.449 |
| 4" | A44-4D | 3/4" | 1-3/16" | 1-5/8" | 1/2" | 1-7/8 or 2-7/16" | 1-1/2" | 325 | Delrin | 1 | 4.00004.441 | |
| 4" | I44-4D | 3/4" | 1-3/16" | 1-5/8" | 1/2" | 1-7/8 or 2-7/16" | 1-1/2" | -- | 325 | Roller | 1-1/4 | 4.00004.449 |
| 4" | A54-4E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | -- | 400 | Delrin | 1-1/4 | 5.00004.451 |
| 4" | I5-44E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | -- | 400 | Roller | 1-1/2 | 5.00004.459 |
| 4" | E5-44E | 1/2" | 1-3/16" | 2-3/16" | -- | -- | 2" | -- | 400 | PPBB | 1-1/2 | 5.00004.455 |
| 5" | A44-5C | 3/4" | 1-3/16" | 1-5/8" | 3/8" | 1-7/8" | 1-1/2" | -- | 350 | Delrin | 1-1/4 | 3.00005.441 |
| 5" | I44-5C | 3/4" | 1-3/16" | 1-5/8" | 3/8" | 1-7/8" | 1-1/2" | -- | 350 | Roller | 1-1/2 | 3.00005.449 |
| 5" | A44-5D | 3/4" | 1-3/16" | 1-5/8" | 1/2" | 1-7/8 or 2-7/16" | 1-1/2" | 350 | Delrin | 1-1/4 | 4.00005.441 | |
| 5" | I44-5D | 3/4" | 1-3/16" | 1-5/8" | 1/2" | 1-7/8 or 2-7/16" | 1-1/2" | -- | 350 | Roller | 1-1/2 | 4.00005.449 |
| 5" | A54-5E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | TG1: E3-2587E TG2: B3-2587E | 500 | Delrin | 1-1/2 | 5.00005.451 |
| 5" | I5-45E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | 500 | Roller | 1-1/2 | 5.00005.459 | |
| 5" | E5-45E | 1/2" | 1-3/16" | 2-3/16" | -- | -- | 2" | 500 | PPBB | 1-1/2 | 5.00005.455 | |
| 6" | A44-6C | 3/4" | 1-3/16" | 1-5/8" | 3/8" | 1-7/8" | 1-1/2" | -- | 375 | Delrin | 1-1/2 | 3.00006.441 |
| 6" | I44-6C | 3/4" | 1-3/16" | 1-5/8" | 3/8" | 1-7/8" | 1-1/2" | -- | 375 | Roller | 1-3/4 | 3.00006.449 |
| 6" | A44-6D | 3/4" | 1-3/16" | 1-5/8" | 1/2" | 1-7/8 or 2-7/16" | 1-1/2" | 375 | Delrin | 1-1/2 | 4.00006.441 | |
| 6" | I44-6D | 3/4" | 1-3/16" | 1-5/8" | 1/2" | 1-7/8 or 2-7/16" | 1-1/2" | -- | 375 | Roller | 1-3/4 | 4.00006.449 |
| 6" | E54-6E | 1/2" | 1-3/16" | 2-3/16" | -- | -- | 2" | TG1: G0-2409E TG2: I2-2587E | 500 | PPBB | 1-3/4 | 5.00006.455 |
| 6" | A5-46E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | 600 | Delrin | 1-3/4 | 5.00006.451 | |
| 6" | I5-46E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | 600 | Roller | 1-3/4 | 5.00006.459 | |
| 8" | A44-8C | 3/4" | 1-3/16" | 1-5/8" | 3/8" | 1-7/8" | 1-1/2" | -- | 375 | Delrin | 2-1/4 | 3.00008.441 |
| 8" | I44-8C | 3/4" | 1-3/16" | 1-5/8" | 3/8" | 1-7/8" | 1-1/2" | -- | 375 | Roller | 2-1/4 | 3.00008.449 |
| 8" | A44-8D | 3/4" | 1-3/16" | 1-5/8" | 1/2" | 1-7/8 or 2-7/16" | 1-1/2" | 375 | Delrin | 2-1/4 | 4.00008.441 | |
| 8" | I44-8D | 3/4" | 1-3/16" | 1-5/8" | 1/2" | 1-7/8 or 2-7/16" | 1-1/2" | -- | 375 | Roller | 2-1/4 | 4.00008.449 |
| 8" | E54-8E | 1/2" | 1-3/16" | 2-3/16" | -- | -- | 2" | TG1:BO-2587E TG2: C0-2587E | 500 | PPBB | 2-1/2 | 5.00008.455 |
| 8" | A5-48E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | 675 | Delrin | 2-1/2 | 5.00008.451 | |
| 8" | I5-48E | 3/4" | 1-3/16" | 2-3/16" | 1/2" | 2-7/16" | 2" | 675 | Roller | 2-1/2 | 5.00008.459 |
