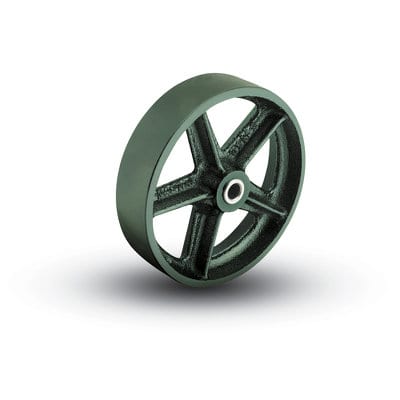

Colson 2-4 Series Cast Iron Wheels
| Wheel Diameter | Wheel Model | Wheel Bearing Bore | Wheel Bore Less Bearing | Wheel Hub Length | Spanner Bore | Spanner Length | Thread With | Thread Guard | Capacity | Wheel Description | Weight | Swivel Top Plate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2-7/16" | B1-2B | 5/8" | -- | 1-15/32" | 3/8" | 1-1/2" | 1-1/4" | TG1: AO-4587E | 200 | Sleeve | 3/4 | 2.00002.12 |
| 3" | D1-3B | 5/8" | -- | 1-15/32" | 3/8" | 1-1/2" | 1-1/4" | -- | 200 | Sleeve | 1-1/4" | 2.00003.14 |
| 3" | A0-13C | 3/4" | 1-3/16" | 1-5/8" | 3/8" | 1-7/8" | 1-1/2" | TG1: B6-0522E | 425 | Delrin | 2-3/8 | 3.00003.101 |
| 3" | I0-13C | 3/4" | 1-3/16" | 1-5/8" | 3/8" | 1-7/8" | 1-1/2" | 425 | Roller | 2-3/8 | 3.00003.109 | |
| 3" | I1-13D | 3/4" | 1-3/16" | 1-5/8" | 1/2" | 1-7/8 or 2-7/16" | 1-1/2" | TG1: B1-2587E | 425 | Delrin | 2-3/8 | 4.00003.119 |
| 3" | I1-13D | 3/4" | 1-3/16" | 1-5/8" | 1/2" | 1-7/8 or 2-7/16" | 1-1/2" | 425 | Roller | 2-3/8 | 4.00003.119 | |
| 3-1/2" | B1-3B | 5/8" | -- | 1-15/32" | 3/8" | 1-1/2" | 1-1/4" | -- | 300 | Sleeve | 1-1/2 | 2.00003.12 |
| 4" | B1-4B | 5/8" | -- | 1-15/32" | 3/8" | 1-1/2" | 1-1/4" | -- | 300 | Sleeve | 1 | 2.0000B.412 |
| 4" | A0-14C | 3/4" | 1-3/16" | 1-5/8" | 3/8" | 1-7/8" | 1-1/2" | -- | 500 | Delrin | 1 | 3.00004.101 |
| 4" | I0-14C | 3/4" | 1-3/16" | 1-5/8" | 3/8" | 1-7/8" | 1-1/2" | 500 | Roller | 1 | 3.00004.109 | |
| 4" | A1-14D | 3/4" | 1-3/16" | 1-5/8" | 1/2" | 1-7/8 or 2-7/16" | 1-1/2" | TG1: D9-7002E | 500 | Delrin | 1-1/8 | 4.00004.111 |
| 4" | I1-14D | 3/4" | 1-3/16" | 1-5/8" | 1/2" | 1-7/8 or 2-7/16" | 1-1/2" | 500 | Roller | 1-1/8 | 4.00004.119 | |
| 5" | B1-5B | 5/8" | -- | 1-15/32" | 3/8" | 1-1/2" | 1-1/4" | TG1: B0-1557E | 300 | Sleeve | 1 | 2.00005.12 |
| 5" | A0-15C | 3/4" | 1-3/16" | 1-5/8" | 3/8" | 1-7/8" | 1-1/2" | TG1: F5-0522E | 600 | Delrin | 1 | 3.00005.101 |
| 5" | I0-15C | 3/4" | 1-3/16" | 1-5/8" | 3/8" | 1-7/8" | 1-1/2" | 600 | Roller | 1 | 3.00005.109 | |
| 5" | A1-15D | 3/4" | 1-3/16" | 1-5/8" | 1/2" | 1-7/8 or 2-7/16" | 1-1/2" | TG1: E0-1557E | 600 | Delrin | 1-1/2 | 4.00005.111 |
| 5" | I1-15D | 3/4" | 1-3/16" | 1-5/8" | 1/2" | 1-7/8 or 2-7/16" | 1-1/2" | 600 | Roller | 1-1/2 | 4.00005.119 | |
| 6" | A0-16C | 3/4" | 1-3/16" | 1-5/8" | 3/8" | 1-7/8" | 1-1/2" | TG1: F1-2587E | 600 | Delrin | 1-3/4 | 3.00006.101 |
| 6" | I0-16C | 3/4" | 1-3/16" | 1-5/8" | 3/8" | 1-7/8" | 1-1/2" | 600 | Roller | 1-3/4 | 3.00006.109 | |
| 6" | A1-16D | 3/4" | 1-3/16" | 1-5/8" | 1/2" | 1-7/8 or 2-7/16" | 1-1/2" | TG1: D0-2587E | 600 | Delrin | 2 | 4.00006.111 |
| 6" | I1-16D | 3/4" | 1-3/16" | 1-5/8" | 1/2" | 1-7/8 or 2-7/16" | 1-1/2" | 600 | Roller | 2 | 4.00006.119 |
