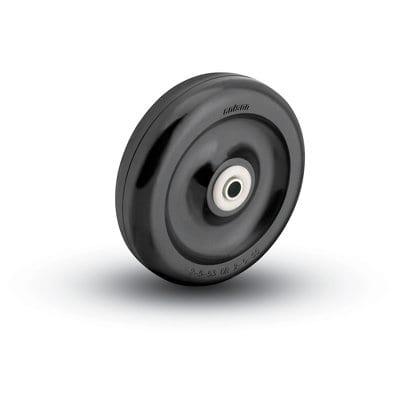

Colson 1-2 Series Polyolefin Wheels
| Wheel Diameter | Wheel Model | Wheel Bearing Bore | Wheel Bore Less Bearing | Wheel Hub Length | Spanner Bore | Spanner Length | Thread With | Thread Guard | Capacity | Wheel Description | Weight | Swivel Top Plate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1-5/8" | B5-1A | 5/16" | 1/2" | 1-1/32" | -- | -- | 7/8" | -- | 75 | Delrin | 1/16 | 1.00001.52 |
| 2" | B5-2A | 5/16" | 1/2" | 1-1/32" | -- | -- | 7/8" | -- | 100 | Delrin | 1/8 | 1.00002.52 |
| 2/1/02 | C5-2B | 1/2" | 29/32" | 1-7/16" | 3/8" | 1-1/2" | 1-1/4" | TG1:B587E | 200 | Delrin | 1/4 | 2.00002.53 |
| 2-1/2" | E5-2B | 3/8" | -- | 1-1/2" | -- | -- | 1-1/4" | 200 | Ball | 1/4 | 2.00002.55 | |
| 3" | C5-3A | 7/16" | 5/8" | 1-1/32" | 5/16" | 1-7/64" | 7/8" | TG1: CO-2587E | 125 | Delrin | 5 | 1.00003.53 |
| 3" | B9-3B | -- | 1/2" | 1-7/16" | 3/8" | 1-1/2" | 1-1/4" | -- | 200 | Plain | 1/3 | 2.00003.92 |
| 3-1/2" | C5-3B | 1/2" | 29/32" | 1-7/16" | 3/8" | 1-1/2" | 1-1/4" | TG1: A0-4587E | 250 | Delrin | 3/8 | 2.00003.53 |
| 3-1/2" | E5-3B | 3/8" | -- | 1-1/2" | -- | -- | 1-1/4" | 250 | Ball | 3/8 | 2.00003.55 | |
| 4" | C5-4A | 7/16" | 5/8" | 1-1/32" | 5/16" | 1-7/64" | 7/8" | -- | 135 | Delrin | 3/8 | 1.00004.53 |
| 4" | C5-4B | 1/2" | 29/32" | 1-7/16" | 3/8" | 1-1/2" | 1-1/4" | TG1: A0-4587E | 275 | Delrin | 1/2 | 2.00004.53 |
| 4" | E5-4B | 3/8" | -- | 1-1/2" | -- | -- | 1-1/4" | 275 | Ball | 1/2 | 2.00004.55 | |
| 5" | C5-4A | 7/16" | 5/8" | 1-1/32" | 5/16" | 1-7/164" | 7/8" | -- | 145 | Delrin | 1/2 | 1.00004.53 |
| 5" | C5-5B | 1/2" | 29/32" | 1-7/16" | 3/8" | 1-1/2" | 1-1/4" | TG1: CO-6687E TG2: C4-2587E | 300 | Delrin | 3/4 | 2.00005.53 |
| 5" | E5-5B | 3/8" | -- | 1-1/2" | -- | -- | 1-1/4" | 300 | Ball | 3/4 | 2.00005.55 |
