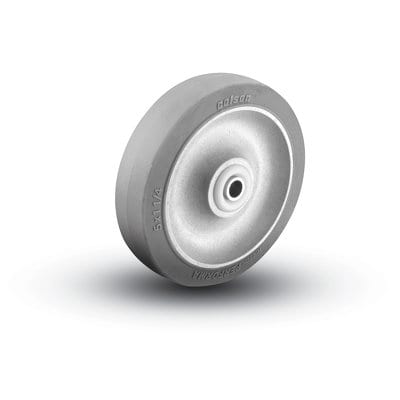

Colson Series 1-2 Performa Rubber Flat Grey Tread Wheels
| Wheel Diameter | Wheel Model | Wheel Bearing Bore | Wheel Bore Less Bearing | Wheel Hub Length | Spanner Bore | Spanner Length | Thread With | Thread Guard | Capacity | Wheel Description | Weight | Swivel Top Plate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1-5/8" | A44-1A | 5/16" | 1/2" | 1/1/32 | -- | -- | 7/8" | -- | 60 | Delrin | 1/4 | 1.00001.441 |
| 2" | A44-2A | 5/16" | 1/2" | 1/1/32 | -- | -- | 7/8" | -- | 75 | Delrin | 1/4 | 1.00002.441 |
| 2-1/2" | A44-2B | 3/8" | 29/32" | 1/7/16 | 3/8" | 1-1/2" | 1-1/4" | -- | 140 | Delrin | 1/4 | 2.00002.441 |
| 2-1/2" | E44-2B | 3/8" | -- | 1/1/02 | -- | -- | 1-1/4" | -- | 140 | Ball | 3/8 | 2.00002.445 |
| 3" | A44-3A | 5/16" | 39/64" | 1/1/32 | 7/8" | TG1: C0-2587E | 125 | Delrin | 1/4 | 1.00003.441 | ||
| 3-1/2" | A44-3B | 3/8" | 29/32" | 1/7/16 | 1-1/4" | TG1: AO-4587E TG2: I3-2587E | 250 | Delrin | 3/8 | 2.00003.441 | ||
| 3-1/2" | E44-3B | 3/8" | -- | 1/1/02 | 1-1/4" | 250 | Ball | 1/2 | 2.00003.445 | |||
| 4" | A44-4A | 5/16" | 39/64" | 1/1/32 | 7/8" | -- | 135 | Delrin | 1/4 | 1.00004.441 | ||
| 4" | A44-4B | 3/8" | 29/32" | 1-7/16" | 1-1/4" | TG1: AO-4587E | 300 | Delrin | 5/8 | 2.00004.441 | ||
| 4" | E44-4B | 3/8" | -- | 1-1/2" | 1-1/4" | 300 | Ball | 3/4 | 2.00004.445 | |||
| 5" | A44-5A | 5/16" | 39/64" | 1/1/32 | 7/8" | TG2: B4-2587E | 145 | Delrin | 1/4 | 1.00005.441 | ||
| 5" | A44-5B | 3/8" | 29/32" | 1-7/16" | 1-1/4" | TG1: CO-6687E TG2: C4-2587E | 325 | Delrin | 3/4 | 2.00005.441 | ||
| 5" | E44-5B | 3/8" | -- | 1-1/2" | 1-1/4" | 325 | Ball | 7/8 | 2.00005.445 |
