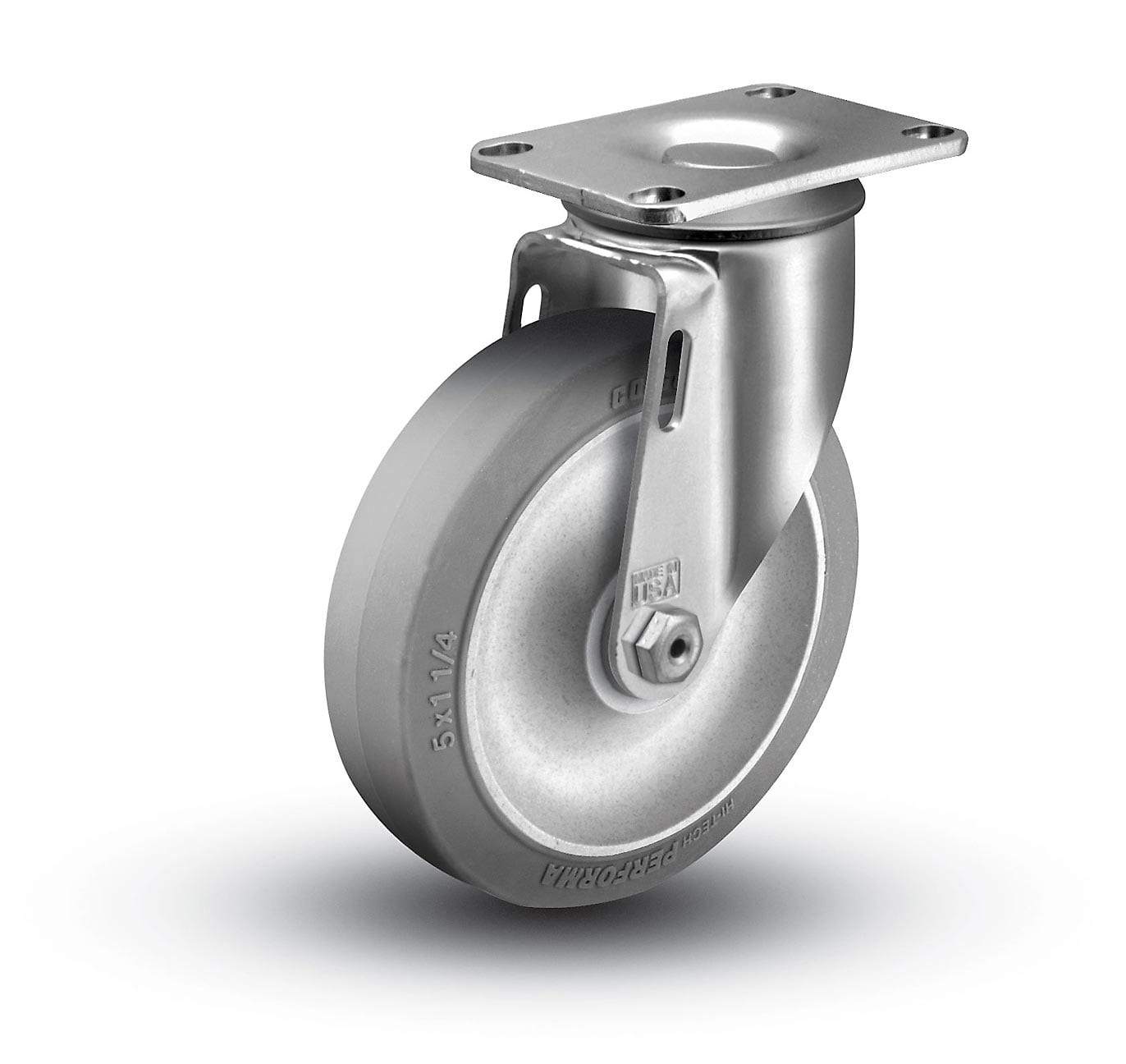

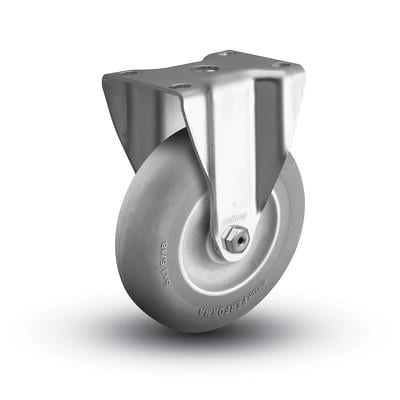

Colson 2 Series Top Plate Casters
| Wheel Diameter | Thread With | Capacity | Wheel Description | Load Height | Swivel Radius | Weight | Bearing Type | Swivel Top Plate | Rigid Top Plate |
|---|---|---|---|---|---|---|---|---|---|
| 2-1/2" | 1-1/4" | 125 | Performa Rubber (Conductive Flat) | 3-7/8 | 2-13/32 | 1-5/8 | Ball | 2.02256.445(COND) | 2.02208.445(COND) |
| 2-1/2" | 1-1/4" | 140 | Performa Rubber (Flat) | 3-7/8 | 2-13/32 | 1-5/8 | Delrin | 2.02256.441 | 2.02208.441 |
| 2-1/2" | 1-1/4" | 140 | Performa Rubber (Flat) | 3-7/8 | 2-13/32 | 1-5/8 | Ball | 2.02256.445 | 2.02208.445 |
| 2-1/2" | 1-1/4" | 200 | Polyolefin | 3-7/8 | 2-13/32 | 1-5/8 | Delrin | 2.02256.53 | 2.02208.53 |
| 2-1/2" | 1-1/4" | 200 | Polyolefin | 3-7/8 | 2-13/32 | 1-5/8 | Ball | 2.02256.55 | 2.02208.55 |
| 2-1/2" | 1-1/4" | 250 | Polyurethane HI-TECH | 3-7/8 | 2-13/32 | 1-5/8 | Delrin | 2.02256.91 | 2.02208.91 |
| 2-1/2" | 1-1/4" | 250 | Polyurethane HI-TECH | 3-7/8 | 2-13/32 | 1-5/8 | Ball | 2.02256.95 | 2.02208.95 |
| 2-1/2" | 1-1/4" | 300 | Cast Iron | 3-7/8 | 2-13/32 | 2 | Sleeve | 2.02256.12 | 2.02208.12 |
| 2-1/2" | 1-7/16" | 300 | Phenolic | 3-7/8 | 2-13/32 | 1-5/8 | Roller | 2.02256.319 | 2.02208.319 |
| 3" | 1-1/4" | 150 | Rubber HI-TECH | 4-1/8 | 2-21/32 | 2 | Plain | 2.03356.42 | 2.03308.42 |
| 3" | 1-1/4" | 200 | Polyurethane HI-TECH | 4-1/8 | 2-21/32 | 2 | Plain | 2.03356.92 | 2.03308.92 |
| 3" | 1-1/4" | 200 | Polyolefin | 4-1/8 | 2-21/32 | 2 | Delrin | 2.03356.52 | 2.03308.52 |
| 3" | 1-15/32" | 300 | Phenolic | 4-1/8 | 2-21/32 | 2-3/4 | Roller | 2.03356.319 | 2.03308.319 |
| 3-1/2" | 1-5/16" | 210 | Performa Rubber (Conductive/Round) | 4-11/16 | 2-29/32 | 2-1/4 | Ball | 2.03256.565(COND) | 2.03208.085(COND) |
| 3-1/2" | 1-5/16" | 210 | Performa Rubber (Round) | 4-11/16 | 2-29/32 | 2-1/4 | Delrin | 2.03256.561 | 2.03208.081 |
| 3-1/2" | 1-5/16" | 210 | Performa Rubber (Round) | 4-11/16 | 2-29/32 | 2-1/4 | Ball | 2.03256.565 | 2.03208.085 |
| 3-1/2" | 1-1/4" | 225 | Performa Rubber (Conductive Flat) | 4-11/16 | 2-29/32 | 2 | Ball | 2.03256.445(COND) | 2.03208.445(COND) |
| 3-1/2" | 1-1/4" | 230 | Polyolefin | 4-11/16 | 2-29/32 | 1-7/8 | Delrin | 2.03256.53 | 2.03208.53 |
| 3-1/2" | 1-1/4" | 230 | Polyolefin | 4-11/16 | 2-29/32 | 1-7/8 | Ball | 2.03256.55 | 2.03208.55 |
| 3-1/2" | 1-1/4" | 250 | Performa Rubber (Flat) | 4-11/16 | 2-29/32 | 2 | Delrin | 2.03256.441 | 2.03208.441 |
| 3-1/2" | 1-1/4" | 250 | Performa Rubber (Flat) | 4-11/16 | 2-29/32 | 2 | Ball | 2.03256.445 | 2.03208.445 |
| 3-1/2" | 1-1/4" | 250 | Polyurethane HI-TECH | 4-11/16 | 2-29/32 | 2-7/8 | Delrin | 2.03256.91 | 2.03208.91 |
| 3-1/2" | 1-1/4" | 250 | Polyurethane HI-TECH | 4-11/16 | 2-29/32 | 2-7/8 | Ball | 2.03256.95 | 2.03208.95 |
| 3-1/2" | 1-1/4" | 300 | Thermo High Temp | 4-11/16 | 2-29/32 | 2-7/8 | Plain | 2.02256.52(HT) | 2.02208.52(HT) |
| 3-1/2" | 1-1/4" | 300 | Cast Iron | 4-11/16 | 2-29/32 | 3 | Sleeve | 2.03256.12 | 2.03208.12 |
| 4" | 1-1/4" | 250 | ThermoTech Cushion High Temp | 5-1/8 | 3-7/32 | 3 | Teflon | 2.04256.613 | 2.04208.613 |
| 4" | 1-1/4" | 250 | Performa Rubber (Conductive Flat) | 5-1/8 | 3-7/32 | 2-1/4 | Ball | 2.04256.445(COND) | 2.04208.445(COND) |
| 4" | 1-1/4" | 275 | Polyolefin | 5-1/8 | 3-7/32 | 2-1/8 | Delrin | 2.04256.53 | 2.04208.53 |
| 4" | 1-1/4" | 275 | Polyolefin | 5-1/8 | 3-7/32 | 2-1/8 | Ball | 2.04256.55 | 2.04208.55 |
| 4" | 1-1/4" | 275 | Polyurethane HI-TECH | 5-1/8 | 3-7/32 | 2-1/8 | Delrin | 2.04256.91 | 2.04208.91 |
| 4" | 1-1/4" | 275 | Polyurethane HI-TECH | 5-1/8 | 3-7/32 | 2-1/8 | Ball | 2.04256.95 | 2.04208.95 |
| 4" | 1-1/4" | 300 | Performa Rubber (Flat) | 5-1/8 | 3-7/32 | 2-1/4 | Delrin | 2.04256.441 | 2.04208.441 |
| 4" | 1-1/4" | 300 | Performa Rubber (Flat) | 5-1/8 | 3-7/32 | 2-1/4 | Ball | 2.04256.445 | 2.04208.445 |
| 4" | 1-1/4" | 300 | Thermo High Temp | 5-1/8 | 3-7/32 | 3-1/8 | Plain | 2.04256.52(HT) | 2.04208.52(HT) |
| 4" | 1-1/4" | 300 | Cast Iron | 5-1/8 | 3-7/32 | 3-3/8 | Sleeve | 2.04256.12 | 2.04208.12 |
| 5" | 1-1/4" | 250 | ThermoTech Cushion High Temp | 6-3/16 | 3-13/16 | 3 | Teflon | 2.05256.613 | 2.05208.613 |
| 5" | 1-1/4" | 250 | Performa Rubber (Conductive Flat) | 6-3/16 | 3-13/16 | 3 | Ball | 2.05256.445(COND) | 2.05208.445(COND) |
| 5" | 1-5/16" | 250 | Performa Rubber (Conductive/Round) | 6-3/16 | 3-13/16 | 3 | Ball | 2.05256.565(COND) | 2.05208.085(COND) |
| 5" | 1-5/16" | 250 | Performa Rubber (Round) | 6-3/16 | 3-13/16 | 3 | Delrin | 2.05256.561 | 2.05208.081 |
| 5" | 1-1/4" | 250 | Performa Rubber (Round) | 6-3/16 | 3-13/16 | 3 | Ball | 2.05256.565 | 2.05208.085 |
| 5" | 1-1/4" | 300 | Polyolefin | 6-3/16 | 3-13/16 | 2-1/2 | Delrin | 2.05256.53 | 2.05208.53 |
| 5" | 1-1/4" | 300 | Polyolefin | 6-3/16 | 3-13/16 | 2-1.2 | Ball | 2.05256.55 | 2.05208.55 |
| 5" | 1-1/4" | 300 | Polyurethane HI-TECH | 6-3/16 | 3-13/16 | 2-1/2 | Delrin | 2.05256.91 | 2.05208.91 |
| 5" | 1-1/4" | 300 | Polyurethane HI-TECH | 6-3/16 | 3-13/16 | 2-1/2 | Ball | 2.05256.95 | 2.05208.95 |
| 5" | 1-1/4" | 300 | Cast Iron | 6-3/16 | 3-13/16 | 3-3/4 | Sleeve | 2.05256.12 | 2.05208.12 |
| 5" | 1-1/4" | 325 | Performa Rubber (Flat) | 6-3/16 | 3-13/16 | 2-3/4 | Delrin | 2.05256.441 | 2.05208.441 |
| 5" | 1-1/4" | 325 | Performa Rubber (Flat) | 6-3/16 | 3-13/16 | 2-3/4 | Ball | 2.05256.445 | 2.05208.445 |
| 5" | 1-1/4" | 325 | Thermo High Temp | 6-3/16 | 3-13/16 | 3-1/2 | Plain | 2.05256.52(HT) | 2.05208.52(HT) |
