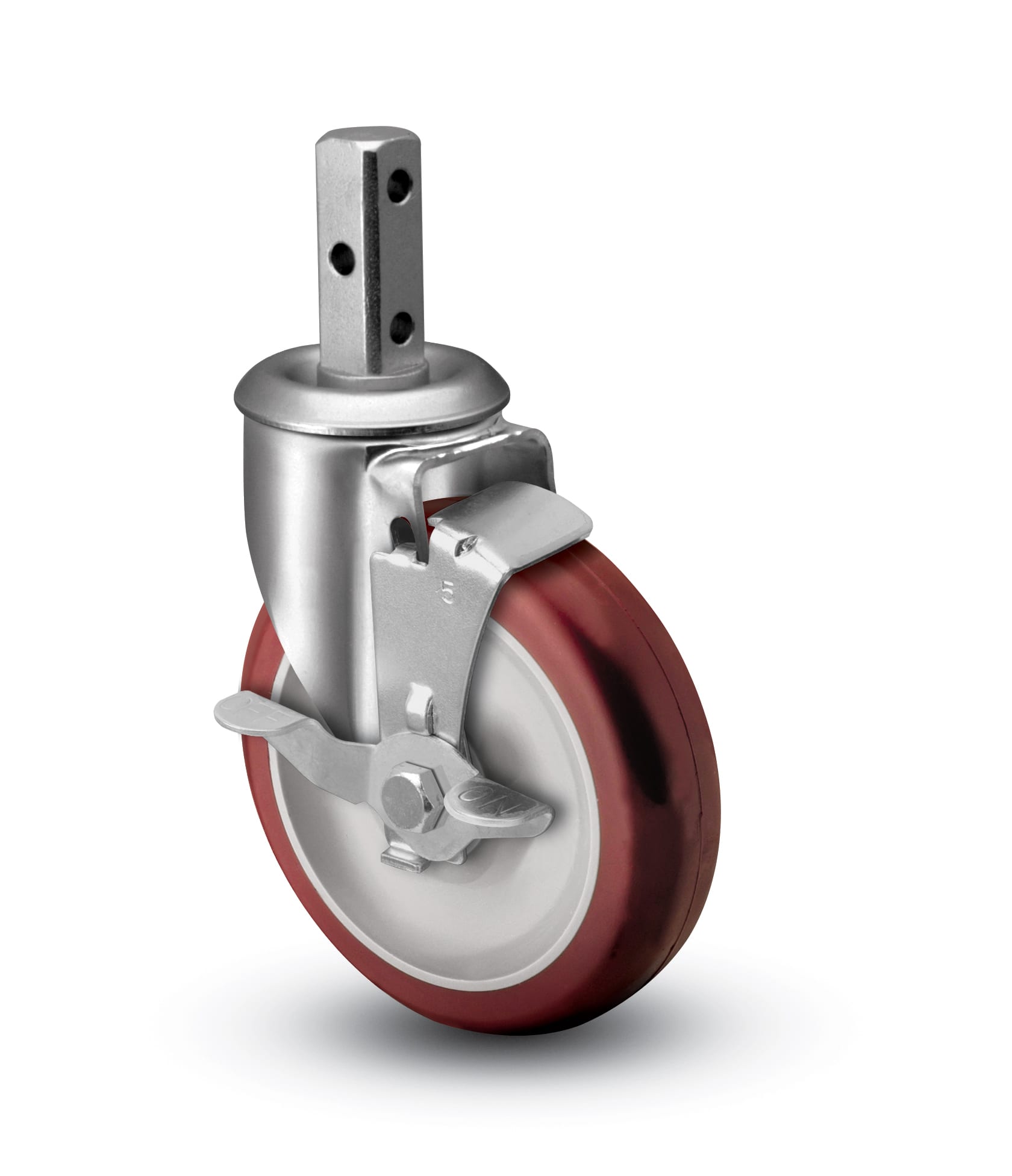

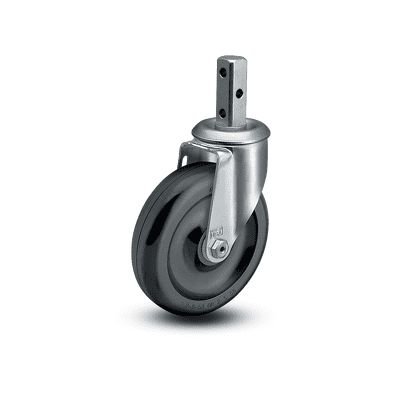

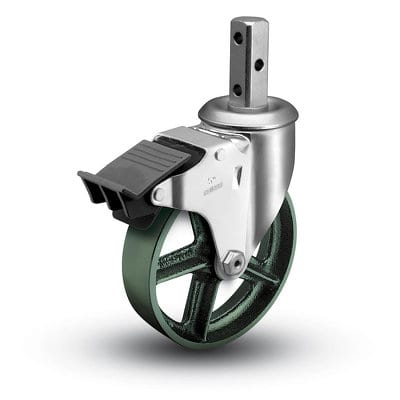

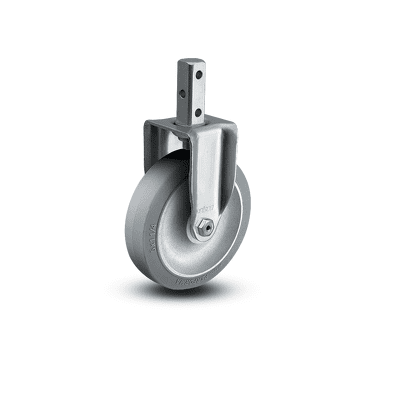

Colson 2 Series Square Stem Casters
| Wheel Diameter | Thread With | Capacity | Wheel Description | Load Height | Swivel Radius | Weight | Bearing Type | Swivel Top Plate |
|---|---|---|---|---|---|---|---|---|
| 2-1/2" | 1-1/4" | 125 | Performa Rubber (Conductive Flat) | 3-3/4 | 2-13/32 | 1-5/8 | Ball | 2.02270.445(COND) |
| 2-1/2" | 1-1/4" | 140 | Performa Rubber (Flat) | 3-3/4 | 2-13/32 | 1-5/8 | Delrin | 2.02270.441 |
| 2-1/2" | 1-1/4" | 140 | Performa Rubber (Flat) | 3-3/4 | 2-13/32 | 1-5/8 | Ball | 2.02270.445 |
| 2-1/2" | 1-1/4" | 200 | Polyolefin | 3-3/4 | 2-13/32 | 1-5/8 | Delrin | 2.02270.53 |
| 2-1/2" | 1-1/4" | 200 | Polyolefin | 3-3/4 | 2-13/32 | 1-5/8 | Ball | 2.02270.55 |
| 2-1/2" | 1-1/4" | 250 | Polyurethane HI-TECH | 3-3/4 | 2-13/32 | 1-5/8 | Delrin | 2.02270.91 |
| 2-1/2" | 1-1/4" | 250 | Polyurethane HI-TECH | 3-3/4 | 2-13/32 | 1-5/8 | Ball | 2.02270.95 |
| 2-1/2" | 1-1/4" | 300 | Cast Iron | 3-3/4 | 2-13/32 | 2 | Sleeve | 2.02270.12 |
| 2-1/2" | 1-7/16" | 300 | Phenolic | 3-3/4 | 2-13/32 | 1-5/8 | Roller | 2.02270.319 |
| 3" | 1-1/4" | 150 | Rubber HI-TECH | 4 | 2-21/32 | 2 | Plain | 2.03370.42 |
| 3" | 1-1/4" | 200 | Polyurethane HI-TECH | 4 | 2-21/32 | 2 | Plain | 2.03370.92 |
| 3" | 1-1/4" | 200 | Polyolefin | 4 | 2-21/32 | 2 | Delrin | 2.03370.52 |
| 3" | 1-15/32" | 300 | Phenolic | 4 | 2-21/32 | 2-3/4 | Roller | 2.03370.319 |
| 3-1/2" | 1-5/16" | 210 | Performa Rubber (Conductive/Round) | 4-9/16 | 2-29/32 | 2-1/4 | Ball | 2.03270.565(COND) |
| 3-1/2" | 1-5/16" | 210 | Performa Rubber (Round) | 4-9/16 | 2-29/32 | 2-1/4 | Delrin | 2.03270.561 |
| 3-1/2" | 1-5/16" | 210 | Performa Rubber (Round) | 4-9/16 | 2-29/32 | 2-1/4 | Ball | 2.03270.565 |
| 3-1/2" | 1-1/4" | 225 | Performa Rubber (Conductive Flat) | 4-9/16 | 2-29/32 | 2 | Ball | 2.03270.445(COND) |
| 3-1/2" | 1-1/4" | 230 | Polyolefin | 4-9/16 | 2-29/32 | 1-7/8 | Delrin | 2.03270.53 |
| 3-1/2" | 1-1/4" | 230 | Polyolefin | 4-9/16 | 2-29/32 | 1-7/8 | Ball | 2.03270.55 |
| 3-1/2" | 1-1/4" | 250 | Performa Rubber (Flat) | 4-9/16 | 2-29/32 | 2 | Delrin | 2.03270.441 |
| 3-1/2" | 1-1/4" | 250 | Performa Rubber (Flat) | 4-9/16 | 2-29/32 | 2 | Ball | 2.03270.445 |
| 3-1/2" | 1-1/4" | 250 | Polyurethane HI-TECH | 4-9/16 | 2-29/32 | 2-7/8 | Delrin | 2.03270.91 |
| 3-1/2" | 1-1/4" | 250 | Polyurethane HI-TECH | 4-9/16 | 2-29/32 | 2-7/8 | Ball | 2.03270.95 |
| 3-1/2" | 1-1/4" | 300 | Thermo High Temp | 4-9/16 | 2-29/32 | 2-7/8 | Plain | 2.02270.52(HT) |
| 3-1/2" | 1-1/4" | 300 | Cast Iron | 4-9/16 | 2-29/32 | 3 | Sleeve | 2.03270.12 |
| 4" | 1-1/4" | 250 | ThermoTech Cushion High Temp | 5 | 3-7/32 | 3 | Teflon | 2.04270.613 |
| 4" | 1-1/4" | 250 | Performa Rubber (Conductive Flat) | 5 | 3-7/32 | 2-1/4 | Ball | 2.04270.445(COND) |
| 4" | 1-1/4" | 275 | Polyolefin | 5 | 3-7/32 | 2-1/8 | Delrin | 2.04270.53 |
| 4" | 1-1/4" | 275 | Polyolefin | 5 | 3-7/32 | 2-1/8 | Ball | 2.04270.55 |
| 4" | 1-1/4" | 275 | Polyurethane HI-TECH | 5 | 3-7/32 | 2-1/8 | Delrin | 2.04270.91 |
| 4" | 1-1/4" | 275 | Polyurethane HI-TECH | 5 | 3-7/32 | 2-1/8 | Ball | 2.04270.95 |
| 4" | 1-1/4" | 300 | Performa Rubber (Flat) | 5 | 3-7/32 | 2-1/4 | Delrin | 2.04270.441 |
| 4" | 1-1/4" | 300 | Performa Rubber (Flat) | 5 | 3-7/32 | 2-1/4 | Ball | 2.04270.445 |
| 4" | 1-1/4" | 300 | Thermo High Temp | 5 | 3-7/32 | 3-1/8 | Plain | 2.04270.52(HT) |
| 4" | 1-1/4" | 300 | Cast Iron | 5 | 3-7/32 | 3-3/8 | Sleeve | 2.04270.12 |
| 5" | 1-1/4" | 250 | ThermoTech Cushion High Temp | 6-1/16 | 3-13/16 | 3 | Teflon | 2.05270.613 |
| 5" | 1-1/4" | 250 | Performa Rubber (Conductive Flat) | 6-1/16 | 3-13/16 | 3 | Ball | 2.05270.445(COND) |
| 5" | 1-5/16" | 250 | Performa Rubber (Conductive/Round) | 6-1/16 | 3-13/16 | 3 | Ball | 2.05270.565(COND) |
| 5" | 1-5/16" | 250 | Performa Rubber (Round) | 6-1/16 | 3-13/16 | 3 | Delrin | 2.05270.561 |
| 5" | 1-1/4" | 250 | Performa Rubber (Round) | 6-1/16 | 3-13/16 | 3 | Ball | 2.05270.565 |
| 5" | 1-1/4" | 300 | Polyolefin | 6-1/16 | 3-13/16 | 2-1/2 | Delrin | 2.05270.53 |
| 5" | 1-1/4" | 300 | Polyolefin | 6-1/16 | 3-13/16 | 2-1.2 | Ball | 2.05270.55 |
| 5" | 1-1/4" | 300 | Polyurethane HI-TECH | 6-1/16 | 3-13/16 | 2-1/2 | Delrin | 2.05270.91 |
| 5" | 1-1/4" | 300 | Polyurethane HI-TECH | 6-1/16 | 3-13/16 | 2-1/2 | Ball | 2.05270.95 |
| 5" | 1-1/4" | 300 | Cast Iron | 6-1/16 | 3-13/16 | 3-3/4 | Sleeve | 2.05270.12 |
| 5" | 1-1/4" | 325 | Performa Rubber (Flat) | 6-1/16 | 3-13/16 | 2-3/4 | Delrin | 2.05270.441 |
| 5" | 1-1/4" | 325 | Performa Rubber (Flat) | 6-1/16 | 3-13/16 | 2-3/4 | Ball | 2.05270.445 |
| 5" | 1-1/4" | 325 | Thermo High Temp | 6-1/16 | 3-13/16 | 3-1/2 | Plain | 2.05270.52(HT) |
