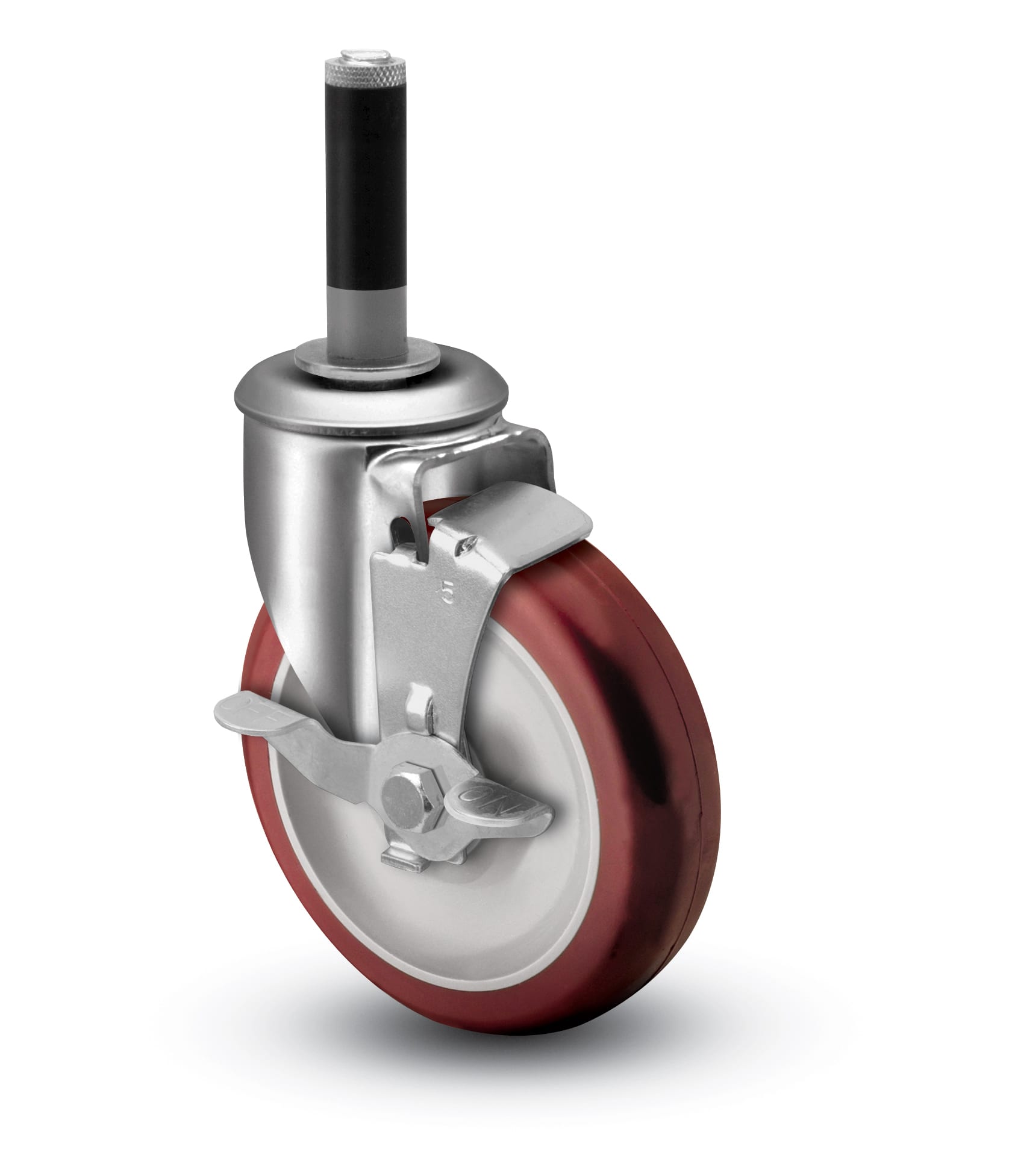

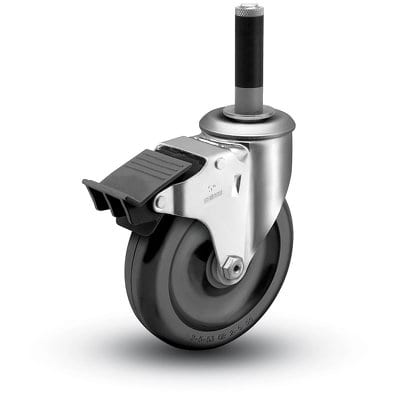

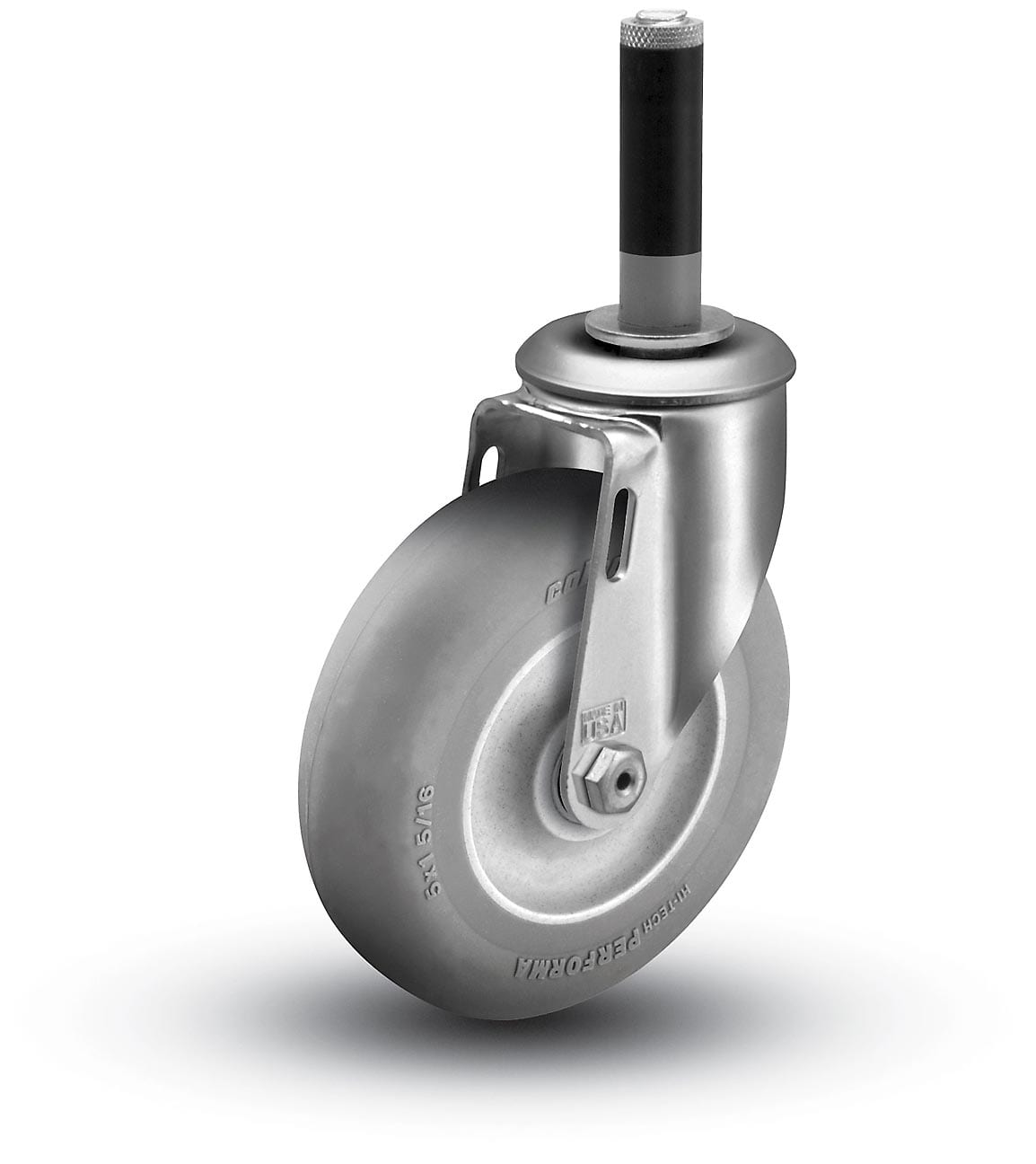

Colson Expanding Adapter Stem Casters
| Wheel Diameter | Thread With | Capacity | Wheel Description | Stem Casters | Load Height | Swivel Radius | Weight | Bearing Type | Swivel Top Plate |
|---|---|---|---|---|---|---|---|---|---|
| 2-1/2" | 1-1/4" | 125 | Performa Rubber (Conductive Flat) | 4E447622B | 4 | 2-13/32 | 1-3/4 | Ball | 2.02267.445(COND) |
| 2-1/2" | 1-1/4" | 140 | Performa Rubber (Flat) | A447622B | 4 | 2-13/32 | 1-3/4 | Delrin | 2.02267.441 |
| 2-1/2" | 1-1/4" | 140 | Performa Rubber (Flat) | E447622B | 4 | 2-13/32 | 1-3/4 | Ball | 2.02267.445 |
| 2-1/2" | 1-1/4" | 200 | Polyolefin | C57622B | 4 | 2-13/32 | 1-3/4 | Delrin | 2.02267.53 |
| 2-1/2" | 1-1/4" | 200 | Polyolefin | E57622B | 4 | 2-13/32 | 1-3/4 | Ball | 2.02267.55 |
| 2-1/2" | 1-1/4" | 250 | Polyurethane HI-TECH | A97622B | 4 | 2-13/32 | 1-1/2 | Delrin | 2.02267.91 |
| 2-1/2" | 1-1/4" | 250 | Polyurethane HI-TECH | E97622B | 4 | 2-13/32 | 1-1/2 | Ball | 2.02267.95 |
| 2-1/2" | 1-1/4" | 300 | Cast Iron | B17622B | 4 | 2-13/32 | 2-1/8 | Sleeve | 2.02267.12 |
| 2-1/2" | 1-7/16" | 300 | Phenolic | I137622B | 4 | 2-13/32 | 1-3/4 | Roller | 2.02267.319 |
| 3" | 1-1/4" | 150 | Rubber HI-TECH | B47633B | 4-1/4 | 2-21/32 | 2 | Plain | 2.03367.42 |
| 3" | 1-1/4" | 200 | Polyurethane HI-TECH | B97633B | 4-1/4 | 2-21/32 | 2 | Plain | 2.03367.92 |
| 3" | 1-1/4" | 200 | Polyolefin | B57633B | 4-1/4 | 2-21/32 | 2 | Delrin | 2.03367.52 |
| 3" | 1-15/32" | 300 | Phenolic | I137633B | 4-1/4 | 2-21/32 | 2-3/4 | Roller | 2.03367.319 |
| 3-1/2" | 1-5/16" | 210 | Performa Rubber (Conductive/Round) | 4E657623B | 4-13/16 | 2-29/32 | 2-1/4 | Ball | 2.03267.565(COND) |
| 3-1/2" | 1-5/16" | 210 | Performa Rubber (Round) | A657623B | 4-13/16 | 2-29/32 | 2-1/4 | Delrin | 2.03267.561 |
| 3-1/2" | 1-5/16" | 210 | Performa Rubber (Round) | E657623B | 4-13/16 | 2-29/32 | 2-1/4 | Ball | 2.03267.565 |
| 3-1/2" | 1-1/4" | 225 | Performa Rubber (Conductive Flat) | 4E447623B | 4-13/16 | 2-29/32 | 2-1/4 | Ball | 2.03267.445(COND) |
| 3-1/2" | 1-1/4" | 230 | Polyolefin | C57623B | 4-13/16 | 2-29/32 | 2-1/8 | Delrin | 2.03267.53 |
| 3-1/2" | 1-1/4" | 230 | Polyolefin | E57623B | 4-13/16 | 2-29/32 | 2-1/8 | Ball | 2.03267.55 |
| 3-1/2" | 1-1/4" | 250 | Performa Rubber (Flat) | A447623B | 4-13/16 | 2-29/32 | 2-1/8 | Delrin | 2.03267.441 |
| 3-1/2" | 1-1/4" | 250 | Performa Rubber (Flat) | E447623B | 4-13/16 | 2-29/32 | 2-1/8 | Ball | 2.03267.445 |
| 3-1/2" | 1-1/4" | 250 | Polyurethane HI-TECH | A97623B | 4-13/16 | 2-29/32 | 1-3/4 | Delrin | 2.03267.91 |
| 3-1/2" | 1-1/4" | 250 | Polyurethane HI-TECH | E97623B | 4-13/16 | 2-29/32 | 1-3/4 | Ball | 2.03267.95 |
| 3-1/2" | 1-1/4" | 300 | Thermo High Temp | THGB57622B | 4-13/16 | 2-29/32 | 3-1/8 | Plain | 2.02267.52(HT) |
| 3-1/2" | 1-1/4" | 300 | Cast Iron | B17623B | 4-13/16 | 2-29/32 | 3 | Sleeve | 2.03267.12 |
| 4" | 1-1/4" | 250 | ThermoTech Cushion High Temp | 8C167604B | 5-1/4 | 3-5/16 | 3 | Teflon | 2.04067.613 |
| 4" | 1-1/4" | 250 | Performa Rubber (Conductive Flat) | 4E447604B | 5-1/4 | 3-5/16 | 2-1/4 | Ball | 2.04067.445(COND) |
| 4" | 1-1/4" | 275 | Polyolefin | C57604B | 5-1/4 | 3-5/16 | 2-1/4 | Delrin | 2.04067.53 |
| 4" | 1-1/4" | 275 | Polyolefin | E57604B | 5-1/4 | 3-5/16 | 2-1/4 | Ball | 2.04067.55 |
| 4" | 1-1/4" | 275 | Polyurethane HI-TECH | A97604B | 5-1/4 | 3-5/16 | 2 | Delrin | 2.04067.91 |
| 4" | 1-1/4" | 275 | Polyurethane HI-TECH | E97604B | 5-1/4 | 3-5/16 | 2 | Ball | 2.04067.95 |
| 4" | 1-1/4" | 300 | Performa Rubber (Flat) | A447604B | 5-1/4 | 3-5/16 | 2-1/4 | Delrin | 2.04067.441 |
| 4" | 1-1/4" | 300 | Performa Rubber (Flat) | E447604B | 5-1/4 | 3-5/16 | 2-1/4 | Ball | 2.04067.445 |
| 4" | 1-1/4" | 300 | Thermo High Temp | THGB57604B | 5-1/4 | 3-5/16 | 3-1/4 | Plain | 2.04067.52(HT) |
| 4" | 1-1/4" | 300 | Cast Iron | B17604B | 5-1/4 | 3-5/16 | 3-1/2 | Sleeve | 2.04067.12 |
| 5" | 1-1/4" | 250 | ThermoTech Cushion High Temp | 8C167605B | 6-5/16 | 4-1/16 | 3 | Teflon | 2.05067.613 |
| 5" | 1-1/4" | 250 | Performa Rubber (Conductive Flat) | 4E447605B | 6-5/16 | 4-1/16 | 3 | Ball | 2.05067.445(COND) |
| 5" | 1-5/16" | 250 | Performa Rubber (Conductive/Round) | 4E657605B | 6-5/16 | 4-1/16 | 3 | Ball | 2.05067.565(COND) |
| 5" | 1-5/16" | 250 | Performa Rubber (Round) | A657605B | 6-5/16 | 4-1/16 | 3 | Delrin | 2.05067.561 |
| 5" | 1-1/4" | 250 | Performa Rubber (Round) | E657605B | 6-5/16 | 4-1/16 | 3 | Ball | 2.05067.565 |
| 5" | 1-1/4" | 300 | Polyolefin | C57605B | 6-5/16 | 4-1/16 | 2-3/4 | Delrin | 2.05067.53 |
| 5" | 1-1/4" | 300 | Polyolefin | E57605B | 6-5/16 | 4-1/16 | 2-3/4 | Ball | 2.05067.55 |
| 5" | 1-1/4" | 300 | Polyurethane HI-TECH | A97605B | 6-5/16 | 4-1/16 | 2-1/2 | Delrin | 2.05067.91 |
| 5" | 1-1/4" | 300 | Polyurethane HI-TECH | E97605B | 6-5/16 | 4-1/16 | 2-1/2 | Ball | 2.05067.95 |
| 5" | 1-1/4" | 300 | Cast Iron | B17605B | 6-5/16 | 4-1/16 | 3-3/4 | Sleeve | 2.05067.12 |
| 5" | 1-1/4" | 325 | Performa Rubber (Flat) | A447605B | 6-5/16 | 4-1/16 | 2-3/4 | Delrin | 2.05067.441 |
| 5" | 1-1/4" | 325 | Performa Rubber (Flat) | E447605B | 6-5/16 | 4-1/16 | 2-3/4 | Ball | 2.05067.445 |
| 5" | 1-1/4" | 325 | Thermo High Temp | THGB57605B | 6-5/16 | 4-1/16 | 3-3/4 | Plain | 2.05067.52(HT) |
