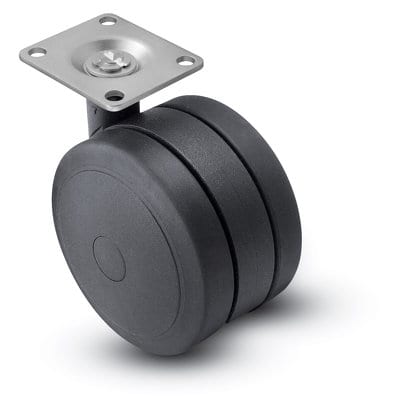

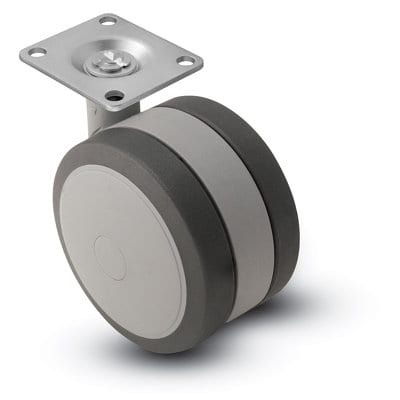

Unhooded Soft Tread Twin Wheel Top Plate Models
- Soft 70-75/A durometer tread constructed of high-tech thermoplastic elastomer
- High load ratings
- Quiet mobility
- Riveted axle for positive wheel retention
- Floor protective and non-marking
Features
- Store Fixtures
- Electronic Equipment
- Audio/Visual Equipment
- Furniture
- Medical Equipment
Applications

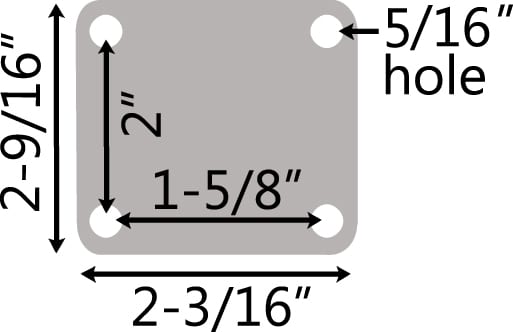

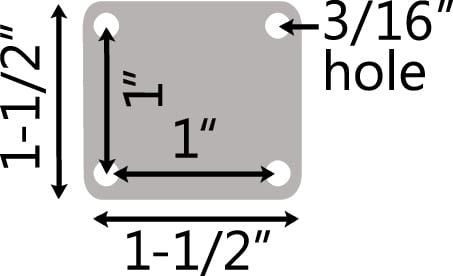

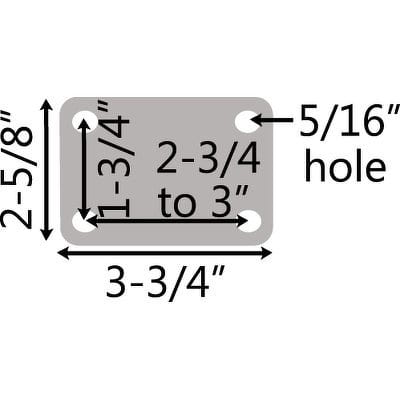

- Fastenings: Threaded Stems, Grip Neck Stems, Grip Ring Stems and Top Plates

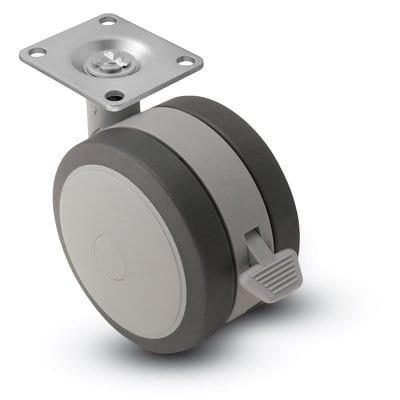

- Brakes: Available for all models
- Finishes: Black, Grey
Options
| Wheel Diameter | Tread Material | Finish | Dynamic Load | Mounting Height | Swivel Radius | Part Number |
|---|---|---|---|---|---|---|
| 50mm | Thermoplastic Elastomer | Black | 75 | 2-1/4" | 1-13/16" | PUT50101BK |
| 50mm | Thermoplastic Elastomer | Grey on Grey | 75 | 2-1/4" | 1-13/16" | PUT50101GR |
| 60mm | Thermoplastic Elastomer | Black | 100 | 2-5/8" | 2-1/16" | PUT60101BK |
| 60mm | Thermoplastic Elastomer | Grey on Grey | 100 | 2-5/8" | 2-1/16" | PUT60101GR |
| 75mm | Thermoplastic Elastomer | Black | 165 | 3-1/4" | 2-1/2" | PUT75101BK PUT75120BK PUT75116BK |
| 75mm | Thermoplastic Elastomer | Grey on Grey | 165 | 3-1/4" | 2-1/2" | PUT75101GR PUT75120GR PUT75116GR |
| 100mm | Thermoplastic Elastomer | Black | 175 | 4-3/8" | 3-5/8" | PUT100120BK PUT100116BK |
| 100mm | Thermoplastic Elastomer | Grey on Grey | 175 | 4-3/8" | 3-5/8" | PUT100120GR PUT100116GR |
| 125mm | Thermoplastic Elastomer | Black | 180 | 5-7/16" | 4-1/2" | PUT125120116BK |
| 125mm | Thermoplastic Elastomer | Grey on Grey | 180 | 5-7/16" | 4-1/2" | PUT125120GR PUT125116GR |
