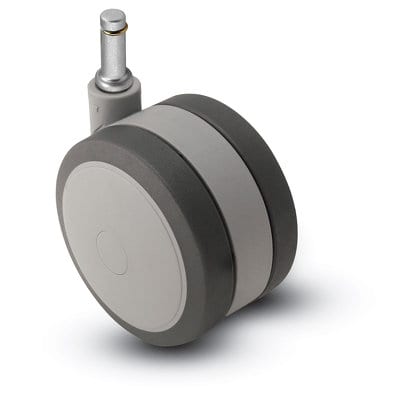

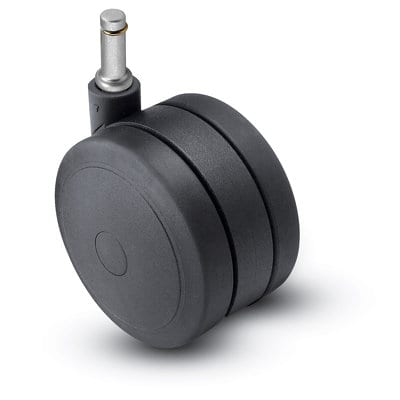

Unhooded Soft Tread Twin Wheel Grip Ring and Grip Neck Stem Models
- Soft 70-75/A durometer tread constructed of high-tech thermoplastic elastomer
- High load ratings
- Quiet mobility
- Riveted axle for positive wheel retention
- Floor protective and non-marking
Features
- Â Store Fixtures
- Electronic Equipment
- Audio/Visual Equipment
- Furniture
- Medical Equipment
Applications

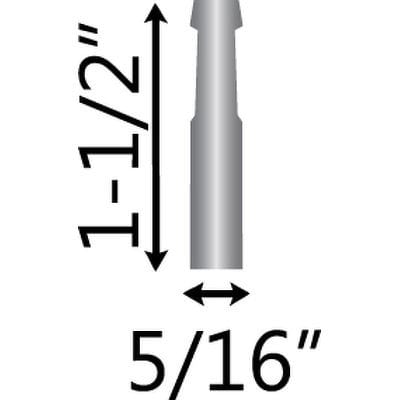

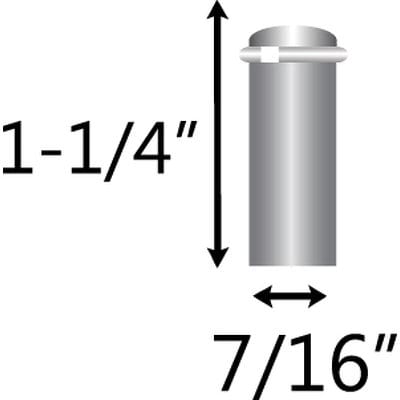

- Fastenings: Threaded Stems, Grip Neck Stems, Grip Ring Stems and Top Plates

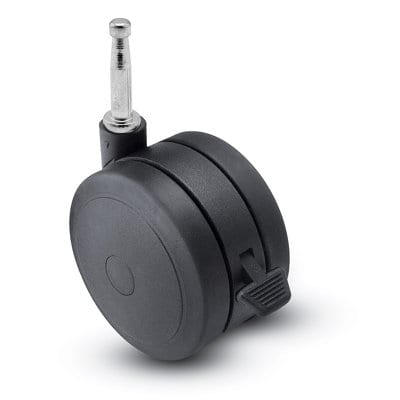

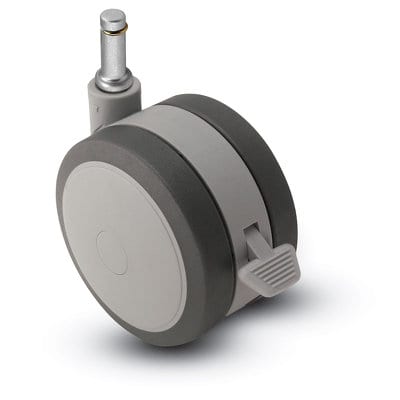

- Brakes: Available for all models
- Finishes: Black, Grey
Options
| Wheel Diameter | Tread Material | Finish | Dynamic Load | Mounting Height | Swivel Radius | Part Number |
|---|---|---|---|---|---|---|
| 50mm | Thermoplastic Elastomer | Black | 75 | 2-1/4" | 1-13/16" | PUT50302BK PUT50223BK PUT50211BK PUT50273BK |
| 50mm | Thermoplastic Elastomer | Grey on Grey | 75 | 2-1/4" | 1-13/16" | PUT50302GR PUT50223GR PUT50211GR PUT50273GR |
| 60mm | Thermoplastic Elastomer | Black | 100 | 2-5/8" | 2-1/16" | PUT60302BK PUT60223BK PUT60211BK PUT60273BK |
| 60mm | Thermoplastic Elastomer | Grey on Grey | 100 | 2-5/8" | 2-1/16" | PUT60302GR PUT60223GR PUT60211GR PUT60273GR |
| 75mm | Thermoplastic Elastomer | Black | 165 | 3-1/4" | 2-1/2" | PUT75302BK PUT75223BK PUT75211BK PUT75291BK PUT75242BK |
| 75mm | Thermoplastic Elastomer | Grey on Grey | 165 | 3-1/4" | 2-1/2" | PUT75302GR PUT75223GR PUT75211GR PUT75291GR PUT75242GR |
| 100mm | Thermoplastic Elastomer | Black | 175 | 4-3/8" | 3-5/8" | PUT100223BK PUT100291BK PUT100211BK |
| 100mm | Thermoplastic Elastomer | Grey on Grey | 175 | 4-3/8" | 3-5/8" | PUT100223GR PUT100291GR PUT100211GR |
| 125mm | Thermoplastic Elastomer | Black | 180 | 5-7/16" | 4-1/2" | PUT125291BK PUT125211BK |
| 125mm | Thermoplastic Elastomer | Grey on Grey | 180 | 5-7/16" | 4-1/2" | PUT125291GR PUT125211GR |
