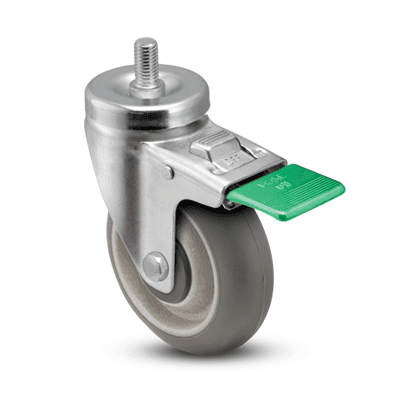

Direction Lock Top Plate Models (Green Pedal)
- Constructed of high-strength steel for added durability
- Raceway dust cap for increased caster life and performance
- NSF-approved (less tread guard)
- Dual ball bearing raceway
- Durable zinc finish
- 3/8_ diameter nut and bolt axle
- Full and partial thread guard options help prevent debris from entangling wheel
Features
- Store Fixtures
- Storage Equipment
- Utility Carts
- Institutional Equipment
- Food Service
- Material Handling Equipment
- Hospitality Carts
Applications
- Brakes: Tread Lock, Top Lock, Totalock (locks wheel and swivel) and Direction Lock (locks swivel only)
- RoHS Complaint: Available upon request
Options
| Wheel Diameter | Thread With | Thread Guard | Wheel Description | Dynamic Load | Mounting Height | Swivel Radius | Part Number | Bearing Type |
|---|---|---|---|---|---|---|---|---|
| 5" | 1-1/4" | None | TPR | 280 | 6-1/8" | 3-7/8" | PAD50161TZ-TPR11(GG) | Nylon |
| 5" | 1-1/4" | Partial | TPR | 280 | 6-1/8" | 3-7/8" | PAD50161TZ-TPR22(GG) | Ball |
| 5" | 1-1/4" | Full | TPR | 280 | 6-1/8" | 3-7/8" | PAD50161TZ-TPR33(GG) | Precision |
| 5" | 1-1/4" | Partial | Blue Urethane | 315 | 6-1/8" | 3-7/8" | PAD50161TZ-TPU22(BG) | Ball |
| 5" | 1-1/4" | Partial | Grey Urethane | 315 | 6-1/8" | 3-7/8" | PAD50161TZ-TPU22(GG) | Ball |
| 5" | 1-1/4" | Partial | MonoTech (Flat) | 325 | 6-1/8" | 3-7/8" | PAD50161TZ-FMT32(GG) | Precision |
| 5" | 1-1/4" | None | MonoTech (Flat) | 325 | 6-1/8" | 3-7/8" | PAD50161TZ-FMT11(GG) | Delrin |
| 5" | 1-1/4" | Partial | MonoTech (Donut) | 300 | 6-1/8" | 3-7/8" | PAD50161TZ-DMT11(GG) | Precision |
| 5" | 1-1/4" | None | MonoTech (Donut) | 300 | 6-1/8" | 3-7/8" | PAD50161TZ-DMT11(GG) | Delrin |
