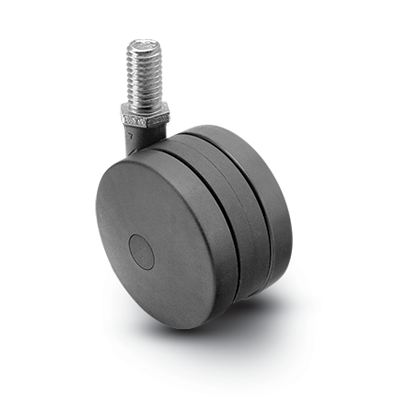

Twin Wheel
| Wheel Diameter | Stem | Kick Stop Brake | Thread With | Capacity | Wheel Description | Wheel Bearing | Load Height | Mounting Height | Swivel Radius | Part Number |
|---|---|---|---|---|---|---|---|---|---|---|
| 2 | 7/16 x 7/8 INCH | No | 1 1/2 INCH | 90 lbs | Black Nylon | Plain | 2 29/64 INCH | Mounting: Grip Ring Stem | 2 INCH | TW-02NYO-200-SW-GR01 |
| 2 | 7/16 x 7/8 INCH | Caster Lock | 1 1/2 INCH | 90 lbs | Black Nylon | Plain | 2 29/64 INCH | Mounting: Grip Ring Stem | 2 3/8 INCH | TW-02NYO-200-TB-GR01 |
| 3 | 7/16 x 7/8 INCH | Caster Lock | 1 31/32 INCH | 165 lbs | Black Nylon | Plain | 3 1/4 INCH | Mounting: Grip Ring Stem | 3 3/16 INCH | TW-03NYO-200-TB-GR01 |
| 3 | 7/16 x 7/8 INCH | No | 1 31/32 INCH | 165 lbs | Black Nylon | Plain | 3 1/4 INCH | Mounting: Grip Ring Stem | 2 1/2 INCH | TW-03NYO-200-SW-GR01 |
| 3 | 7/16 x 7/8 INCH | No | 1 31/32 INCH | 165 lbs | Thermoplastic Rubber | Plain | 3 1/4 INCH | Mounting: Grip Ring Stem | 2 1/2 INCH | TW-03TPO-200-SW-GR01 |
| 3 | 7/16 x 7/8 INCH | Caster Lock | 1 31/32INCH | 165 lbs | Thermoplastic Rubber | Plain | 3 1/4 INCH | Mounting: Grip Ring Stem | 3 3/16 INCH | TW-03TPO-200-TB-GR01 |
| 4 | 7/16 x 7/8 INCH | No | 2 1/4 INCH | 175 lbs | Black Polyurethane | Plain | 4 3/8 INCH | Mounting: Grip Ring Stem | 3 5/8 INCH | TW-04PBO-200-SW-GR01 |
| 4 | 7/16 x 7/8 INCH | Caster Lock | 2 1/4 INCH | 175 lbs | Black Polyurethane | Plain | 4 3/8 INCH | Mounting: Grip Ring Stem | 4 1/2 INCH | TW-04PBO-200-TB-GR01 |
| 4 | 7/16 x 7/8 INCH | No | 2 1/4 INCH | 175 lbs | Black Nylon | Plain | 4 3/8 INCH | Mounting: Grip Ring Stem | 3 5/8 INCH | TW-04NYO-200-SW-GR01 |
| 4 | 7/16 x 7/8 INCH | Caster Lock | 2 1/4 INCH | 175 lbs | Black Nylon | Plain | 4 3/8 INCH | Mounting: Grip Ring Stem | 4 1/2 INCH | TW-04NYO-200-TB-GR01 |
| 5 | 7/16 x 7/8 INCH | No | 2 5/8 INCH | 180 lbs | Black Polyurethane | Plain | 5 7/16 INCH | Mounting: Grip Ring Stem | 4 1/2 INCH | TW-05PBO-200-SW-GR01 |
| 5 | 7/16 x 7/8 INCH | Caster Lock | 2 5/8 INCH | 180 lbs | Black Polyurethane | Plain | 5 7/16 INCH | Mounting: Grip Ring Stem | 5 1/8 INCH | TW-05PBO-200-TB-GR01 |
| 5 | 7/16 x 7/8 INCH | No | 2 5/8 INCH | 180 lbs | Black Nylon | Plain | 5 7/16 INCH | Mounting: Grip Ring Stem | 4 1/2 INCH | TW-05NYO-200-SW-GR01 |
| 5 | 7/16 x 7/8 INCH | 2 5/8 INCH | 180 lbs | Black Nylon | Plain | 5 7/16 INCH | Mounting: Grip Ring Stem | 5 1/8 INCH | TW-05NYO-200-TB-GR01 | |
| 2 | 7/16 x 1-7/16 INCH | No | 1 1/2 INCH | 90 lbs | Black Nylon | Plain | 2 29/64 INCH | Mounting: Grip Ring Stem | 2 INCH | TW-02NYO-200-SW-GR02 |
| 2 | 7/16 x 1-7/16 INCH | Caster Lock | 1 1/2 INCH | 90 lbs | Black Nylon | Plain | 2 29/64 INCH | Mounting: Grip Ring Stem | 2 3/8 INCH | TW-02NYO-200-TB-GR02 |
| 3 | 7/16 x 1-7/16 INCH | No | 1 31/32 INCH | 165 lbs | Black Nylon | Plain | 3 1/4 INCH | Mounting: Grip Ring Stem | 2 1/2 INCH | TW-03NYO-200-SW-GR02 |
| 3 | 7/16 x 1-7/16 INCH | Caster Lock | 1 31/32 INCH | 165 lbs | Black Nylon | Plain | 3 1/4 INCH | Mounting: Grip Ring Stem | 3 3/16 INCH | TW-03NYO-200-TB-GR02 |
| 3 | 7/16 x 1-7/16 INCH | No | 1 31/32 INCH | 165 lbs | Thermoplastic Rubber | Plain | 3 1/4 INCH | Mounting: Grip Ring Stem | 2 1/2 INCH | TW-03TPO-200-SW-GR02 |
| 3 | 7/16 x 1-7/16 INCH | Caster Lock | 1 31/32 INCH | 165 lbs | Thermoplastic Rubber | Plain | 3 1/4 INCH | Mounting: Grip Ring Stem | 3 3/16 INCH | TW-03TPO-200-TB-GR02 |
| 4 | 7/16 x 1-7/16 INCH | No | 2 1/4 INCH | 175 lbs | Black Polyurethane | Plain | 4 3/8 INCH | Mounting: Grip Ring Stem | 3 5/8 INCH | TW-04PBO-200-SW-GR02 |
| 4 | 7/16 x 1-7/16 INCH | Caster Lock | 2 1/4 INCH | 175 lbs | Black Polyurethane | Plain | 4 3/8 INCH | Mounting: Grip Ring Stem | 4 1/2 INCH | TW-04PBO-200-TB-GR02 |
| 4 | 7/16 x 1-7/16 INCH | No | 2 1/4 INCH | 175 lbs | Black Nylon | Plain | 4 3/8 INCH | Mounting: Grip Ring Stem | 3 5/8 INCH | TW-04NYO-200-SW-GR02 |
| 4 | 7/16 x 1-7/16 INCH | Caster Lock | 2 1/4 INCH | 175 lbs | Black Nylon | Plain | 4 3/8 INCH | Mounting: Grip Ring Stem | 4 1/2 INCH | TW-04NYO-200-TB-GR02 |
| 5 | 7/16 x 1-7/16 INCH | No | 2 5/8 INCH | 180 lbs | Black Polyurethane | Plain | 5 7/16 INCH | Mounting: Grip Ring Stem | 4 1/2 INCH | TW-05PBO-200-SW-GR02 |
| 5 | 7/16 x 1-7/16 INCH | Caster Lock | 2 5/8 INCH | 180 lbs | Black Polyurethane | Plain | 5 7/16 INCH | Mounting: Grip Ring Stem | 5 1/8 INCH | TW-05PBO-200-TB-GR02 |
| 5 | 7/16 x 1-7/16 INCH | No | 2 5/8 INCH | 180 lbs | Black Nylon | Plain | 5 7/16 INCH | Mounting: Grip Ring Stem | 4 1/2 INCH | TW-05NYO-200-SW-GR02 |
| 5 | 7/16 x 1-7/16 INCH | Caster Lock | 2 5/8 INCH | 180 lbs | Black Nylon | Plain | 5 7/16 INCH | Mounting: Grip Ring Stem | 5 1/8 INCH | TW-05NYO-200-TB-GR02 |
| 2 | 1/2-13UNC x 1 INCH | No | 1 1/2 INCH | 90 lbs | Black Nylon | Plain | 2 29/64 INCH | Mounting: Threaded Stem | 2 INCH | TW-02NYO-200-SW-TS02 |
| 2 | 1/2-13UNC x 1 INCH | Caster Lock | 1 1/2 INCH | 90 lbs | Black Nylon | Plain | 2 29/64 INCH | Mounting: Threaded Stem | 2 3/8 INCH | TW-02NYO-200-TB-TS02 |
| 3 | 1/2-13UNC x 1 INCH | Caster Lock | 1 31/32 INCH | 165 lbs | Black Nylon | Plain | 3 1/4 INCH | Mounting: Threaded Stem | 3 3/16 INCH | TW-03NYO-200-TB-TS02 |
| 3 | 1/2-13UNC x 1 INCH | No | 1 31/32 INCH | 165 lbs | Black Nylon | Plain | 3 1/4 INCH | Mounting: Threaded Stem | 2 1/2 INCH | TW-03NYO-200-SW-TS02 |
| 3 | 1/2-13UNC x 1 INCH | No | 1 31/32 INCH | 165 lbs | Thermoplastic Rubber | Plain | 3 1/4 INCH | Mounting: Threaded Stem | 2 1/2 INCH | TW-03TPO-200-SW-TS02 |
| 3 | 1/2-13UNC x 1 INCH | Caster Lock | 1 31/32 INCH | 165 lbs | Thermoplastic Rubber | Plain | 3 1/4 INCH | Mounting: Threaded Stem | 3 3/16 INCH | TW-03TPO-200-TB-TS02 |
| 4 | 1/2-13UNC x 1 INCH | No | 2 1/4 INCH | 175 lbs | Black Polyurethane | Plain | 4 3/8 INCH | Mounting: Threaded Stem | 3 5/8 INCH | TW-04PBO-200-SW-TS02 |
| 4 | 1/2-13UNC x 1 INCH | Caster Lock | 2 1/4 INCH | 175 lbs | Black Polyurethane | Plain | 4 3/8 INCH | Mounting: Threaded Stem | 4 1/2 INCH | TW-04PBO-200-TB-TS02 |
| 4 | 1/2-13UNC x 1 INCH | No | 2 1/4 INCH | 175 lbs | Black Nylon | Plain | 4 3/8 INCH | Mounting: Threaded Stem | 3 5/8 INCH | TW-04NYO-200-SW-TS02 |
| 4 | 1/2-13UNC x 1 INCH | Caster Lock | 2 1/4 INCH | 175 lbs | Black Nylon | Plain | 4 3/8 INCH | Mounting: Threaded Stem | 4 1/2 INCH | TW-04NYO-200-TB-TS02 |
| 5 | 1/2-13UNC x 1 INCH | No | 2 5/8 INCH | 180 lbs | Black Polyurethane | Plain | 5 7/16 INCH | Mounting: Threaded Stem | 4 1/2 INCH | TW-05PBO-200-SW-TS02 |
| 5 | 1/2-13UNC x 1 INCH | Caster Lock | 2 5/8 INCH | 180 lbs | Black Polyurethane | Plain | 5 7/16 INCH | Mounting: Threaded Stem | 5 1/8 INCH | TW-05PBO-200-TB-TS02 |
| 5 | 1/2-13UNC x 1 INCH | No | 2 5/8 INCH | 180 lbs | Black Nylon | Plain | 5 7/16 INCH | Mounting: Threaded Stem | 4 1/2 INCH | TW-05NYO-200-SW-TS02 |
| 5 | 1/2-13UNC x 1 INCH | Caster Lock | 2 5/8 INCH | 180 lbs | Black Nylon | Plain | 5 7/16 INCH | Mounting: Threaded Stem | 5 1/8 INCH | TW-05NYO-200-TB-TS02 |
| 2 | 1/2 -13UNC x 1-1/2 INCH | No | 1 1/2 INCH | 90 lbs | Black Nylon | Plain | Mounting: Threaded Stem | 2 INCH | TW-02NYO-200-SW-TS03 | |
| 2 | 1/2 -13UNC x 1-1/2 INCH | Caster Lock | 1 1/2 INCH | 90 lbs | Black Nylon | Plain | 2 29/64 INCH | Mounting: Threaded Stem | 2 3/8 INCH | TW-02NYO-200-TB-TS03 |
| 3 | 1/2 -13UNC x 1-1/2 INCH | No | 1 31/32 INCH | 165 lbs | Black Nylon | Plain | 3 1/4 INCH | Mounting: Threaded Stem | 2 1/2 INCH | TW-03NYO-200-SW-TS03 |
| 3 | 1/2 -13UNC x 1-1/2 INCH | Caster Lock | 1 31/32 INCH | 165 lbs | Black Nylon | Plain | 3 1/4 INCH | Mounting: Threaded Stem | 3 3/16 INCH | TW-03NYO-200-TB-TS03 |
| 3 | 1/2 -13UNC x 1-1/2 INCH | No | 1 31/32 INCH | 165 lbs | Thermoplastic Rubber | Plain | 3 1/4 INCH | Mounting: Threaded Stem | 2 1/2 INCH | TW-03TPO-200-SW-TS03 |
| 3 | 1/2 -13UNC x 1-1/2 INCH | Caster Lock | 1 31/32 INCH | 165 lbs | Thermoplastic Rubber | Plain | 3 1/4 INCH | Mounting: Threaded Stem | 3 3/16 INCH | TW-03TPO-200-TB-TS03 |
| 4 | 1/2 -13UNC x 1-1/2 INCH | No | 2 1/4 INCH | 175 lbs | Black Nylon | Plain | 4 3/8 INCH | Mounting: Threaded Stem | 3 5/8 INCH | TW-04NYO-200-SW-TS03 |
| 4 | 1/2 -13UNC x 1-1/2 INCH | Caster Lock | 2 1/4 INCH | 175 lbs | Black Nylon | Plain | 4 3/8 INCH | Mounting: Threaded Stem | 4 1/2 INCH | TW-04NYO-200-TB-TS03 |
| 4 | 1/2 -13UNC x 1-1/2 INCH | No | 2 1/4 INCH | 175 lbs | Black Polyurethane | Plain | 4 3/8 INCH | Mounting: Threaded Stem | 3 5/8 INCH | TW-04PBO-200-SW-TS03 |
| 4 | 1/2 -13UNC x 1-1/2 INCH | Caster Lock | 2 1/4 INCH | 175 lbs | Black Polyurethane | Plain | 4 3/8 INCH | Mounting: Threaded Stem | 4 1/2 INCH | TW-04PBO-200-TB-TS03 |
| 5 | 1/2 -13UNC x 1-1/2 INCH | No | 2 5/8 INCH | 185 lbs | Black Polyurethane | Plain | 5 7/16 INCH | Mounting: Threaded Stem | 4 1/2 INCH | TW-05PBO-200-SW-TS03 |
| 5 | 1/2 -13UNC x 1-1/2 INCH | Caster Lock | 2 5/8 INCH | 185 lbs | Black Polyurethane | Plain | 5 7/16 INCH | Mounting: Threaded Stem | 5 1/8 INCH | TW-05PBO-200-TB-TS03 |
| 5 | 1/2 -13UNC x 1-1/2 INCH | No | 2 5/8 INCH | 180 lbs | Black Nylon | Plain | 5 7/16 INCH | Mounting: Threaded Stem | 4 1/2 INCH | TW-05NYO-200-SW-TS03 |
| 5 | 1/2 -13UNC x 1-1/2 INCH | Caster Lock | 2 5/8 INCH | 180 lbs | Black Nylon | Plain | 5 7/16 INCH | Mounting: Threaded Stem | 5 1/8 INCH | TW-05NYO-200-TB-TS03 |
| 2 | 3/8 -16UNC x 1 INCH | No | 1 1/2 INCH | 90 lbs | Black Nylon | Plain | 2 29/64 INCH | Mounting: Threaded Stem | 2 INCH | TW-02NYO-200-SW-TS06 |
| 2 | 3/8 -16UNC x 1 INCH | Caster Lock | 1 1/2 INCH | 90 lbs | Black Nylon | Plain | 2 29/64 INCH | Mounting: Threaded Stem | 2 3/8 INCH | TW-02NYO-200-TB-TS06 |
| 3 | 3/8 -16UNC x 1 INCH | No | 1 31/32 INCH | 165 lbs | Black Nylon | Plain | 3 1/4 INCH | Mounting: Threaded Stem | 2 1/2 INCH | TW-03NYO-200-SW-TS06 |
| 3 | 3/8 -16UNC x 1 INCH | Caster Lock | 1 31/32 INCH | 165 lbs | Black Nylon | Plain | 3 1/4 INCH | Mounting: Threaded Stem | 3 3/16 INCH | TW-03NYO-200-TB-TS06 |
| 3/8 -16UNC x 1 INCH | No | 1 31/32 INCH | 165 lbs | Thermoplastic Rubber | Plain | 3 1/4 INCH | Mounting: Threaded Stem | 2 1/2 INCH | TW-03TPO-200-SW-TS06 | |
| 3 | 3/8 -16UNC x 1 INCH | Caster Lock | 1 31/32 INCH | 165 lbs | Thermoplastic Rubber | Plain | 3 1/4 INCH | Mounting: Threaded Stem | 3 3/16 INCH | TW-03TPO-200-TB-TS06 |
| 4 | 3/8 -16UNC x 1 INCH | No | 2 1/4 INCH | 175 lbs | Black Polyurethane | Plain | 4 3/8 INCH | Mounting: Threaded Stem | 3 5/8 INCH | TW-04PBO-200-SW-TS06 |
| 3/8 -16UNC x 1 INCH | Caster Lock | 2 1/4 INCH | 175 lbs | Black Polyurethane | Plain | 4 3/8 INCH | Mounting: Threaded Stem | 4 1/2 INCH | TW-04PBO-200-TB-TS06 | |
| 4 | 3/8 -16UNC x 1 INCH | No | 2 1/4 INCH | 175 lbs | Black Nylon | Plain | 4 3/8 INCH | Mounting: Threaded Stem | 3 5/8 INCH | TW-04NYO-200-SW-TS06 |
| 4 | 3/8 -16UNC x 1 INCH | Caster Lock | 2 1/4 INCH | 175 lbs | Black Nylon | Plain | 4 3/8 INCH | Mounting: Threaded Stem | 4 1/2 INCH | TW-04NYO-200-TB-TS06 |
| 5 | 3/8 -16UNC x 1 INCH | No | 2 5/8 INCH | 180 lbs | Black Nylon | Plain | 5 7/16 INCH | Mounting: Threaded Stem | 4 1/2 INCH | TW-05NYO-200-SW-TS06 |
| 5 | 3/8 -16UNC x 1 INCH | Caster Lock | 2 5/8 INCH | 180 lbs | Black Nylon | Plain | 5 7/16 INCH | Mounting: Threaded Stem | 5 1/8 INCH | TW-05NYO-200-TB-TS06 |
| 5 | 3/8 -16UNC x 1 INCH | No | 2 5/8 INCH | Black Polyurethane | Plain | 5 7/16 INCH | Mounting: Threaded Stem | 4 1/2 INCH | TW-05PBO-200-SW-TS06 | |
| 5 | 3/8 -16UNC x 1 INCH | Caster Lock | 2 5/8 INCH | Black Polyurethane | 5 7/16 INCH | Mounting: Threaded Stem | 5 1/8 INCH | TW-05PBO-200-TB-TS06 |
