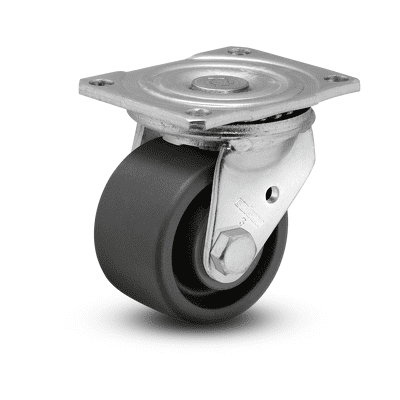

Stainless Steel Precision

    Features

  • Ergonomically friendly and durable stainles steel precision swivel raceway for maximum roll and swivel ease
  • All component parts stainless steel to handle the most punishing, corrosive conditions
  • Maintenance-free, permanently sealed, precision bearing in metal housing
  • Zero end play of swivel mechanism
  • 5/32" steel top plate for maximum durability
  • High Impact Strength
  • Typical applications include medical applications, autoclave operations or where wash down of equipment is required

    Standard Mounting

  • 2-1/2 x 3-5/8 top plate with 1-3/4 x 2-13/16" bolt holes, slotted to 1-3/4 x 3-1/16"
Wheel Diameter Thread With Capacity Wheel Description Load Height Swivel Radius Weight Bearing Type Swivel Top Plate
5" 1-5/16" 275 Polyolefin 6-3/16 3-13/16 2-5/8 Roller 2.X5456.544
5" 1-1/4" 275 Polyurethane HI-TECH 6-3/16 3-13/16 2-5/8 Roller 2.X5456.944
5" 1-1/4" 300 Performa Rubber (Flat Tread) 6-3/16 3-13/16 2-3/4 Roller 2.X5456.444
5" 1-1/4" 300 TPE (Hi-Temp) 6-3/16 3-13/16 2-1/4 Roller 2.X5456.414H

Wheel Selection

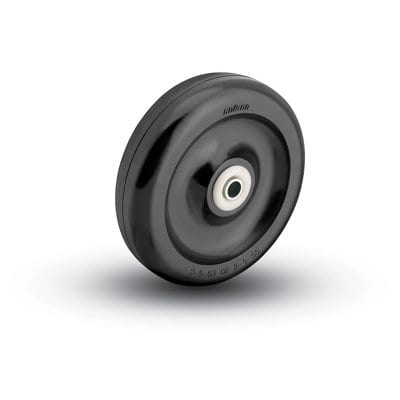

Polyolefin

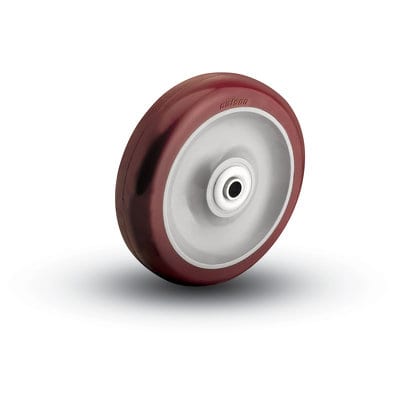

Polyurethane Hi-Tech

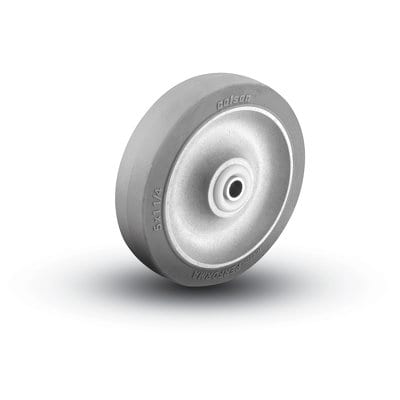

Performa Rubber Flat Tread

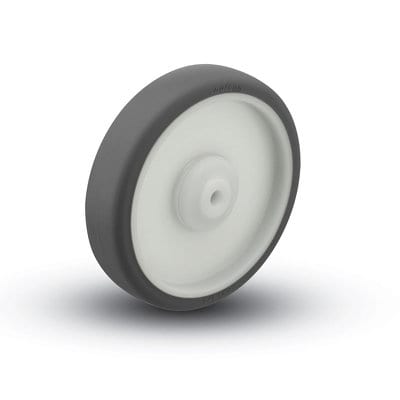

TPE Hi-Temp
