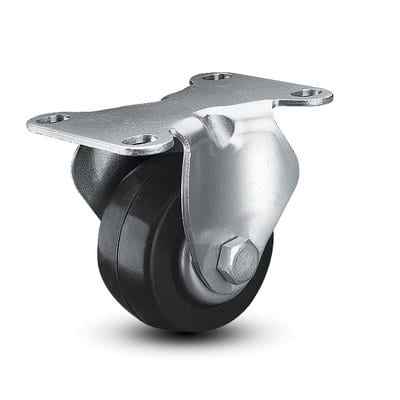

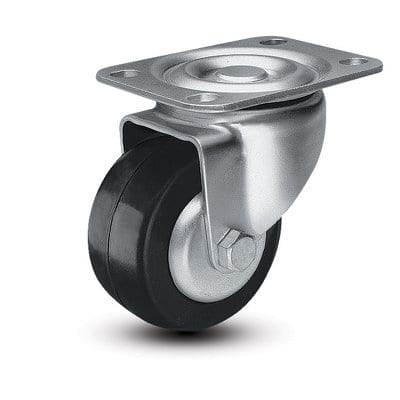

Lo Pro Top Plate Swivel and Rigid
- Zinc plated finish is attractive and durable
- Full double ball hardened raceways for better performance and greater durability
- Low profile design offers low load height and quick swivel response
- Ideal for business machines, stock picking carts, warehouse dollies and housekeeping carts
- Thread guards standard on all except 3" brake model
Features

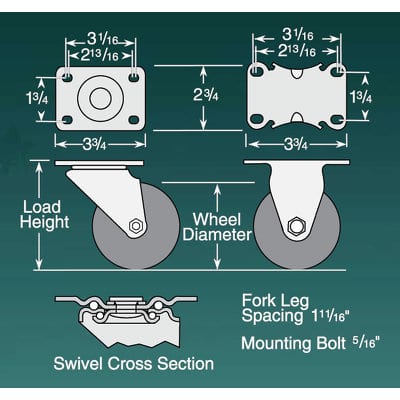

- 2-3/4 x 3-3/4 top plate, with industry standard 1-3/4" x 3" bolt holes
Standard Mounting

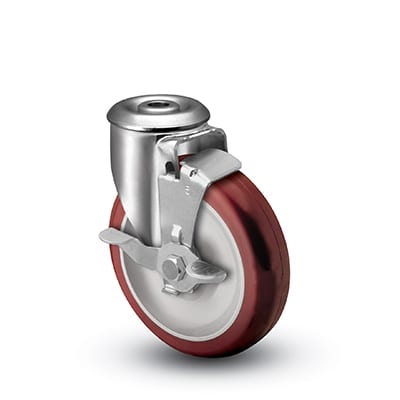

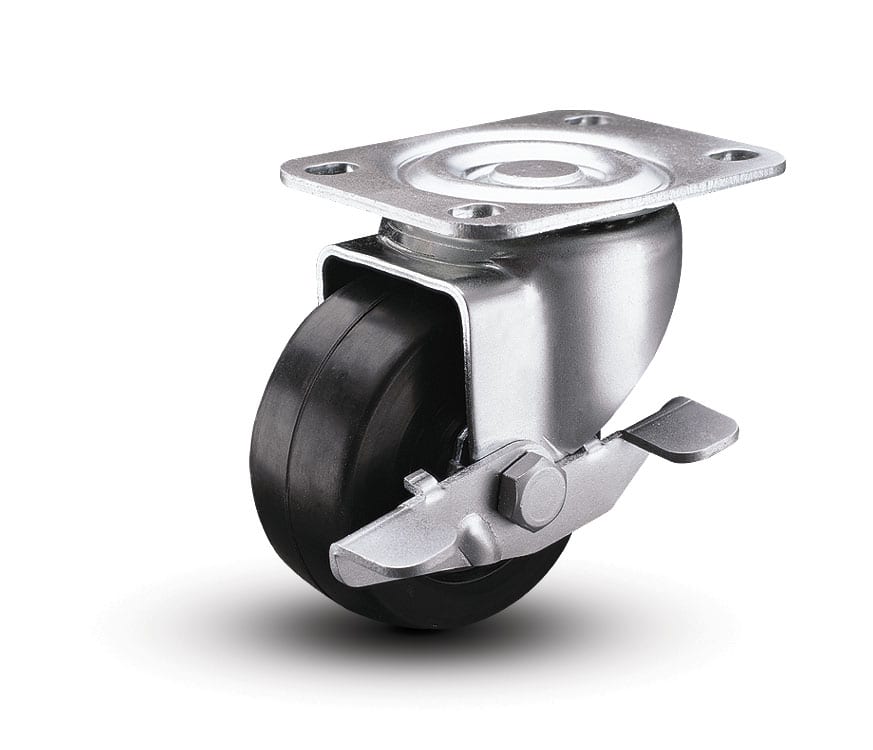

- Brake:Side Lock is easy to engage and disengage with a touch of the pedal (3" models only)
Options

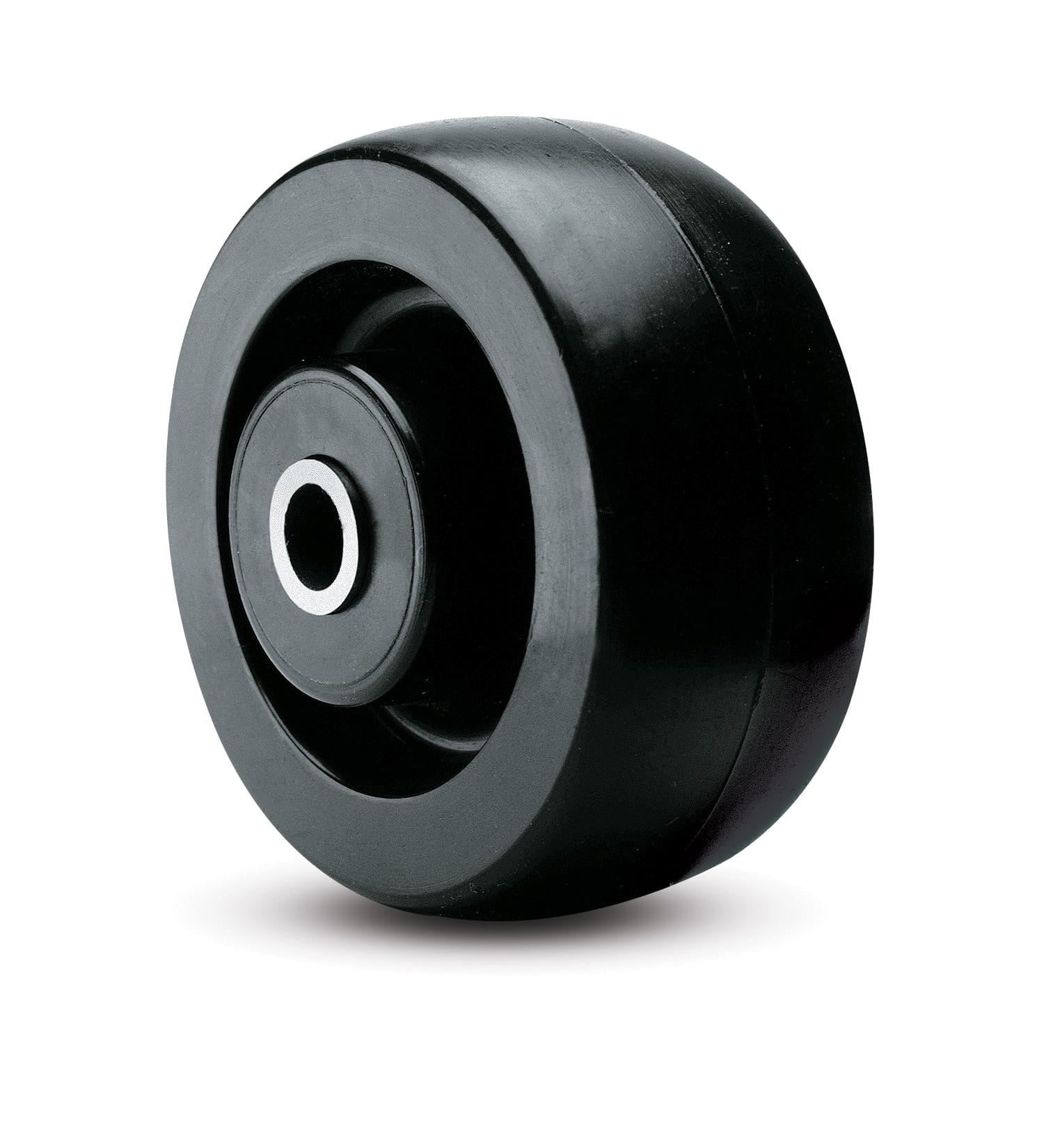

| Wheel Diameter | Thread With | Capacity | Wheel Description | Load Height | Swivel Radius | Weight | Bearing Type | Swivel Top Plate | Rigid Top Plate |
|---|---|---|---|---|---|---|---|---|---|
| 2-1/2" | 1-1/8" | 120 | Cushion Rubber | 3-5/16 | 2-3/8 | 1 | Nylon/Powdered Metal | 2.02689.42 | 2.02688.42 |
| 2-1/2" | 1-1/8" | 175 | Hard Rubber | 3-5/16 | 2-3/8 | 1 | Nylon/Powdered Metal | 2.02689.52 | 2.02688.52 |
| 3" | 1-1/4" | 125 | Cushion Rubber | 3-13/16 | 2-11/16 | 1-1/2 | Nylon/Powdered Metal | 2.03689.42 | 2.03688.42 |
| 3" | 1-1/4" | 210 | Hard Rubber | 3-13/16 | 2-11/16 | 1-1/2 | Nylon/Powdered Metal | 2.03689.52 | 2.03688.52 |
