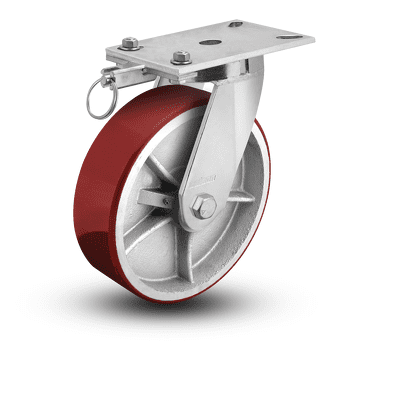

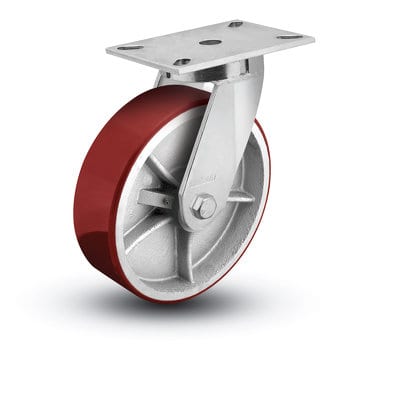

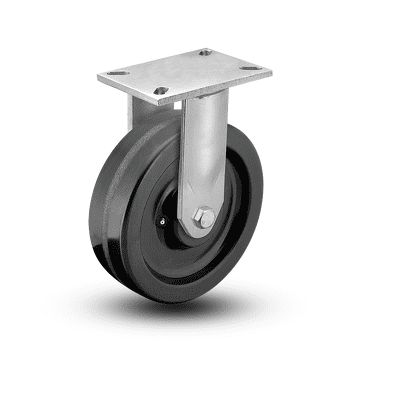

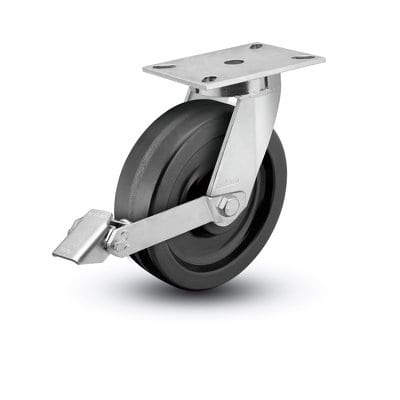

Kingpinless Swivel Casters and Matching Rigid
| Wheel Diameter | Optional Bearings | Thread With | Capacity | Wheel Description | Load Height | Swivel Radius | Weight | Swivel Top Plate | Rigid Top Plate |
|---|---|---|---|---|---|---|---|---|---|
| 6" | Delrin- Roller | 2-1/2" | 1600 | Phenolic | 7-1/2 | 4-3/4 | 13-1/2 | 7.06689.369 | 7.06688.369 |
| 6" | Delrin- Roller | 2-1/2" | 2500 | Cast Iron | 7-1/2 | 4-3/4 | 20 | 7.06689.169 | 7.06688.169 |
| 6" | Delrin- Roller | 2-1/2" | 2500 | V-Groove | 7-1/2 | 4-3/4 | 24 | 7.06689.769 | 7.06688.769 |
| 6" | Delrin- Roller | 2-1/2" | 4000 | Forged Steel | 7-1/2 | 4-3/4 | 24 | 7.06689.269 | 7.06688.269 |
| 6" | Delrin- Roller | 3" | 680 | Moldon Rubber Ironcore | 7-1/2 | 4-3/4 | 17 | 7.06689.679.7 | 7.06688.679.7 |
| 6" | Delrin- Roller | 3" | 2000 | Phenolic | 7-1/2 | 4-3/4 | 14-1/4 | 7.06689.379 | 7.06688.379 |
| 6" | Delrin- Roller | 3" | 2040 | Moldon Polyurethane Ironcore | 7-1/2 | 4-3/4 | 19-1/4 | 7.06689.979.7 | 7.06688.979.7 |
| 6" | Delrin- Roller | 3" | 6000 | V-Groove | 7-1/2 | 4-3/4 | 21-1/4 | 7.06689.789 | 7.06688.788 |
| 8" | Delrin- Roller | 2-1/2" | 2000 | Phenolic | 10-1/2 | 6-5/8 | 15-1/2 | 7.08689.369 | 7.08688.369 |
| 8" | Delrin- Roller | 3" | 840 | Moldon Rubber Ironcore | 10-1/2 | 6-5/8 | 24-3/34 | 7.08689.679.7 | 7.08688.679.7 |
| 8" | Delrin- Roller | 3" | 2500 | Phenolic | 10-1/2 | 6-5/8 | 16-1/2 | 7.08689.379 | 7.08688.379 |
| 8" | Delrin- Roller | 3" | 2500 | Moldon Polyurethane Ironcore | 10-1/2 | 6-5/8 | 27-3/4 | 7.08689.979.7 | 7.08688.979.7 |
| 8" | Delrin- Roller | 3" | 2500 | Cast Iron | 10-1/2 | 6-5/8 | 27-3/4 | 7.08689.179 | 7.08688.179 |
| 8" | Delrin- Roller | 3" | 2500 | V-Groove | 10-1/2 | 6-5/8 | 31-1/4 | 7.08689.779 | 7.08688.779 |
| 8" | Delrin- Roller | 3" | 4500 | Forged Steel | 10-1/2 | 6-5/8 | 31-1/4 | 7.08689.279 | 7.08688.279 |
| 10" | Delrin- Roller | 2-1/2" | 1000 | Performa Rubber (Flat Black) | 12-1/2 | 8-1/8 | 18-1/4 | 7.01068.459.2 | 7.01068.459.2 |
| 10" | Delrin- Roller | 2-1/2" | 1200 | Polyurethane HI-TECH | 12-1/2 | 8-1/8 | 18-1/4 | 7.10689.959 | 7.10688.959 |
| 10" | Delrin- Roller | 2-1/2" | 2500 | Phenolic | 12-1/2 | 8-1/8 | 19-1/2 | 7.10689.369 | 7.10688.369 |
| 10" | Delrin- Roller | 3" | 100 | Moldon Rubber Ironcore | 12-1/2 | 8-1/8 | 25-1/4 | 7.10689.679.7 | 7.10688.679.7 |
| 10" | Delrin- Roller | 3" | 2900 | Phenolic | 12-1/2 | 8-1/8 | 19-1/2 | 7.10689.379 | 7.10688.379 |
| 10" | Delrin- Roller | 3" | 3000 | Moldon Polyurethane Ironcore | 12-1/2 | 8-1/8 | 31-1/2 | 7.10689.979.7 | 7.10688.979.7 |
| 10" | Delrin- Roller | 3" | 3000 | Cast Iron | 12-1/2 | 8-1/8 | 31-1/2 | 7.10689.179 | 7.10688.179 |
| 10" | Delrin- Roller | 3" | 4500 | Forged Steel | 12-1/2 | 8-1/8 | 31-1/2 | 7.10689.279 | 7.10688.279 |
| 12" | Delrin- Roller | 3" | 1140 | Moldon Rubber Ironcore | 15-1/2 | 10-1/8 | 28-3/4 | 7.12689.679.7 | 7.12688.679.7 |
| 12" | Delrin- Roller | 3" | 1700 | Performa Rubber (Flat Black) | 15-1/2 | 10-1/8 | 22-1/4 | 7.12689.459.2 | 7.12688.459.2 |
| 12" | Delrin- Roller | 3" | 1700 | Polyurethane HI-TECH | 15-1/2 | 10-1/8 | 22-1/4 | 7.12689.959 | 7.12688.959 |
| 12" | Delrin- Roller | 3" | 3000 | Cast Iron | 15-1/2 | 10-1/8 | 35-3/4 | 7.12689.179 | 7.12688.179 |
| 12" | Delrin- Roller | 3" | 3500 | Phenolic | 15-1/2 | 10-1/8 | 24-3/4 | 7.12689.379 | 7.12688.379 |
| 12" | Delrin- Roller | 3" | 3500 | Moldon Polyurethane Ironcore | 15-1/2 | 10-1/8 | 40 | 7.12689.179 | 7.12688.179 |
