Kingpinless Swivel Casters and Matching Rigid

    Features

  • Zinc plated finish is attractive and durable
  • Kingpinless swivel design eliminates swivel section failure due to shock and stretching of kingpin
  • Single ball hardened and encased raceway
  • 3/8" thick x 2-1/2" wide fork legs
  • 3/4" hollow axle with grease zerk and locknut
  • Formed fork legs feature robotic welding inside and out for quality and added strength
  • Recessed zerk grease fitting on swivel raceway to prevent damage. Grease fitting at end of hollow axle and in some cases hub of wheel as well.
  • Colson 45 multi-temp grease lubricates in extreme hot and cold temperatures

    Standard Mounting

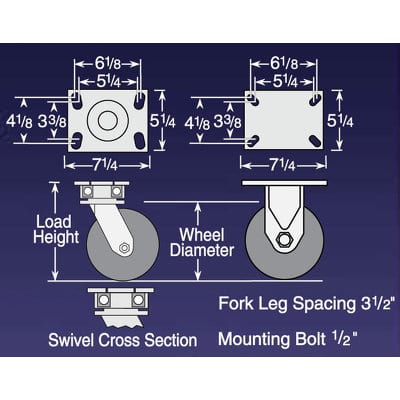

  • 5/16" steel Top Plate, 5-1/2" x 7-1/4" overall with 3-3/8 x 5-1/4 bolt holes slotted to 4-1/8 x 6-1/8, for 1/2" bolt

    Options

  • Load Height Option: 8" LH for 6" Caster Yields 4-7/8" Swivel Radius
  • Load Height Option: 10-1/8" LH for 8" Caster. Yields 6-9/16" Swivel Radius
  • Load Height Option: 11-1/2" LH for 10" Caster. Yields 7-5/8" Swivel Radius
  • Load Height Option: 13-1/2" LH for 12" Caster. Yields 9-1/8" Swivel Radius
  • Brakes:Tread Lock available on all swivel models except V-Groove
  • Hand Acivated Swivel Lock: Available on all Swivel models as bolt-on
  • NSF Listed: By special order
Wheel Diameter Optional Bearings Thread With Capacity Wheel Description Load Height Swivel Radius Weight Swivel Top Plate Rigid Top Plate
6" Delrin- Roller 2-1/2" 1600 Phenolic 7-1/2 4-3/4 13-1/2 7.06689.369 7.06688.369
6" Delrin- Roller 2-1/2" 2500 Cast Iron 7-1/2 4-3/4 20 7.06689.169 7.06688.169
6" Delrin- Roller 2-1/2" 2500 V-Groove 7-1/2 4-3/4 24 7.06689.769 7.06688.769
6" Delrin- Roller 2-1/2" 4000 Forged Steel 7-1/2 4-3/4 24 7.06689.269 7.06688.269
6" Delrin- Roller 3" 680 Moldon Rubber Ironcore 7-1/2 4-3/4 17 7.06689.679.7 7.06688.679.7
6" Delrin- Roller 3" 2000 Phenolic 7-1/2 4-3/4 14-1/4 7.06689.379 7.06688.379
6" Delrin- Roller 3" 2040 Moldon Polyurethane Ironcore 7-1/2 4-3/4 19-1/4 7.06689.979.7 7.06688.979.7
6" Delrin- Roller 3" 6000 V-Groove 7-1/2 4-3/4 21-1/4 7.06689.789 7.06688.788
8" Delrin- Roller 2-1/2" 2000 Phenolic 10-1/2 6-5/8 15-1/2 7.08689.369 7.08688.369
8" Delrin- Roller 3" 840 Moldon Rubber Ironcore 10-1/2 6-5/8 24-3/34 7.08689.679.7 7.08688.679.7
8" Delrin- Roller 3" 2500 Phenolic 10-1/2 6-5/8 16-1/2 7.08689.379 7.08688.379
8" Delrin- Roller 3" 2500 Moldon Polyurethane Ironcore 10-1/2 6-5/8 27-3/4 7.08689.979.7 7.08688.979.7
8" Delrin- Roller 3" 2500 Cast Iron 10-1/2 6-5/8 27-3/4 7.08689.179 7.08688.179
8" Delrin- Roller 3" 2500 V-Groove 10-1/2 6-5/8 31-1/4 7.08689.779 7.08688.779
8" Delrin- Roller 3" 4500 Forged Steel 10-1/2 6-5/8 31-1/4 7.08689.279 7.08688.279
10" Delrin- Roller 2-1/2" 1000 Performa Rubber (Flat Black) 12-1/2 8-1/8 18-1/4 7.01068.459.2 7.01068.459.2
10" Delrin- Roller 2-1/2" 1200 Polyurethane HI-TECH 12-1/2 8-1/8 18-1/4 7.10689.959 7.10688.959
10" Delrin- Roller 2-1/2" 2500 Phenolic 12-1/2 8-1/8 19-1/2 7.10689.369 7.10688.369
10" Delrin- Roller 3" 100 Moldon Rubber Ironcore 12-1/2 8-1/8 25-1/4 7.10689.679.7 7.10688.679.7
10" Delrin- Roller 3" 2900 Phenolic 12-1/2 8-1/8 19-1/2 7.10689.379 7.10688.379
10" Delrin- Roller 3" 3000 Moldon Polyurethane Ironcore 12-1/2 8-1/8 31-1/2 7.10689.979.7 7.10688.979.7
10" Delrin- Roller 3" 3000 Cast Iron 12-1/2 8-1/8 31-1/2 7.10689.179 7.10688.179
10" Delrin- Roller 3" 4500 Forged Steel 12-1/2 8-1/8 31-1/2 7.10689.279 7.10688.279
12" Delrin- Roller 3" 1140 Moldon Rubber Ironcore 15-1/2 10-1/8 28-3/4 7.12689.679.7 7.12688.679.7
12" Delrin- Roller 3" 1700 Performa Rubber (Flat Black) 15-1/2 10-1/8 22-1/4 7.12689.459.2 7.12688.459.2
12" Delrin- Roller 3" 1700 Polyurethane HI-TECH 15-1/2 10-1/8 22-1/4 7.12689.959 7.12688.959
12" Delrin- Roller 3" 3000 Cast Iron 15-1/2 10-1/8 35-3/4 7.12689.179 7.12688.179
12" Delrin- Roller 3" 3500 Phenolic 15-1/2 10-1/8 24-3/4 7.12689.379 7.12688.379
12" Delrin- Roller 3" 3500 Moldon Polyurethane Ironcore 15-1/2 10-1/8 40 7.12689.179 7.12688.179

Brake Options

Tread Lock

Available on all 2" swivel models except V-Groove

Wheel Selection

Performa Flat Tread Black
Moldon Rubber Iron Core
Polyurethane Hi-Tech
Polyurethane on Iron Core
Phenolic
Forged Steel
Cast Iron
V-Groove Cast Iron
