Stainless Steel Swivel and Rigid Casters

    Features

  • Polished stainless steel (Grade 304)
  • Full double ball hardened raceways for better performance and greater durability
  • 1/2" stainless steel hollow axle with grease zerk, nut and lockwasher
  • Plastic seal/retaining washer (roller bearing models)
  • Permanent rivet kingpin with 5/8" diameter rivet
  • Grease fittings at wheel bearing and swivel raceway
  • Colson 45 multi-temp grease lubricates in extreme hot and cold temperatures

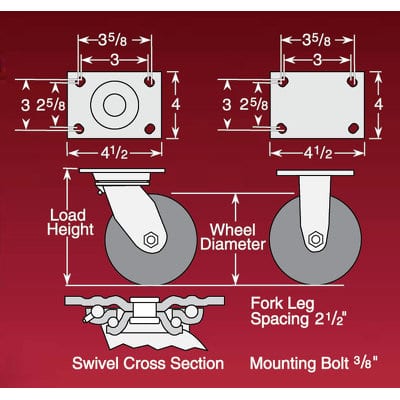

    Standard Mounting

  • 1/4" stainless steel Top Plate, 4" x 4-1/2" overall with 2-5/8 x 3-5/8" bolt holes slotted to 3" x 3". For 3/8" bolt.

    Options

  • Brakes:Tech Lock, Side Lock, and Top Lock are available on all swivels, some as special order
  • Thread Guards: Plastic TG2 Available on many models
  • DirtBan Swivel Seals: Not Available on Swivel Lock models
  • Foot Acivated Swivel Lock: Special order.
  • DirtBan Swivel Seals: Not Available on Swivel Lock models
  • Grease: No Grease (GRF1), Double Grease (GRF2), and 300° Grease (GRF3) all available as special order
  • NSF Listed: By special order. All models except thread guards
Wheel Diameter Optional Bearings Thread With Capacity Wheel Description Load Height Swivel Radius Weight Swivel Top Plate Rigid Top Plate
4" PPBB 2" 300 Performa Rubber (Conductive Flat) 5-5/8 3-9/16 5-3/4 4.04109.459SS 4.04108.459SS
4" Delrin- PPBB- Prec Ball 2" 400 Performa Rubber (Flat Black) 5-5/8 3-9/16 5-3/4 4.04109.459SS 4.04108.459SS
4" Delrin- PPBB- Prec Ball 2" 400 Performa Rubber (Flat Grey) 5-5/8 3-9/16 5-3/4 4.04109.459SS 4.04108.459SS
4" Delrin- PPBB 2" 400 Transforma LT (Flat) 5-5/8 3-9/16 5-3/4 4.04109.4B9SS 4.04108.4B9SS
4" Delrin- PPBB 2" 400 Transforma (Flat) 5-5/8 3-9/16 5-3/4 4.04109.4E9SS 4.04108.4E9SS
4" Delrin- Plain- PPBB 2" 500 Polyolefin 5-5/8 3-9/16 4-1/2 4.04109.839SS 4.04108.839SS
4" Delrin- PPBB 2" 600 Transforma HD (Flat) 5-5/8 3-9/16 5-3/4 4.04109.4F9SS 4.04108.4F9SS
4" Delrin- PPBB 2" 600 Polyurethane HI-TECH 5-5/8 3-9/16 4-3/4 4.04109.929SS 4.04108.929SS
4" Delrin- PPBB 2" 700 Moldon Polyurethane Aluminumcore 5-5/8 3-9/16 5-1/4 4.04109.939SS 4.04108.939SS
4" Delrin- Bronze- PPBB 2" 800 Maxim 5-5/8 3-9/16 4-1/8 4.04109.539SS 4.04108.539SS
4" Delrin- PPBB 2" 800 Phenolic 5-5/8 3-9/16 5-3/4 4.04109.339SS 4.04108.339SS
4" Plain- Bronze 2" 800 Thermo High Temp 5-5/8 3-9/16 6-3/4 4.04109.839SS 4.04108.839SS
4" Delrin- Prec Ball- PPBB 2" 1000 Endura Solid Elastomer 5-5/8 3-9/16 5-3/4 4.04109.839SS 4.04108.839SS
5" PPBB 2" 325 Performa Rubber (Conductive Flat) 6-1/2 4-1/4 6-1/8 4.05109.459SS 4.05108.459SS
5" Delrin- PPBB 2" 450 Transforma LT (Flat) 6-1/2 4-1/4 6-1/8 4.05109.4B9SS 4.05108.4B9SS
5" Delrin- PPBB- Prec Ball 2" 500 Performa Rubber (Flat Black) 6-1/2 4-1/4 6-1/8 4.05109.459SS 4.05108.459SS
5" Delrin- PPBB- Prec Ball 2" 500 Performa Rubber (Flat Grey) 6-1/2 4-1/4 6-1/8 4.05109.459SS 4.05108.459SS
5" Delrin- PPBB 2" 500 Transforma (Flat) 6-1/2 4-1/4 6-1/8 4.05109.4E9SS 4.05108.4E9SS
5" Delrin- Plain- PPBB 2" 650 Polyolefin 6-1/2 4-1/4 4-7/8 4.05109.839SS 4.05108.839SS
5" Delrin- PPBB 2" 750 Transforma HD (Flat) 6-1/2 4-1/4 6-1/8 4.05109.4F9SS 4.05108.4F9SS
5" Delrin- PPBB 2" 750 Polyurethane HI-TECH 6-1/2 4-1/4 4-3/4 4.05109.929SS 4.05108.929SS
5" Delrin- Bronze- PPBB 2" 1000 Maxim 6-1/2 4-1/4 4-1/2 4.05109.539SS 4.05108.539SS
5" Delrin- Prec Ball- PPBB 2" 1000 Endura Solid Elastomer 6-1/2 4-1/4 5-3/4 4.05109.839SS 4.05108.839SS
5" Delrin- PPBB 2" 1000 Moldon Polyurethane Aluminumcore 6-1/2 4-1/4 6-1/8 4.05109.939SS 4.05108.939SS
5" Delrin- PPBB 2" 1000 Moldon Nylon 6-1/2 4-1/4 9-1/4 4.05109.939SS 4.05108.939SS
5" Delrin- PPBB 2" 1000 Phenolic 6-1/2 4-1/4 5-3/4 4.05109.339SS 4.05108.339SS
5" Plain- Bronze 2" 1000 Thermo High Temp 6-1/2 4-1/4 6-3/4 4.05109.839SS 4.05108.839SS
6" Delrin- PPBB 2" 400 Transforma LT (Round) 7-1/2 5 6-1/8 4.06109.-B9SS 4.06108.-B9SS
6" PPBB 2" 410 Performa Rubber (Conductive Flat) 7-1/2 5 6-1/8 4.06109.459SS 4.06108.459SS
6" PPBB 2" 410 Performa Rubber (Conductive Round) 7-1/2 5 6-1/8 4.06109.559SS 4.06108.559SS
6" Delrin- PPBB- Prec Ball 2" 450 Performa Rubber (Round) 7-1/2 5 6-1/8 4.06109.559SS 4.06108.559SS
6" Delrin- PPBB 2" 450 Transforma (Round) 7-1/2 5 6-1/8 4.06109.-E9SS 4.06108.-E9SS
6" Delrin- PPBB 2" 500 Transforma LT (Flat) 7-1/2 5 6-1/8 4.06109.4B9SS 4.06108.4B9SS
6" Delrin- PPBB- Prec Ball 2" 600 Performa Rubber (Flat Black) 7-1/2 5 6-1/8 4.06109.459SS 4.06108.459SS
6" Delrin- PPBB- Prec Ball 2" 600 Performa Rubber (Flat Grey) 7-1/2 5 6-1/8 4.06109.459SS 4.06108.459SS
6" Delrin- PPBB 2" 500 Transforma HD (Round) 7-1/2 5 6-1/8 4.06109.-F9SS 4.06108.-F9SS
6" Delrin- Plain- PPBB 2" 700 Polyolefin 7-1/2 5 5-1/2 4.06109.839SS 4.06108.839SS
6" Delrin- PPBB 2" 900 Polyurethane HI-TECH 7-1/2 5 5 4.06109.929SS 4.06108.929SS
6" Delrin- PPBB 2" 900 Transforma HD (Flat) 7-1/2 5 6-1/8 4.06109.4F9SS 4.06108.4F9SS
6" Plain- Bronze 2" 1100 Thermo High Temp 7-1/2 5 7-1/2 4.06109.839SS 4.06108.839SS
6" Delrin- Prec Ball- PPBB 2" 1100 Endura Solid Elastomer 7-1/2 5 7 4.06109.839SS 4.06108.839SS
6" Delrin- Bronze- PPBB 2" 1200 Maxim 7-1/2 5 4-3/4 4.06109.539SS 4.06108.539SS
6" Delrin- PPBB 2" 1200 Moldon Polyurethane Aluminumcore 7-1/2 5 7-1/2 4.06109.939SS 4.06108.939SS
6" Delrin- PPBB 2" 1200 Moldon Nylon 7-1/2 5 9-1/4 4.06109.939SS 4.06108.939SS
6" Delrin- PPBB 2" 1200 Phenolic 7-1/2 5 6 4.06109.339SS 4.06108.339SS
8" PPBB 2" 500 Performa Rubber (Conductive Flat) 9-1/2 6-1/2 6-1/4 4.08199.459SS 4.08198.459SS
8" PPBB 2" 500 Performa Rubber (Conductive Round) 9-1/2 6-1/2 6-1/4 4.08199.559SS 4.08198.559SS
8" Delrin- PPBB- Prec Ball 2" 600 Performa Rubber (Round Grey) 9-1/2 6-1/2 6-1/4 4.08199.559SS 4.08198.559SS
8" Delrin- PPBB- Prec Ball 2" 675 Performa Rubber (Flat Black) 9-1/2 6-1/2 6-1/4 4.08199.459SS 4.08198.459SS
8" Delrin- PPBB- Prec Ball 2" 675 Performa Rubber (Flat Grey) 9-1/2 6-1/2 6-1/4 4.08199.459SS 4.08198.459SS
8" Delrin- Plain- PPBB 2" 900 Polyolefin 9-1/2 6-1/2 5-3/4 4.08199.839SS 4.08198.839SS
8" Delrin- PPBB 2" 1000 Polyurethane HI-TECH 9-1/2 6-1/2 5-3/4 4.08199.929SS 4.08198.929SS
8" Delrin- Prec Ball- PPBB 2" 1200 Endura Solid Elastomer 9-1/2 6-1/2 5-3/4 4.08199.839SS 4.08198.839SS
8" Plain- Bronze 2" 1100 Thermo High Temp 9-1/2 6-1/2 5-1/2 4.08199.839SS 4.08198.839SS
8" Delrin- Bronze- PPBB 2" 1250 Maxim 9-1/2 6-1/2 8-1/4 4.08199.539SS 4.08198.539SS
8" Delrin- PPBB 2" 1250 Moldon Polyurethane Aluminumcore 9-1/2 6-1/2 13-1/4 4.08199.939SS 4.08198.939SS
8" Delrin- PPBB 2" 1250 Moldon Nylon 9-1/2 6-1/2 9-1/4 4.08199.939SS 4.08198.939SS
8" Delrin- PPBB 2" 1250 Phenolic 9-1/2 6-1/2 6-3/4 4.08199.339SS 4.08198.339SS

Brake Options

Top Lock

Available on all swivel models as special order

Tech Lock

Available on all swivel models

Side Lock

Available on all swivel models as special order

Wheel Selection

Performa Flat Tread Black
Performa Flat Tread Grey
Performa Round Tread Grey
Performa Conductive Flat Tread
Performa Round Tread Conductive
Polyolefin
Trans-forma Flat and Round
Trans-forma HD Flat and Round
Trans-forma LT Flat and Round
Polyurethane Hi-Tech
Polyurethane on Aluminum Core
Phenolic
Thermo High Temp
Maxim
Endura
Moldon Nylon Aluminum Core
