Stem Casters

    Features

  • Zinc plated finish is attractive and durable
  • Full double ball hardened raceways for better performance and greater durability
  • 3/8" hollow axle with lock nut
  • Flush lube grease hole at wheel bearing for greater convenience
  • Permanent rivet kingpin construction
  • Reinforcing washer on upper and lower raceway
  • Colson 45 multi-temp grease lubricates in extreme hot and cold temperatures

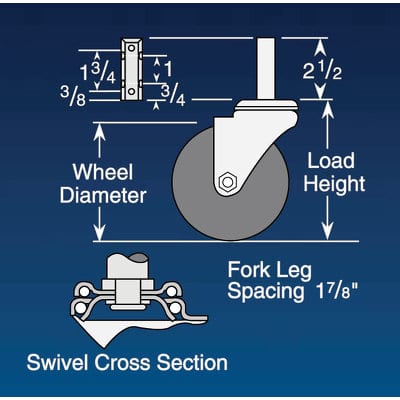

    Standard Mounting

  • MTG 31: 7/8" square x 2-1/2" long with four mounting holes 17/64" dia.

    Options

  • MTG 7: 3/4" round x 2-1/2" long no mounting hole
  • MTG 9: 7/8" round x 2-1/2" long no mounting hole
  • MTG 7: 1" round x 2-1/2" long no mounting hole
  • Brakes:Side Lock is field installable
  • Thread Guards: Available on many models
  • Dust Cap: Keeps dust and debris out of the raceway for smoother operation and longer service life
  • Zerk Axle: Grease fitting at cap of axle instead of hollow point. Not available with Top Lock Brake
  • Grease: No Grease (GRF1), Double Grease (GRF2), and 300° Grease (GRF3) all available as special order
  • NSF Listed: By special order. All models except thread guards
Wheel Diameter Roller Bearing Models Optional Bearings Thread With Capacity Wheel Description Load Height Swivel Radius Weight Swivel Top Plate
3" I4-441-3C Delrin- PPBB 1-1/2" 250 Performa Rubber (Flat Grey) 4-5/16 3-1/8 2-1/2 3.00314.449
3" I0-841-3C Delrin- PPBB 1-1/2" 300 Polyolefin 4-5/16 3-1/8 2-1/2 3.00314.809
3" I0-941-3C Delrin- PPBB 1-1/2" 300 Polyurethane HI-TECH 4-5/16 3-1/8 2-1/2 3.00314.909
3" I0-341-3C Delrin- PPBB 1-1/2" 400 Phenolic 4-5/16 3-1/8 2-1/2 3.00314.309
3" I0-141-3C Delrin- PPBB- Bronze 1-1/2" 400 Cast Iron 4-5/16 3-1/8 3-3/4 3.00314.109
3" THGI1-841-3C Plain- Bronze 1-1/2" 600 Thermo High Temp 4-5/16 3-1/8 2-1/2 3.00314.809
4" 4I4-441-4C PPBB 1-1/2" 255 Performa Rubber (Conductive Flat) 5-3/16 3-5/8 2-2/3 3.00414.449(COND)
4" I4-441-4C Delrin- PPBB 1-1/2" 325 Performa Rubber (Flat Grey) 5-3/16 3-5/8 2-2/3 3.00414.449
4" I0-841-4C Delrin- PPBB 1-1/2" 375 Polyolefin 5-3/16 3-5/8 2-3/4 3.00414.809
4" I0-541-4C Delrin- PPBB- Bronze 1-1/2" 400 Maxim 5-3/16 3-5/8 2-3/4 3.00414.509
4" I0-941-4C Delrin- PPBB 1-1/2" 400 Polyurethane HI-TECH 5-3/16 3-5/8 2-3/4 3.00414.909
4" I0-341-4C Delrin- PPBB 1-1/2" 400 Phenolic 5-3/16 3-5/8 2-3/4 3.00414.309
4" I0-141-4C Delrin- PPBB- Bronze 1-1/2" 400 Cast Iron 5-3/16 3-5/8 4 3.00414.109
4" THGI1-841-3C Plain- Bronze 1-1/2" 700 Thermo High Temp 5-3/16 3-5/8 2-3/4 3.00314.809
5" 4I4-441-5C PPBB 1-1/2" 280 Performa Rubber (Conductive Flat) 5-3/16 3-7/8 3 3.00514.449(COND)
5" I4-441-5C Delrin- PPBB 1-1/2" 350 Performa Rubber (Flat Grey) 5-3/16 3-7/8 3 3.00514.449
5" I0-841-5C Delrin- PPBB 1-1/2" 400 Polyolefin 5-3/16 3-7/8 3 3.00514.809
5" I0-941-5C Delrin- PPBB 1-1/2" 400 Polyurethane HI-TECH 5-3/16 3-7/8 3 3.00514.909
5" I0-341-5C Delrin- PPBB 1-1/2" 400 Phenolic 5-3/16 3-7/8 3 3.00514.309
5" I0-141-5C Delrin- PPBB- Bronze 1-1/2" 400 Cast Iron 5-3/16 3-7/8 4-1/2 3.00514.109
5" THGI1-841-5C Plain- Bronze 1-1/2" 800 Thermo High Temp 5-3/16 3-7/8 3 3.00514.809
6" 4I4-441-6C PPBB 1-1/2" 300 Performa Rubber (Conductive Flat) 7-3/16 4-5/8 2-2/3 3.00614.449(COND)
6" I4-441-6C Delrin- PPBB 1-1/2" 375 Performa Rubber (Flat Grey) 7-3/16 4-5/8 2-2/3 3.00614.449
6" I0-841-6C Delrin- PPBB 1-1/2" 400 Polyolefin 7-3/16 4-5/8 2-3/4 3.00614.809
6" I0-941-6C Delrin- PPBB 1-1/2" 400 Polyurethane HI-TECH 7-3/16 4-5/8 2-3/4 3.00614.909
6" I0-341-6C Delrin- PPBB 1-1/2" 400 Phenolic 7-3/16 4-5/8 2-3/4 3.00614.309
6" I0-141-6C Delrin- PPBB- Bronze 1-1/2" 400 Cast Iron 7-3/16 4-5/8 4 3.00614.109

Brake Options

Side Lock

Available on all models

Wheel Selection

Performa Flat Tread
Performa Conductive Flat
Polyolefin
Thermo High Temp
Polyurethane Hi-Tech
Cast Iron
Maxim
Phenolic
