Plate Casters

    Features

  • Zinc plated finish is attractive and durable
  • Full double ball hardened raceways for better performance and greater durability
  • 3/8" hollow axle with lock nut
  • Flush lube grease hole at wheel bearing for greater convenience
  • Permanent rivet kingpin construction
  • Reinforcing washer on upper and lower raceway
  • Colson 45 multi-temp grease lubricates in extreme hot and cold temperatures

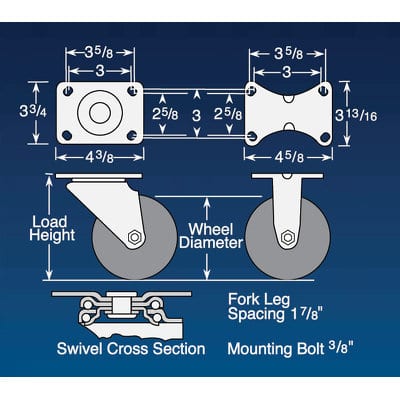

    Standard Mounting

  • .164 Steel Top Plate. 3-3/4" x 4-3/8" overall with 2-5/8 x 3-5/8 bolt holes slotted to 3 x 3. For 3/8" bolt.

    Options

  • Brakes:Side Lock is field installable
  • Thread Guards: Available on many models
  • Dust Cap: Keeps dust and debris out of the raceway for smoother operation and longer service life
  • Zerk Axle: Grease fitting at cap of axle instead of hollow point. Not available with Top Lock Brake
  • Grease: No Grease (GRF1), Double Grease (GRF2), and 300° Grease (GRF3) all available as special order
  • NSF Listed: By special order. All models except thread guards
Wheel Diameter Optional Bearings Thread With Capacity Wheel Description Load Height Swivel Radius Weight Swivel Top Plate Rigid Top Plate
3" Delrin- PPBB 1-1/2" 250 Performa Rubber (Flat Grey) 4-5/16 3-1/8 2-1/2 3.00317.449 3.00308.449
3" Delrin- PPBB 1-1/2" 300 Polyolefin 4-5/16 3-1/8 2-1/2 3.00317.809 3.00308.809
3" Delrin- PPBB 1-1/2" 300 Polyurethane HI-TECH 4-5/16 3-1/8 2-1/2 3.00317.909 3.00308.909
3" Delrin- PPBB 1-1/2" 400 Phenolic 4-5/16 3-1/8 2-1/2 3.00317.309 3.00308.309
3" Delrin- PPBB- Bronze 1-1/2" 400 Cast Iron 4-5/16 3-1/8 3-3/4 3.00317.109 3.00308.109
3" Plain- Bronze 1-1/2" 600 Thermo High Temp 4-5/16 3-1/8 2-1/2 3.00317.809 3.00308.809
4" PPBB 1-1/2" 255 Performa Rubber (Conductive Flat) 5-3/16 3-5/8 2-2/3 3.00417.449(COND) 3.00408.449(COND)
4" Delrin- PPBB 1-1/2" 325 Performa Rubber (Flat Grey) 5-3/16 3-5/8 2-2/3 3.00417.449 3.00408.449
4" Delrin- PPBB 1-1/2" 375 Polyolefin 5-3/16 3-5/8 2-3/4 3.00417.809 3.00408.809
4" Delrin- PPBB- Bronze 1-1/2" 400 Maxim 5-3/16 3-5/8 2-3/4 3.00417.509 3.00408.509
4" Delrin- PPBB 1-1/2" 400 Polyurethane HI-TECH 5-3/16 3-5/8 2-3/4 3.00417.909 3.00408.909
4" Delrin- PPBB 1-1/2" 400 Phenolic 5-3/16 3-5/8 2-3/4 3.00417.309 3.00408.309
4" Delrin- PPBB- Bronze 1-1/2" 400 Cast Iron 5-3/16 3-5/8 4 3.00417.109 3.00408.109
4" Plain- Bronze 1-1/2" 700 Thermo High Temp 5-3/16 3-5/8 2-3/4 3.00317.809 3.00308.809
5" PPBB 1-1/2" 280 Performa Rubber (Conductive Flat) 5-3/16 3-7/8 3 3.00517.449(COND) 3.00508.449(COND)
5" Delrin- PPBB 1-1/2" 350 Performa Rubber (Flat Grey) 5-3/16 3-7/8 3 3.00517.449 3.00508.449
5" Delrin- PPBB 1-1/2" 400 Polyolefin 5-3/16 3-7/8 3 3.00517.809 3.00508.809
5" Delrin- PPBB 1-1/2" 400 Polyurethane HI-TECH 5-3/16 3-7/8 3 3.00517.909 3.00508.909
5" Delrin- PPBB 1-1/2" 400 Phenolic 5-3/16 3-7/8 3 3.00517.309 3.00508.309
5" Delrin- PPBB- Bronze 1-1/2" 400 Cast Iron 5-3/16 3-7/8 4-1/2 3.00517.109 3.00508.109
5" Plain- Bronze 1-1/2" 800 Thermo High Temp 5-3/16 3-7/8 3 3.00517.809 3.00508.809
6" PPBB 1-1/2" 300 Performa Rubber (Conductive Flat) 7-3/16 4-5/8 2-2/3 3.00617.449(COND) 3.00608.449(COND)
6" Delrin- PPBB 1-1/2" 375 Performa Rubber (Flat Grey) 7-3/16 4-5/8 2-2/3 3.00617.449 3.00608.449
6" Delrin- PPBB 1-1/2" 400 Polyolefin 7-3/16 4-5/8 2-3/4 3.00617.809 3.00608.809
6" Delrin- PPBB 1-1/2" 400 Polyurethane HI-TECH 7-3/16 4-5/8 2-3/4 3.00617.909 3.00608.909
6" Delrin- PPBB 1-1/2" 400 Phenolic 7-3/16 4-5/8 2-3/4 3.00617.309 3.00608.309
6" Delrin- PPBB- Bronze 1-1/2" 400 Cast Iron 7-3/16 4-5/8 4 3.00617.109 3.00608.109

Brake Options

Side Lock

Available on all models

Wheel Selection

Performa Flat Tread
Performa Conductive Flat
Polyolefin
Thermo High Temp
Polyurethane Hi-Tech
Cast Iron
Maxim
Phenolic
