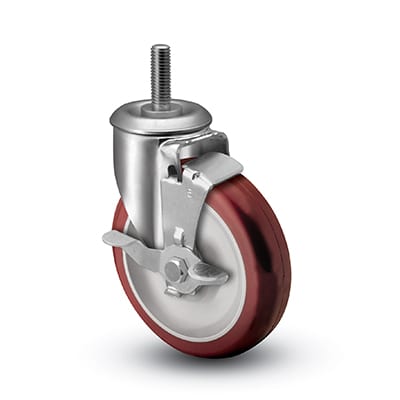

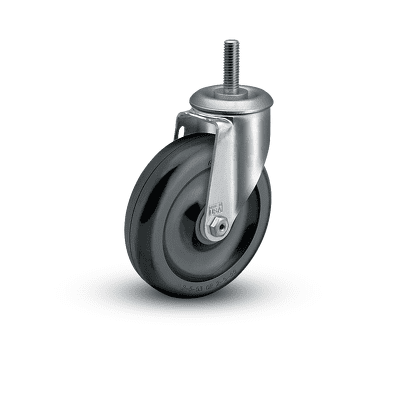

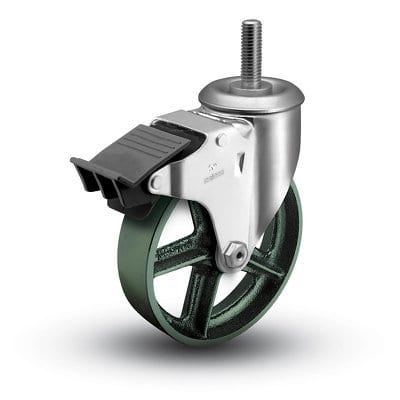

Colson 2 Series Threaded Stem Casters
| Wheel Diameter | Thread With | Capacity | Wheel Description | Stem Casters | Load Height | Swivel Radius | Weight | Bearing Type | Swivel Top Plate |
|---|---|---|---|---|---|---|---|---|---|
| 2-1/2" | 1-1/4" | 125 | Performa Rubber (Conductive Flat) | 4E444522B | 3-3/4 | 2-13/32 | 1-3/4 | Ball | 2.02254.445(COND) |
| 2-1/2" | 1-1/4" | 140 | Performa Rubber (Flat) | A444522B | 3-3/4 | 2-13/32 | 1-3/4 | Delrin | 2.02254.441 |
| 2-1/2" | 1-1/4" | 140 | Performa Rubber (Flat) | E444522B | 3-3/4 | 2-13/32 | 1-3/4 | Ball | 2.02254.445 |
| 2-1/2" | 1-1/4" | 200 | Polyolefin | C54522B | 3-3/4 | 2-13/32 | 1-3/4 | Delrin | 2.02254.53 |
| 2-1/2" | 1-1/4" | 200 | Polyolefin | E54522B | 3-3/4 | 2-13/32 | 1-3/4 | Ball | 2.02254.55 |
| 2-1/2" | 1-1/4" | 250 | Polyurethane HI-TECH | A94522B | 3-3/4 | 2-13/32 | 1-1/2 | Delrin | 2.02254.91 |
| 2-1/2" | 1-1/4" | 250 | Polyurethane HI-TECH | E94522B | 3-3/4 | 2-13/32 | 1-1/2 | Ball | 2.02254.95 |
| 2-1/2" | 1-1/4" | 300 | Cast Iron | B14522B | 3-3/4 | 2-13/32 | 2-1/8 | Sleeve | 2.02254.12 |
| 2-1/2" | 1-7/16" | 300 | Phenolic | I134522B | 3-3/4 | 2-13/32 | 1-3/4 | Roller | 2.02254.319 |
| 3" | 1-1/4" | 150 | Rubber HI-TECH | B44533B | 4 | 2-21/32 | 2 | Plain | 2.03354.42 |
| 3" | 1-1/4" | 200 | Polyurethane HI-TECH | B94533B | 4 | 2-21/32 | 2 | Plain | 2.03354.92 |
| 3" | 1-1/4" | 200 | Polyolefin | B54533B | 4 | 2-21/32 | 2 | Delrin | 2.03354.52 |
| 3" | 1-15/32" | 300 | Phenolic | I134533B | 4 | 2-21/32 | 2-3/4 | Roller | 2.03354.319 |
| 3-1/2" | 1-5/16" | 210 | Performa Rubber (Conductive/Round) | 4E654523B | 4-9/16 | 2-29/32 | 2-1/4 | Ball | 2.03254.565(COND) |
| 3-1/2" | 1-5/16" | 210 | Performa Rubber (Round) | A654523B | 4-9/16 | 2-29/32 | 2-1/4 | Delrin | 2.03254.561 |
| 3-1/2" | 1-5/16" | 210 | Performa Rubber (Round) | E654523B | 4-9/16 | 2-29/32 | 2-1/4 | Ball | 2.03254.565 |
| 3-1/2" | 1-1/4" | 225 | Performa Rubber (Conductive Flat) | 4E444523B | 4-9/16 | 2-29/32 | 2-1/4 | Ball | 2.03254.445(COND) |
| 3-1/2" | 1-1/4" | 230 | Polyolefin | C54523B | 4-9/16 | 2-29/32 | 2-1/8 | Delrin | 2.03254.53 |
| 3-1/2" | 1-1/4" | 230 | Polyolefin | E54523B | 4-9/16 | 2-29/32 | 2-1/8 | Ball | 2.03254.55 |
| 3-1/2" | 1-1/4" | 250 | Performa Rubber (Flat) | A444523B | 4-9/16 | 2-29/32 | 2-1/8 | Delrin | 2.03254.441 |
| 3-1/2" | 1-1/4" | 250 | Performa Rubber (Flat) | E444523B | 4-9/16 | 2-29/32 | 2-1/8 | Ball | 2.03254.445 |
| 3-1/2" | 1-1/4" | 250 | Polyurethane HI-TECH | A94523B | 4-9/16 | 2-29/32 | 1-3/4 | Delrin | 2.03254.91 |
| 3-1/2" | 1-1/4" | 250 | Polyurethane HI-TECH | E94523B | 4-9/16 | 2-29/32 | 1-3/4 | Ball | 2.03254.95 |
| 3-1/2" | 1-1/4" | 300 | Thermo High Temp | THGB54522B | 4-9/16 | 2-29/32 | 3-1/8 | Plain | 2.02254.52(HT) |
| 3-1/2" | 1-1/4" | 300 | Cast Iron | B14523B | 4-9/16 | 2-29/32 | 3 | Sleeve | 2.03254.12 |
| 4" | 1-1/4" | 250 | ThermoTech Cushion High Temp | 8C164524B | 5 | 3-7/32 | 3 | Teflon | 2.04254.613 |
| 4" | 1-1/4" | 250 | Performa Rubber (Conductive Flat) | 4E444524B | 5 | 3-7/32 | 2-1/4 | Ball | 2.04254.445(COND) |
| 4" | 1-1/4" | 275 | Polyolefin | C54524B | 5 | 3-7/32 | 2-1/4 | Delrin | 2.04254.53 |
| 4" | 1-1/4" | 275 | Polyolefin | E54524B | 5 | 3-7/32 | 2-1/4 | Ball | 2.04254.55 |
| 4" | 1-1/4" | 275 | Polyurethane HI-TECH | A94524B | 5 | 3-7/32 | 2 | Delrin | 2.04254.91 |
| 4" | 1-1/4" | 275 | Polyurethane HI-TECH | E94524B | 5 | 3-7/32 | 2 | Ball | 2.04254.95 |
| 4" | 1-1/4" | 300 | Performa Rubber (Flat) | A444524B | 5 | 3-7/32 | 2-1/4 | Delrin | 2.04254.441 |
| 4" | 1-1/4" | 300 | Performa Rubber (Flat) | E444524B | 5 | 3-7/32 | 2-1/4 | Ball | 2.04254.445 |
| 4" | 1-1/4" | 300 | Thermo High Temp | THGB54524B | 5 | 3-7/32 | 3-1/4 | Plain | 2.04254.52(HT) |
| 4" | 1-1/4" | 300 | Cast Iron | B14524B | 5 | 3-7/32 | 3-1/2 | Sleeve | 2.04254.12 |
| 5" | 1-1/4" | 250 | ThermoTech Cushion High Temp | 8C164525B | 6-1/16 | 3-13/16 | 3 | Teflon | 2.05254.613 |
| 5" | 1-1/4" | 250 | Performa Rubber (Conductive Flat) | 4E444525B | 6-1/16 | 3-13/16 | 3 | Ball | 2.05254.445(COND) |
| 5" | 1-5/16" | 250 | Performa Rubber (Conductive/Round) | 4E654525B | 6-1/16 | 3-13/16 | 3 | Ball | 2.05254.565(COND) |
| 5" | 1-5/16" | 250 | Performa Rubber (Round) | A654525B | 6-1/16 | 3-13/16 | 3 | Delrin | 2.05254.561 |
| 5" | 1-1/4" | 250 | Performa Rubber (Round) | E654525B | 6-1/16 | 3-13/16 | 3 | Ball | 2.05254.565 |
| 5" | 1-1/4" | 300 | Polyolefin | C54525B | 6-1/16 | 3-13/16 | 2-3/4 | Delrin | 2.05254.53 |
| 5" | 1-1/4" | 300 | Polyolefin | E54525B | 6-1/16 | 3-13/16 | 2-3/4 | Ball | 2.05254.55 |
| 5" | 1-1/4" | 300 | Polyurethane HI-TECH | A94525B | 6-1/16 | 3-13/16 | 2-1/2 | Delrin | 2.05254.91 |
| 5" | 1-1/4" | 300 | Polyurethane HI-TECH | E94525B | 6-1/16 | 3-13/16 | 2-1/2 | Ball | 2.05254.95 |
| 5" | 1-1/4" | 300 | Cast Iron | B14525B | 6-1/16 | 3-13/16 | 3-3/4 | Sleeve | 2.05254.12 |
| 5" | 1-1/4" | 325 | Performa Rubber (Flat) | A444525B | 6-1/16 | 3-13/16 | 2-3/4 | Delrin | 2.05254.441 |
| 5" | 1-1/4" | 325 | Performa Rubber (Flat) | E444525B | 6-1/16 | 3-13/16 | 2-3/4 | Ball | 2.05254.445 |
| 5" | 1-1/4" | 325 | Thermo High Temp | THGB54525B | 6-1/16 | 3-13/16 | 3-1/2 | Plain | 2.05254.52(HT) |
