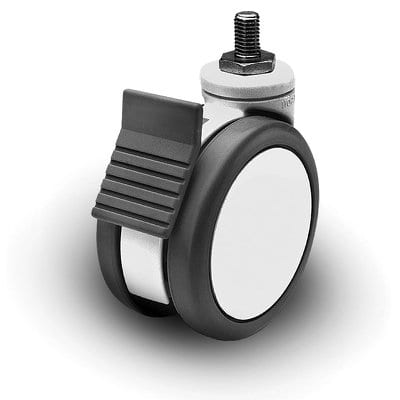

Kick Stop Specialty Medical Casters
- Foot brake easily engaged; mechanically locks both swivel and wheel rotation
- Strong pressure die-cast metal construction for lasting perofrmance and maximum reliability
- Precision axle built to exacting tolerances for smooth operation and extended service life
- Aluminum die-cast body and wheel centers
- Standard finish is white or ball-burnished and lacquered
- Applications include Medical and diagnostic equipment, computer equipment, electronic equipment, and high-tech products
Features
- M10 x 1.5 pitch, 15mm long
- M12 x 1.75 pitch, 20mm long
- M16 x 2.0 pitch, 20mm long
Standard Mounting

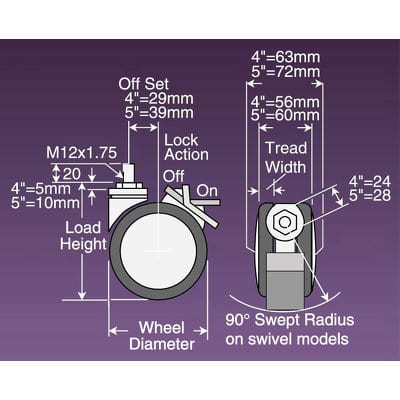

| Wheel Diameter | Kick Stop Brake | Free Swivel | Fitting Type | Approx Wt Ea | Thread With | Capacity | Wheel Description | Load Height | Swivel Radius | Bearing Type |
|---|---|---|---|---|---|---|---|---|---|---|
| 3 (75mm)" | 02.3502.409.064.2001.0805 | 02.3504.409.064.0001.0805 | M10 X 1.5 x 15mm long | .77 lb (.35kg) | 19/32 (15mm)" | 132 (70kg) | Grey Polyurethane | 3-37/64 (91mm)" | 2-9/16 (65mm)" | Roller |
| 3 (75mm)" | 02.3502.409.064.3001.0702 | 02.3504.409.064.0001.0702 | M10 X 1.5 x 15mm long | .77 lb (.35kg) | 19/32 (15mm)" | 132 (70kg) | Black Polyurethane | 3-37/64 (91mm)" | 2-9/16 (65mm)" | Roller |
| 4 (100mm)" | 02.4502.409.007.3001.0402 | 02.4504.409.007.0001.0402 | M12 x 1.75 x 20mm long | 1.78 lbs (.81 kg) | 19/32 (15mm)" | 132 (70kg) | Anti-Static Black Rubber | 4-3/4 (120mm)" | Total Lock 3-9/16 (90mm) Swivel 3-1/8 (79mm) | Roller |
| 4 (100mm)" | 02.4502.409.007.2001.0105 | 02.4504.409.007.0001.0105 | M12 x 1.75 x 20mm long | 1.78 lbs (.81 kg) | 19/32 (15mm)" | 132 (70kg) | Grey Rubber | 4-3/4 (120mm)" | Total Lock 3-9/16 (90mm) Swivel 3-1/8 (79mm) | Roller |
| 4 (100mm)" | 02.4502.401.007.2001.0105 | 02.4504.401.007.2001.0105 | M12 x 1.75 x 20mm long | 1.78 lbs (.81 kg) | 19/32 (15mm)" | 132 (70kg) | Grey Rubber | 4-3/4 (120mm)" | Total Lock 3-9/16 (90mm) Swivel 3-1/8 (79mm) | Delrin |
| 5 (125mm)" | 02.5502.409.017.3001.0402 | 02.5504.409.017.3001.0402 | M16 x 2 x 20mm long | 3 lbs (1.36 kg) | 5/8 (16mm)" | 175 (80kg) | Anti-Static Black Rubber | 5-13/16 (148mm)" | 4-3/16 (106mm)" | Roller |
| 5 (125mm)" | 02.5502.409.017.2001.0105 | 02.5504.409.017.0001.0105 | M16 x 2 x 20mm long | 3 lbs (1.36 kg) | 5/8 (16mm)" | 175 (80kg) | Grey Rubber | 5-13/16 (148mm)" | 4-3/16 (106mm)" | Roller |
| 5 (125mm)" | 02.5502.401.017.2001.0105 | 02.5504.401.017.0001.0105 | M16 x 2 x 20mm long | 3 lbs (1.36 kg) | 5/8 (16mm)" | 175 (80kg) | Grey Rubber | 5-13/16 (148mm)" | 4-3/16 (106mm)" | Delrin |
